Barracuda 7200.9 PATA
ST3500841A
ST3500641A
ST3400833A
ST3400633A
ST3300822A
ST3300622A
ST3250824A
ST3250624A
ST3200827A
ST3160812A
ST3160212A
ST3120814A
ST3120213A
ST3802110A
ST3402111A

Advertisement

Table of Contents
loading

Related Manuals for Seagate ST39175LW - Barracuda 9.1 GB Hard Drive

Summary of Contents for Seagate ST39175LW - Barracuda 9.1 GB Hard Drive

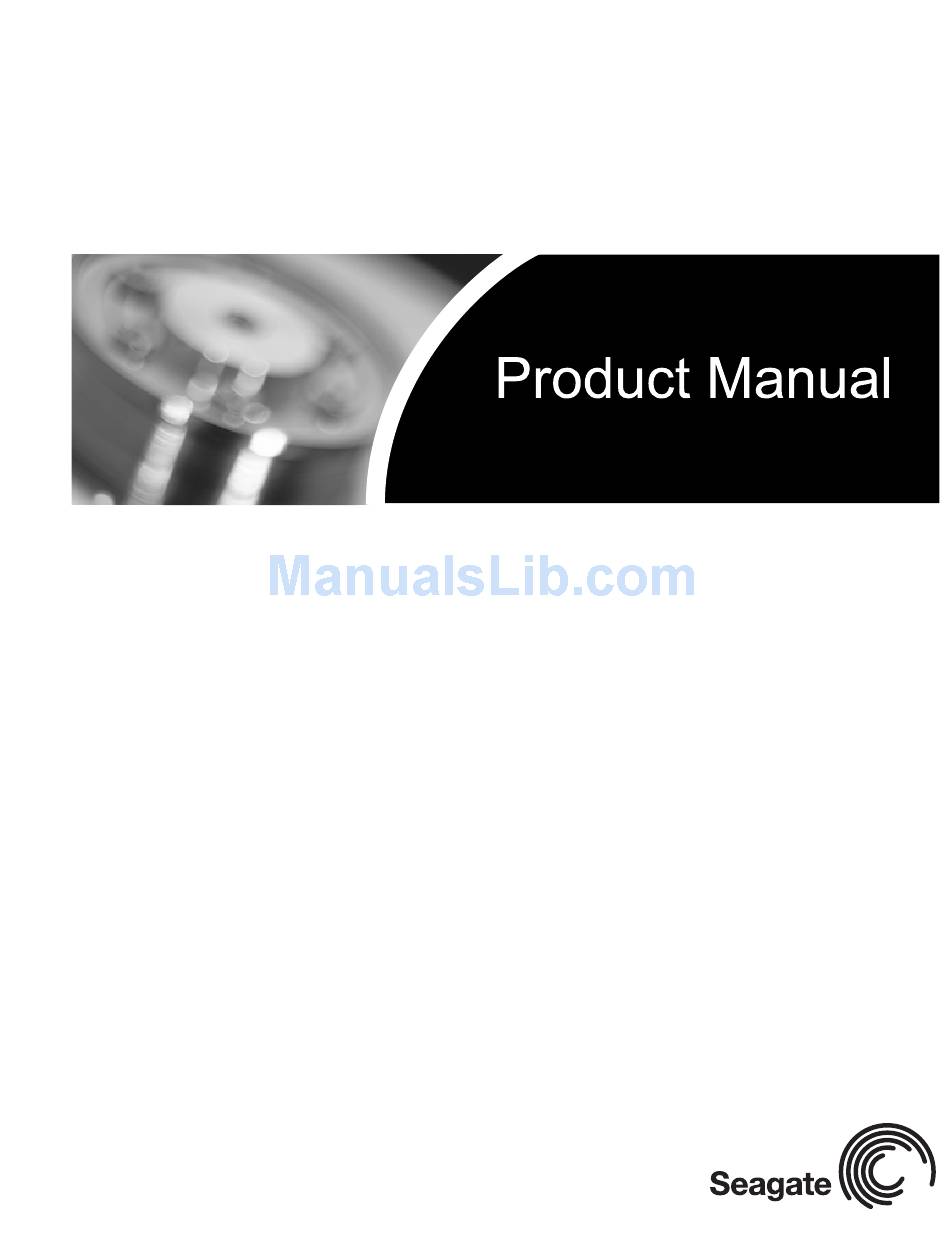

  • Page 1 Barracuda 7200.9 PATA ST3500841A ST3200827A ST3500641A ST3160812A ST3400833A ST3160212A ST3400633A ST3120814A ST3300822A ST3120213A ST3300622A ST3802110A ST3250824A ST3402111A ST3250624A...
  • Page 3 Barracuda 7200.9 PATA ST3500841A ST3200827A ST3500641A ST3160812A ST3400833A ST3160212A ST3400633A ST3120814A ST3300822A ST3120213A ST3300622A ST3802110A ST3250824A ST3402111A ST3250624A...
  • Page 4 Seagate Technology LLC. Other product names are registered trademarks or trade- marks of their owners. Seagate reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.

  • Page 5: Table Of Contents

    Seagate Technology support services ........
  • Page 6 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 7: List Of Figures

    List of Figures Figure 1. Typical 5V startup and operation current profile ........23 Figure 2.
  • Page 8 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 9: Introduction

    Introduction ® This manual describes the functional, mechanical and interface specifications for the following Seagate ® Barracuda 7200.9 PATA model drives: ST3500841A ST3300622A ST3160212A ST3500641A ST3250824A ST3120814A ST3400833A ST3250624A ST3120213A ST3400633A ST3200827A ST3802110A ST3300822A ST3160812A ST3402111A These drives provide the following key features: •...
  • Page 10 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 11: Drive Specifications

    Drive specifications Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models: ST3500841A ST3300622A ST3160212A ST3500641A ST3250824A ST3120814A...
  • Page 12 Table 1: Drive specifications summary for 500 Gbyte models Drive specification ST3500841A ST3500641A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 976,773,168 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 790.1 Track density, KTPI (ktracks/in avg.) 124.5 Areal density, (Gbits/in avg)
  • Page 13 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 14 Table 2: Drive specifications summary for 400 Gbyte models Drive specification ST3400633A ST3400833A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 781,422,768 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 790.1 Track density, KTPI (ktracks/in avg.) 124.5 Areal density, (Gbits/in avg)
  • Page 15 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 16 Drive specifications summary Table 3: for 300 Gbyte models Drive specification ST3300622A ST3300822A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 586,072,368 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 790.1 Track density, KTPI (ktracks/in avg.) 124.5 Areal density, (Gbits/in avg)
  • Page 17 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 18 Drive specifications summary Table 4: for 250 and 200 Gbyte models Drive specification ST3250624A ST3250824A ST3200827A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 488,397,168 390,721,968 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 790.1 Track density, KTPI (ktracks/in avg.) 124.5...
  • Page 19 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 20 Drive specifications summary Table 5: for 160 Gbyte models Drive specification ST3160812A ST3160212A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 312,581,808 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 840.0 Track density, KTPI (ktracks/in avg.) 141.5 Areal density, (Gbits/in avg)
  • Page 21 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 22 Drive specifications summary Table 6: for 120 Gbyte models Drive specification ST3120814A ST3120213A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 234,441,648 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 840.0 Track density, KTPI (ktracks/in avg.) 141.5 Areal density, (Gbits/in avg)
  • Page 23 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.
  • Page 24 Drive specifications summary Table 7: for 80 and 40 Gbyte models Drive specification ST3802110A ST3402111A Formatted Gbytes (512 bytes/sector)* Guaranteed sectors 156,301,488 78,165,360 Bytes per sector Default sectors per track Default read/write heads Default cylinders 16,383 Recording density, KBPI (kbits/in max) 840.0 611.5 Track density, KTPI (ktracks/in avg.)
  • Page 25 To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/service/ From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase.

  • Page 26: Formatted Capacity

    Formatted capacity Formatted Guaranteed Model capacity* sectors Bytes per sector ST3500841A 500 Gbytes 976,773,168 ST3500641A 500 Gbytes 976,773,168 ST3400833A 400 Gbytes 781,422,768 ST3400633A 400 Gbytes 781,422,768 ST3300822A 300 Gbytes 586,072,368 ST3300622A 300 Gbytes 586,072,368 ST3250824A 250 Gbytes 488,397,168 ST3250624A 250 Gbytes 488,397,168 ST3200827A 200 Gbytes...

  • Page 27: Recording And Interface Technology

    Recording and interface technology Interface Recording method 16/17 EPRML Recording density KBPI (kbits/inch max) 790.1 (500, 400, 300, 250 and 200GB models) 840.0 (160, 120 and 80GB models) 611.5 (40GB model) Track density KTPI (ktracks/inch avg) 124.5 (500, 400, 300, 250 and 200GB models) 141.5 (160, 120 and 80GB models) 103.9 (40GB model) Areal density (Gbits/inch...

  • Page 28: Physical Characteristics

    Physical characteristics Drive specification Maximum height (mm) 26.1 (inches) 1.028 Maximum width (mm) 101.6 (inches) 4.000 +/- 0.010 Maximum length (mm) 146.99 (inches) 5.787 Max weight 40GB models 525 grams (1.16 lbs) 250, 200, 160, 120 and 80GB models 580 grams (1.28 lbs) 300GB models 655 grams (1.44 lbs) 400 and 500GB models...

  • Page 29: Power Specifications

    Power specifications The drive receives DC power (+5V or +12V) through a four-pin standard drive power connector. 2.8.1 Power consumption Power requirements for the drives are listed in the table on page 23. Typical power measurements are based on an average of drives tested, under nominal conditions, using +5.0V and +12.0V input voltage at 25°C ambi- ent temperature.
  • Page 30 Table 8: DC power requirements (for 400GB and 500GB models) Power dissipation (watts) Avg (watts, 25° C) Avg 5V typ amps Avg 12V typ amps Spinup — — 2.90 (peak) Idle* 9.30 0.611 0.520 Idle* (with offline activity) 10.40 0.719 0.567 Operating (40% r/w, 40% seek, 20% inop.) 13.00...

  • Page 31: Figure 1 Typical 5V Startup And Operation Current Profile

    Table 12: DC power requirements (for 80GB and 40GB models) Power dissipation (watts) Avg (watts, 25° C) Avg 5V typ amps Avg 12V typ amps Spinup — — 2.80 (peak) Idle* 7.00 0.490 0.379 Idle* (with offline activity) 8.90 0.873 0.378 Operating (40% r/w, 40% seek, 20% inop.) 12.60...

  • Page 32: Conducted Noise

    2.8.2 Conducted noise Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line. • Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave injected noise at up to 10 MHz.

  • Page 33: Environmental Specifications

    activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disc access is necessary. Environmental specifications 2.9.1 Ambient temperature Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Actual drive case temperature should not exceed 69°C (156°F) within the operating ambient conditions for standard models, or 64°C (147°F) within the operating ambient conditions for all models.

  • Page 34: Shock

    2.9.5 Shock All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be applied in the X, Y or Z axis. 2.9.5.1 Operating shock These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 63 Gs based on half-sine shock pulses of 2 msec.

  • Page 35: Acoustics

    2.10 Acoustics Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All mea- surements are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward. Note.

  • Page 36: Electromagnetic Immunity

    2.11 Electromagnetic immunity When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environments defined in the following table: Table 14: Radio frequency environments Test Description Performance level Reference standard Electrostatic discharge...

  • Page 37: Reliability

    Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024. Seagate uses an independent laboratory to confirm compliance with the EC directives specified in the previous paragraph. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives.

  • Page 38: Fcc Verification

    As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules.

  • Page 39: Environmental Protection

    RoHS Directive require-ments. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the rep-resentations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our...
  • Page 40 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 41: Configuring And Mounting The Drive

    Configuring and mounting the drive This section contains the specifications and instructions for configuring and mounting the drive. Handling and static discharge precautions After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic dis- charge (ESD) hazards. Observe the following standard handling and static-discharge precautions: Caution: •...

  • Page 42: Breather Filter Hole Precautions

    Breather filter hole precautions This section contains information regarding the precautions which should be taken regarding the breather filter hole in Seagate hard disc drives. Proper precautions should be taken to ensure full functionality and prevent possible damage to the drive.

  • Page 43: Jumper Settings

    Jumper settings 3.3.1 Master/slave configuration The options jumper block shown in Figure 4 is used to configure the drive for operation. It is the 8-pin dual header between the interface connector and the power connector. Use the following settings to configure the drive as a master or a slave.

  • Page 44: Ultra Ata/100 Cable

    3.3.4 Ultra ATA/100 cable An 80-conductor 40-pin cable is required to run Ultra DMA mode 3, mode 4, and mode 5. This cable uses even-numbered conductors connected to the ground pins to improve signal integrity. Note. If you are using a 40-pin, 80-conductor cable, attach the blue connector to the motherboard, the black connector to the Master...

  • Page 45: Figure 6 Mounting Dimensions-Top, Side And End View

    Notes: 1. Dimensions are shown in inches (mm). 2 Dimensions per SFF-8301 specification. 0.228 0.178 2.23 (5.79) (4.27) (56.56) 1.028 max 2.83 (26.11) (71.80) 3 x 0.25 0.010 3.71 (6.35 0.037) (94.35) both sides 1.122 0.02 1.625 0.020 (28.5 0.51) (41.28 0.51) 1.638...
  • Page 46 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 47: Ata Interface

    ATA interface These drives use the industry-standard ATA task file interface that supports 16-bit data transfers. It supports ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–5. The drive also supports the use of the IORDY signal to provide reliable high-speed data transfers. You can use a daisy-chain cable to connect two drives to a single AT host bus.

  • Page 48: Supported Ata Commands

    4.1.1 Supported ATA commands The following table lists ATA-standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Draft ATA-7 Standard. See “S.M.A.R.T. commands” on page 47 for details and sub- commands used in the S.M.A.R.T. implementation. Table 15: Supported ATA commands Command name...
  • Page 49 Command name Command code (in hex) Security Erase Unit Security Freeze Security Set Password Security Unlock Seek Set Features Set Max Address Note: Individual Set Max Address Address: commands are identified by the value Password: placed in the Set Max Features regis- Lock: ter as defined to the right.

  • Page 50: Identify Device Command

    4.1.2 Identify Device command The Identify Device command (command code EC ) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in the Table 15 on page 40.
  • Page 51 Word Description Value 60–61 Total number of user-addressable LBA sectors available ST3402111A = 78,165,360 ST3802110A = 156,301,488 (see Section 2.2 for related information) ST3120213A = 0FFFFFFFh* *Note: The maximum value allowed in this field is: 0FFFFFFFh ST3120814A = 0FFFFFFFh* (268,435,455 sectors, 137 Gbytes). Drives with capacities over 137 ST3160212A = 0FFFFFFFh* Gbytes will have 0FFFFFFFh in this field and the actual number of user- ST3160812A = 0FFFFFFFh*...
  • Page 52 ST3400633A = 781,422,768 ST3400833A = 781,422,768 ST3500641A = 976,773,168 ST3500841A = 976,773,168 104–127 ATA-reserved 0000 Security status 0001 129–159 Seagate-reserved xxxx 160–254 ATA-reserved 0000 Integrity word xxA5 Note. Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported Note.
  • Page 53 Ultra DMA mode 5 is currently active. Word 93 1 = 80-conductor cable detected, CBLID above V 0 = 40-conductor cable detected, CBLID below V Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 54: Set Features Command

    4.1.3 Set Features command This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an inter- rupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled.

  • Page 55: Commands

    ) that elimi- nates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://seatools.seagate.com. This drive is shipped with S.M.A.R.T. features disabled. You must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.
  • Page 56 Barracuda 7200.9 PATA Product Manual, Rev. C...

  • Page 57: Seagate Technology Support Services

    Seagate Service Centers Presales Support Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as drive availability and compatibility. Technical Support If you need help installing your drive, consult your system's documentation or contact the dealer's support ser- vices department for assistance specific to your system.
  • Page 58 Data Recovery Services Seagate offers data recovery services for all formats and all brands of storage media. Our Data Recovery Ser- vices labs are currently located in North America. To get a free quick quote or speak with a case management representative, call 1-800-475-0143.
  • Page 59 European support services For presales and technical support in Europe, dial the Seagate Service Center toll-free number for your spe- cific location. If your location is not listed here, dial our presales and technical support call center at +1-405- 324-4714 from 8:00 .
  • Page 60 Warranty service is available from 9:00 . to 6:00 . April through October, and 10:00 . to 7:00 November through March (Australian Eastern time) Monday through Friday. Seagate Service Centers Call center Toll-free Direct dial Australia 1800-14-7201 —...
  • Page 61 We are interested in your comments and suggestions regarding this publication. Please take a few minutes to participate in our survey at the following URL: http://survey.seagate.com/survey/techpubs.nsf Thank you for your time and comments. Barracuda 7200.9 PATA Product Manual, Rev. C...
  • Page 62 Barracuda 7200.9 PATA Product Manual, Rev. C...
  • Page 63 Index Device Configuration Freeze Lock 40 Device Configuration Identify 40 Device Configuration Restore 40 Device Configuration Set 40 Device Reset 40 acoustics 27 diagnostic software 1 Active mode 24 DiscWizard 35 agency certification (regulatory) 29 Disk Manager 35 alternate capacity jumper 35 dissipation 22 altitude 25 Download Microcode 40...
  • Page 64 Identify Device command 42 Idle 40 physical characteristics 20 Idle and Standby timers 24 pins 39 Idle Immediate 40 PIO 39 Idle mode 24 power consumption 21 Idle mode power 21 power dissipation 22 IEC950 29 power management 24 Information Technology Equipment 29 power specifications 21 Initialize Device Parameters 40 power-management modes 24...
  • Page 65 S.M.A.R.T. commands 47 technical support services 49 S.M.A.R.T. Disable Operations 41 temperature 25 S.M.A.R.T. drive monitoring 1 temperature gradient 25 S.M.A.R.T. Enable/Disable Autosave 41 TGMR 1 S.M.A.R.T. Enagle Operations 41 timers 24 S.M.A.R.T. Execute Offline 41 track density 19 S.M.A.R.T. Read Attribute Thresholds 41 track-to-track seek time 20 S.M.A.R.T.
  • Page 66 Barracuda 7200.9 PATA Product Manual, Rev. C...
  • Page 68 Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA Publication Number: 100389997, Rev. C, Printed in U.S.A.
