Quick Reference
Using the non-touch-screen
printer model

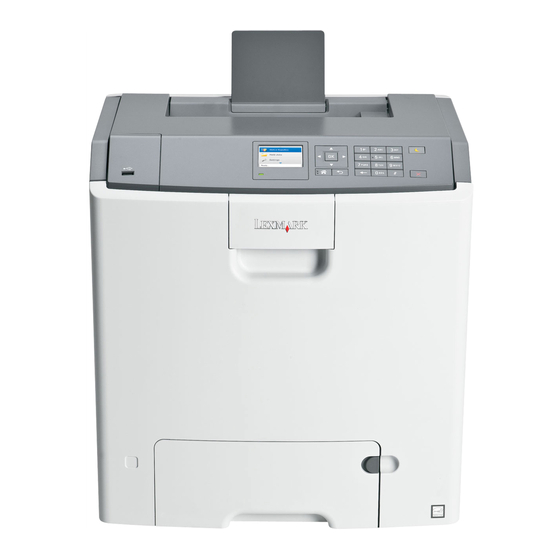

Learning about the printer
Using the four-arrow-button printer control
panel
1
2
10
9
8
Use the
To
1
Display
View the printer status.
Allow printer setup and operation.
2
Select
Submit changes made in the printer settings.
button
3
Arrow
Scroll up and down, or left and right.
buttons
4
Keypad
Enter numbers, letters, or symbols.
Use the
5
Sleep
button
3
4
5
1
2
3
ABC
DEF
4
5
6
GHI
JKL
MNO
7
8
9
PQR
STU
WXYZ
0
6
7
6
Stop or
Cancel
button
7
Back
button
8
Home
button
To
Enable Sleep mode.
The following are the statuses based on the
indicator light and the Sleep button:
•
Entering or waking from Sleep mode
–
The indicator light is illuminated solid
green.
–
The Sleep button is unilluminated.
•
Operating in Sleep mode
–
The indicator light is illuminated solid
green.
–
The Sleep button is illuminated solid
amber.
•
Entering or waking from Hibernate mode
–
The indicator light is illuminated solid
green.
–
The Sleep button is illuminated blinking
amber.
•
Operating in Hibernate mode
–
The indicator light is unilluminated.
–
The Sleep button is blinking amber for 0.1
second, and then goes completely
unilluminated for 1.9 seconds in pulsing
pattern.
The following actions wake the printer from Sleep
mode:
•
Pressing any hard button
•
Opening Tray 1 or loading paper in the
multipurpose feeder
•
Opening a door or cover
•
Sending a print job from the computer
•
Performing a power‑on reset with the main
power switch
•
Attaching a device to a USB port
Stop all printer activity.
Note: A list of options is displayed once
Stopped appears on the display.
Return to the previous screen.
Go to the home screen.
1
Use the
To
9
Indicator
Check the status of the printer.
light
•
Off—The printer is off.
•
Blinking green—The printer is warming up,
processing data, or printing.
•
Solid green—The printer is on, but idle.
•
Blinking red—The printer requires operator
intervention.
10
USB port
Connect a flash drive to the printer.
Loading paper and specialty media
Setting the paper size and type
1
From the printer control panel, navigate to:
> Settings >
> Paper Menu >
Size/Type >
2
Press the up or down arrow button to select the paper tray or
feeder, and then press
.
3
Press the up or down arrow button to select the paper size, and
then press
.
4
Press the up or down arrow button to select the paper type, and
then press
to change the settings.
> Paper
