Elation High Output LED Color Changer Opti RGB Technical Specifications

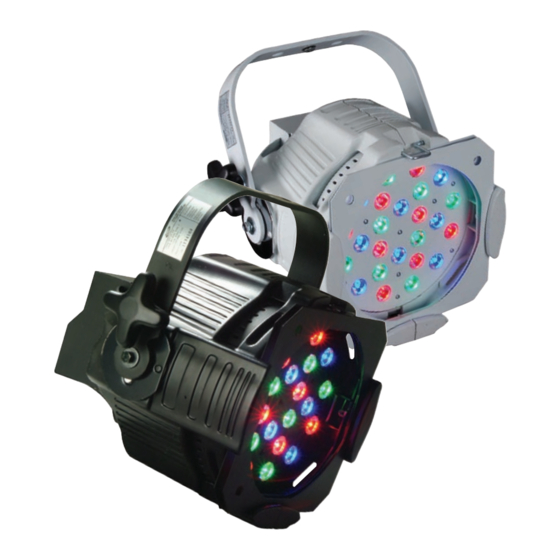

Opti RGB / Opti RGB WH
Available in white or black
The Opti RGB by Elation Professional is a high output LED color changer featuring full RGB color mixing utilizing
24 LEDs - 8 red, 8 green, 8 blue running at 1W power each. The unit boasts a sturdy, high impact aluminum
construction available in black or white casing. The Opti RGB is fan cooled with the design of the fixture optimized
to provide up to 50,000 hours estimated LED life. This unit is rated at IP 20, designed for indoor applications and
is available in both 120v or 240v models. This unit can be operated in stand alone mode, sound active mode or
controlled via DMX controller. Control data input is via 3 pin XLR Neutrik™ serial first in and out connector cables.
Heavy duty rigging yoke is included and optional safety cables and data cables are available. The Opti RGB
comes fitted with a standard 25° lens kit. Optional 45° lens kit, barn doors, diffusion filter and mounting clamp are
available options.
FEATURES
• High output L.E.D. Color Changer
• Powerful 24 x 1 Watt L.E.D.s (8 red, 8 green & 8 blue)
• Color strobe
• 15° beam angle
• Optional 45° beam angle lens kit available
(part no. OptiRGB 45D Kit )
• Sturdy, high-impact aluminum construction
• Fan cooled
• Very low power consumption
• Very low heat output
• On-board DMX (addressable via 10 dip switches)
• Built-in sound active programs
• Optional barn doors (part no. OPTI/BDB)
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
10.75" (273mm)
Opti RGB Dimensions
TECHNICAL SPECIFICATIONS
• DMX Channels: 7 DMX Channels
• Control: USITT DMX-512,
• Dimmer: 0 - 100% electronic dimming
• Strobe: Color strobe, 1-18 flashes per second
• IP Rating: IP 20
• Power Supply: 120V / 240V 50/60Hz
• Power consumption: 45W
• Ballast: Magnetic
• Lamp: 24 x 1W long-life L.E.D.s (8 red, 8 green & 8 blue)
• Lamp Life: 50,000 hrs. life
• Dimensions: ( L x W x H - not including hanging bracket )
11.5" x 8.5" x 8.5" / 292mm x 215mm x 215mm
• Weight: 11 lbs / 5 kg
• Rigging: Heavy duty single rigging yoke
3 pin XLR serial input/output
