GE Profile JT965SKSS Dimensions And Installation Information

JT965SK
GE Profile 30" Built-In Double Microwave/Convection Oven
™

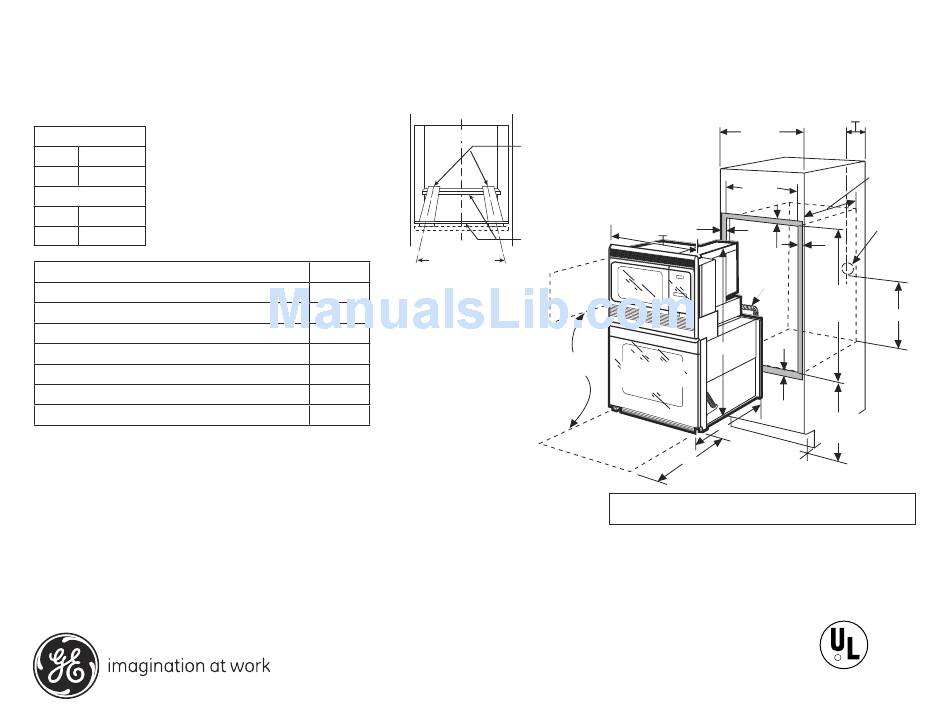

Dimensions and Installation Information
KW Rating
240V
6.6
208V 5.3
Breaker Size
240V 30 Amps
208V 30 Amps
Cabinet
A - Overlap of Oven Over Side Edges of Cutout
B - Overlap of Oven at Bottom of Cutout
C - Overlap of Oven at Top of Cutout
Oven
D - Overall Depth
E - Overall Height
F - Overall Width
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a
194°F temperature rating. Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
30"
11/16"
1"
1/2"
23-1/2"
43-1/2"
29-3/4"
or
™
service,
C L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
18"
over centerline
of cabinet
(Must Support 275 LBS.)
21" Minimum
Door Allowance
CABINET
WIDTH
30''
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
F A
C
CONDUIT
(48-1/2''
LONG)
E
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
B
D
21''
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Dimension and installation information are shown in inches.
Specification Created 1/05
20''
CUTOUT DEPTH
23-1/2'' MIN.
JUNCTION BOX
LOCATION
A
CUTOUT
HEIGHT
42-3/16'' MIN.
28''
42-1/4'' MAX.
Minimum
cutout location
21-5/8''
from the floor
