Intel Desktop Board D915PCY/D915PCM Technical Product Specification

2.10 Mechanical Considerations

2.10.1 D915PCY Board Form Factor

The D915PCY board is designed to fit into an ATX-form-factor chassis. Figure 24 illustrates the
mechanical form factor of the board. Dimensions are given in inches [millimeters]. The outer
dimensions are 12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters]. Location
of the I/O connectors and mounting holes are in compliance with the ATX specification.
6.500
[165.10]
6.100
[154.94]
0.00
2.850
[72.39]
3.100
[78.74]
5.550
[140.97]
4.900
[124.46]
72
1.800
[45.72]
2.600 0.00
[66.04]

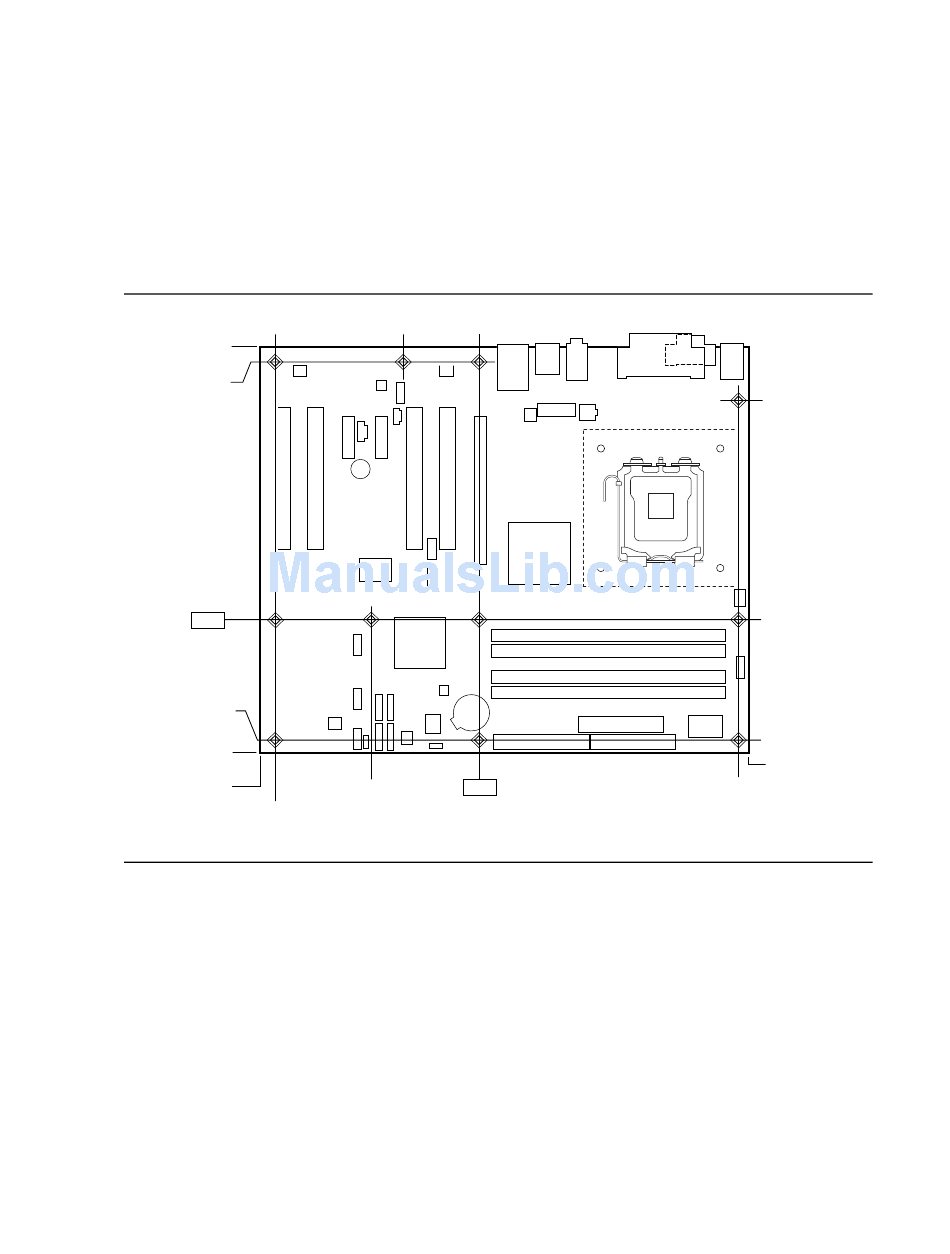

Figure 24. D915PCY Board Dimensions
5.200
[132.08]
6.450
[163.83]
6.200
[157.48]
OM17062
