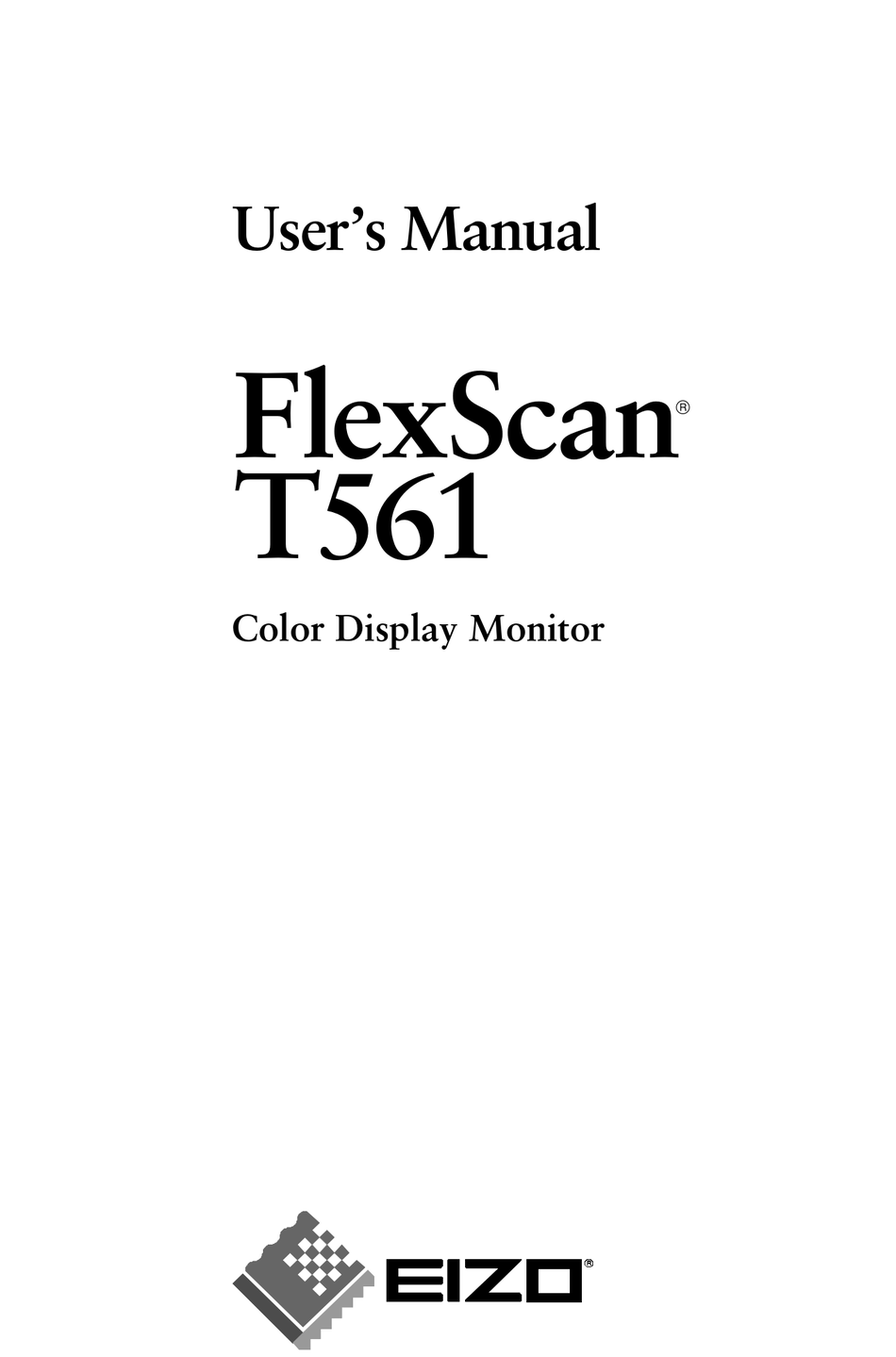

User's Manual
FlexScan
T561
Color Display Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexScan T561 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo FlexScan T561

Summary of Contents for Eizo FlexScan T561

  • Page 1 User’s Manual FlexScan T561 Color Display Monitor ...

  • Page 2: Safety Symbols

    Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to Eizo Nanao Corporation's receipt of said information.

  • Page 3: Table Of Contents

    CONTENTS PRECAUTIONS ... 4 INTRODUCTION ... 9 1-1. Features ... 9 1-2. Package Contents ... 9 1-3. Controls & Connectors ... 10 INSTALLATION ... 11 2-1. Connecting the monitor to the PC ... 11 2-2. Getting Ready for Operation ... 13 SCREEN ADJUSTMENT ...

  • Page 4: Precautions

    PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. The performance of the product, (i.e. picture geometry, picture positioning and color convergence and purity in the case of color monitors) is optimally adjusted to the earth’s magnetic field of the specific destination.
  • Page 5 WARNING • Keep small objects away from the monitor. Small objects may accidentally fall through the ventilation slots into the cabinet, leading to fire, shock, or equipment damage. • Keep liquids away from the monitor. Spillage into the cabinet may result in fire, electric shock, or equipment damage.
  • Page 6 WARNING • Use the enclosed power cord. If using the power cord other than the enclosed one, use the following cord. [USA and Canada] Use a UL LISTED/CSA LABELED or CERTIFIED power cord set meeting the following specifications. * Rating: min.
  • Page 7 CAUTION • Handle with care when carrying the monitor. * Disconnect the power cord, signal cables and remove the optional i·Sound™ sound unit (if applicable). Moving the monitor with the cord attached or lifting it by the i·Sound™ sound unit is dangerous. It may result in injury or equipment damage.
  • Page 8 CAUTION • Do not touch the plug with wet hands. Touching the plug with wet hands is dangerous and can cause electrical shock. • Use an easily accessible power outlet. This will ensure that you can disconnect the power quickly in case of a problem.

  • Page 9: Introduction

    1. INTRODUCTION Thank you very much for choosing EIZO FlexScan T561. 1-1. Features • High contrast natural flat type CRT. • Dual inputs with individual color configuration. 1-2. Package Contents Please contact your local dealer for assistance if any of the listed items are missing or damaged.

  • Page 10: Controls & Connectors

    1-3. Controls & Connectors Front Rear (8)(9) (10) (11) 1. INTRODUCTION (1) ScreenManager™ (2) BNC/D-SUB Selection Button (3) AUTO-SIZING Button (4) Power Terminal Covers for the Optional i·Sound Sound Unit. (Bottom side) (5) QuickSet™ Control Pad (Hereinafter “Control Pad”) (6) Power Indicator Indicated color Power-on status Green Power is on (Normal mode)

  • Page 11: Installation

    After connecting, secure the connection with the screw-in fasteners. • Standard graphics board Signal Cable (Enclosed) • Macintosh Signal Cable (Enclosed) Macintosh Adapter (Optional) Please consult EIZO dealer. Video Output Connector D-Sub mini 15 pin Standard graphics board Video Output Connector D-Sub mini 15 pin Macintosh (Blue &...
  • Page 12 Plug the power cord into the power connector at the rear of the monitor. Then plug the other end of the cord into a power outlet. WARNING • The equipment must be connected to a grounded main outlet. • Use the enclosed power cord. If using the power cord other than the enclosed one, use the following cord.

  • Page 13: Getting Ready For Operation

    30-96 Using the monitor with Windows A monitor information file is contained in the EIZO CRT Utility Disk included with the monitor. It includes all the required information for best operation with Windows 95/98/ 2000. Please install the enclosed utility and select your model name from the monitor list in Windows 95/98/2000.

  • Page 14: Screen Adjustment

    3. SCREEN ADJUSTMENT • Allow the monitor to stabilize for at least 30 minutes before making image adjustments. 3-1. How to use the ScreenManager Use the control pad on the front panel. The control pad can be pressed in 5 directions, “Enter”, “Up”, “Down”, “Left” and “Right”. Entering the ScreenManager.

  • Page 15: Adjustments And Settings

    3-2. Adjustments and Settings Main menu Sub menu Contrast Size Position Screen Side Pin. Trapezoidal Tilt Convergence Moiré Reduction Moiré Fine Contrast Signal Filter Video Level Color “Standard” “Custom” Others PowerManager Off Timer Degauss Button Setting Menu Position Input Signal Reset * When a black background (e.g.
  • Page 16 < Screen > • To brighten the photo or picture image • To decrease a slightly shadowed image or character When the characteristics of the graphics board does not match those of the monitor, the characters and images displayed may have a slight shadow on their right side. •...
  • Page 17 < Color > • To set the color temperature Temperature can be set from 4,000 K to 10,000 K, in 500 K increments. (Including the 9,300 K default setting.) Select “Color temperature”. “Standard” mode • To adjust each color , (Red, Green and Blue) p.29) Adjust the “Cutoff”...
  • Page 18 < Others > • To set the power save There are two power save settings choose the setting which matches your environment. • Do your part to conserve energy, turn off the monitor when you are finished using it. Complete energy use can only be accomplished by disconnecting the monitor’s power supply cord from the plug receptacle.
  • Page 19 • To degauss the monitor Press the center of the control pad. * The degauss circuitry takes about 30 minutes to regain • To customize the button function (Auto sizing or Fine Contrast) Select “Auto Sizing”(Auto sizing function <See page 13>) or “Fine Contrast”(Brighten the photo or picture image <See page 16>).

  • Page 20: Special Function

    3-3. Special Function Shortcut Keys The brightness and contrast can be adjusted by pressing the Up, Down, Left and Right keys of the control pad directly. Press the center of the control pad to save and exit the settings after the adjustment. Adjustment Lock Use the “Adjustment Lock”...

  • Page 21: Connecting Two Pcs To The Monitor

    4. CONNECTING TWO PCs TO THE MONITOR Two PCs can be connected to the T561 through the BNC/D-Sub input connections on the back of the monitor. (Example) Standard graphics board Selecting the active input The BNC/D-Sub selection button on the front panel can be used to select either the BNC or D-Sub connection as the active input.

  • Page 22: Troubleshooting

    5. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems No picture • Indicator status: Off • Indicator status: Green • Indicator status: Flashing Green / Yellow • Indicator status: Flashing Yellow Following messages appear.
  • Page 23 To eliminate the vibration, set the adjustment level to lower percentage or 0%. (p.15) If the volume level of the EIZO optional i·Sound speaker is too high, it may, in some cases, cause a slight vibration. To eliminate, turn down the volume of the speaker.

  • Page 24: 24 5. Troubleshooting

    Problems The entire screen appears too dark or bright. Color is abnormal • The entire screen appears bluish or reddish. • Color purity is not uniform. • Misconvergence of colors(red, green, blue). AUTO-SIZING button does not work properly. 5. TROUBLESHOOTING Points to check with possible solutions Adjust the “Contrast and Brightness”...
  • Page 25 Damper wires are used to support the CRT’s aperture grille, and are visible as thin dark lines across the screen. All EIZO aperture grille type CRTs include two such horizontal wires. The aperture grille itself is a grid of taut metal filaments that spans the entire screen from top to bottom.

  • Page 26: Cleaning

    6. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operational lifetime. Clean the cabinet and CRT areas as follows: WARNING • Keep liquids away from the monitor. Spillage into the cabinet may result in fire, electric shock, or equipment damage.

  • Page 27: Specifications

    (Viewable image size: 403 mm (15.8”)) 100-120/220-240 VAC±10%, 50/60 Hz, 1.3 A/0.65 A Normal/Max.: 110 W/130 W** (**with EIZO optional speaker attached) PowerManager Mode 1: Less than 10 W PowerManager Mode 2: Less than 3 W D-Sub mini 15-pin and BNC × 5 (Switchable) •...

  • Page 28: Pin Assignment

    Dimensions (16.1) (12.7) (9.5) (16.3) φ265 (φ10.4) FRONT Pin Assignment * D-Sub mini 15 pin connector * BNC Connector 7. SPECIFICATIONS 10° 4° (4.8) 46.9 (1.8) 74.9 (17.3) (2.9) SIDE Signal 1 Red Video 2 Green Video / Green composite sync 3 Blue video 4 Ground 5 No pin...

  • Page 29: Glossary

    5,000K: Often used in printing industry. 6,500K: Good for video-image display. 9,300K: Default setting for your EIZO monitor. Convergence Convergence is the monitor’s ability to precisely illuminate specific phosphors and line them up properly in order to produce pure color.

  • Page 30: Vesa Dpms

    Resolution Resolution is expressed as the number of dots (pixels) displayed on the screen. A larger number of dots produces a more sharply defined (a higher-resolution) image. Notes that for a given screen size the dot size decreases as the number of dots increases: a 640 x 480 (dot x line) resolution uses larger pixels than a 1024 X 768 resolution.

  • Page 31: Index

    Damper wires ----------------------------- 25 Default setting ----------------------- 15, 19 Degauss -------------------------- 15, 19, 29 Dimensions -------------------------------- 28 Distortion ---------------------------------- 15 EIZO CRT Utility Disk ------------------ 13 Fine contrast ------------------------- 15, 16 Gain ------------------------------------ 17, 29 Glossary ----------------------------------- 29 Inclination ---------------------------------- 15...
  • Page 32 MEMO...
  • Page 33 Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 34 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 35: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Shielded Signal Cable (D-SUB mini 15 pin - D-SUB mini 15 pin, the enclosed signal cable) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 36 Geraet entstehende Röntgenstrahlung ist durch die eigensichere Kathodenstrahlroehre ausreichend abgeschirmt. Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH. Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden.
