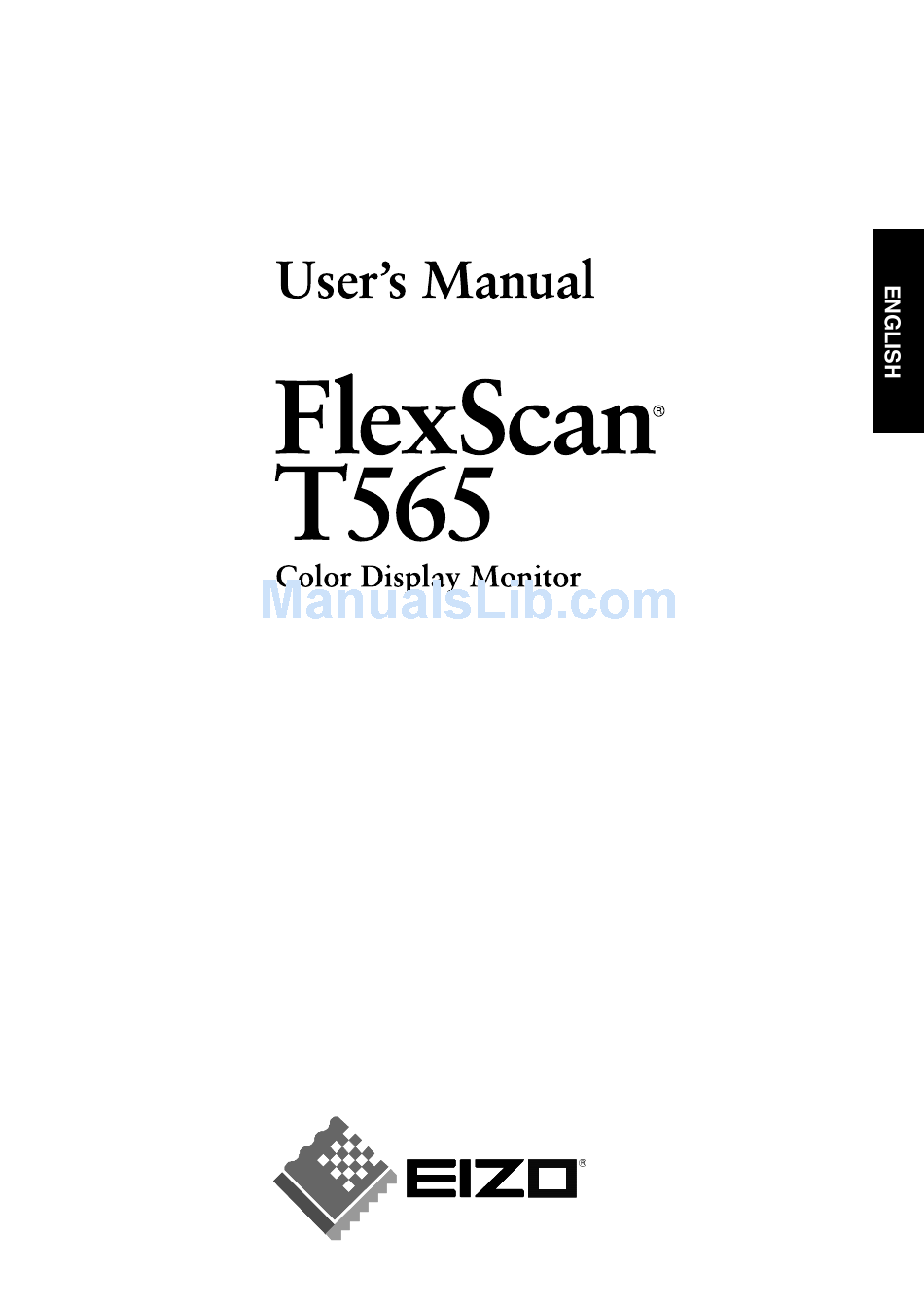

Eizo FlexScan T565 User Manual
  1. Manuals
  2. Brands
  3. Eizo Manuals
  4. Monitor
  5. FlexScan T 565
  6. User manual
Eizo FlexScan T565 User Manual

Eizo FlexScan T565 User Manual

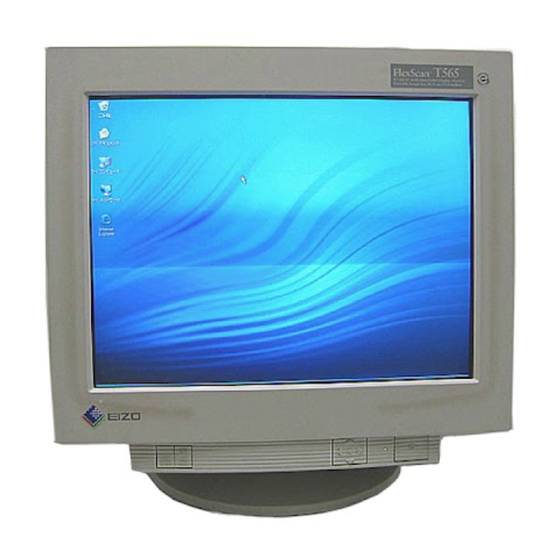

Color lcd monitor
Hide thumbs Also See for FlexScan T565:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexScan T565 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo FlexScan T565

Summary of Contents for Eizo FlexScan T565

  • Page 2: Safety Symbols

    Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to Eizo Nanao Corporation's receipt of said information.

  • Page 3: Table Of Contents

    1-2. Package Contents ... 8 1-3. Controls & Connectors ... 9 2. INSTALLATION ... 10 2-1. Connecting the monitor to the PC ... 10 2-2. Getting Ready for Operation ... 12 3. SCREEN ADJUSTMENT ... 13 3-1. How to use the ScreenManager ... 13 3-2.

  • Page 4: Precautions

    • To ensure personal safety and proper maintenance. Please read this section and the caution statements on the monitor (refer to the figure below). [Location of the Caution Statements] The equipment must be connected to a grounded main outlet.
  • Page 5 • Place the unit on a strong, stable surface. A unit placed on an inadequate surface may fall, resulting in injury or equipment damage. If the unit falls, disconnect the power immediately and have the unit checked by a qualified service engineer before using it again. Using a unit after it has been dropped may result in fire or electric shock.
  • Page 6 • Use the correct voltage. * The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or other damage. * Do not overload your power circuit, as this may result in fire or electric shock.
  • Page 7 • Handle with care when carrying the unit. Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the cord or the option attached is dangerous. It may result in injury or equipment damage. •...

  • Page 8: Introduction

    • LIMITED WARRANTY • Please retain the packing materials for future transference. • The EIZO USB cable is used for connecting the monitor to the PC when using the enclosed utility software, “ScreenManager Pro for USB”. For information on how to install this utility software, refer to the readme.txt in the CD-ROM.

  • Page 9: Controls & Connectors

    Regarding the “Off Timer”, see page 17. Power Terminal can be used with an optional i·Sound Sound Unit. USB Port is used for connecting the monitor to the PC with the cord when using the “ScreenManager Pro for USB” (See page 11).

  • Page 10: Installation

    2. INSTALLATION 2-1. Connecting the monitor to the PC • Be sure that the power switches of both of the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC.
  • Page 11 Plug the power cord into the power connector at the rear of the monitor. Then, plug the other end of the cord into a power outlet. • Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord.

  • Page 12: Getting Ready For Operation

    2 seconds. The AUTO-SIZING function centers the displayed image, aligning the image’s borders with respect to the monitor frame. In general, press the AUTO/FINE MODE button whenever changing the graphics card or the resolution when image size and/or position is incorrect.

  • Page 13: Screen Adjustment

    3. SCREEN ADJUSTMENT • Allow the monitor to stabilize for at least 30 minutes before making image adjustments. 3-1. How to use the ScreenManager Use the control pad on the front panel. The control pad can be pressed in 5 directions, “Enter”, “Up”, “Down”, “Left”...

  • Page 14: Adjustments And Settings

    (Red, Green and Blue) To select sRGB Mode To set the power save (with PC’s power saving system) To set the power save (with Monitor’s off timer) P .26) To degauss To adjust the menu position of the ScreenManager To select the priority input signal...

  • Page 15: Color

    (4) Adjust each color to the desired white level by using the <Gain> function. (5) Select <Save> and then press the Enter key. (The adjustment data will be lost, if the monitor is turned off without saving changes). <sRGB> mode to select sRGB mode During selecting the <sRGB>, color, brightness and contrast can not be adjusted.

  • Page 16: Fine Contrast

    Mode Enhanced contrast Movie 1 Movie 2 Movie 3 Movie 4 To display clear images, the monitor checks the input signal then corrects the mid-range color tone and futher adjusts contrast. 3. SCREEN ADJUSTMENT Picture Graphic Movie Enhanced Suitable for...

  • Page 17: Power Save

    Set the power saving setting by using <Others> menu. • Do your part to conserve energy, turn off the monitor when you are finished using it. Complete energy use can only be accomplished by disconnecting the monitor’s power supply cord from the plug receptacle.

  • Page 18: Adjustment Lock

    • When the monitor is turned on. • Once a priority is selected in the <Input Priority> function, whenever a change of signal is detected at the selected input, the monitor will switch the input to that signal. (How to give priority to the input) (1) Select <Input Priority>...

  • Page 19: Troubleshooting

    4. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems 1. No picture • Indicator status: Off • Indicator status: Green • Indicator status: Flashing Green / Yellow • Indicator status: Flashing Yellow 2.

  • Page 20: 20 4. Troubleshooting

    To eliminate the vibration, set the adjustment level to lower percentage or 0%. If the volume level of the EIZO optional i·Sound speaker is too high, it may, in some cases, cause a slight vibration. To eliminate, turn down the volume of the speaker.
  • Page 21 If the above operation is repeated, the screen becomes dark again. When the monitor is not fully warmed up, the screen may look slightly colored, e.g. bluish or reddish. This phenomenon is due to the unstableness of the electron gun during its warm-up period.

  • Page 22: 22 4. Troubleshooting

    Damper wires are used to support the CRT’s aperture grille, and are visible as thin dark lines across the screen. All EIZO aperture grille type CRTs include two such horizontal wires. The aperture grille itself is a grid of taut metal filaments that spans the entire screen from top to bottom.

  • Page 23: Cleaning

    5. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operational lifetime. Clean the cabinet and CRT areas as follows: • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or CRT.

  • Page 24: Specifications

    323 mm (H) x 242 mm (V) (12.7” (H) x 9.5” (V)) (Viewable image size: 403 mm (15.8”)) 100-120/200-240 VAC±10%, 50/60 Hz, 1.35 A/0.70 A Normal/Max.: 110 W/130 W** (**with EIZO optional speaker attached) PowerManager Mode 1: PowerManager Mode 2: D-Sub mini 15-pin and BNC × 5 (Switchable)

  • Page 25: Pin Assignment

    Preset Timing Resolution Frequencies fH(kHz) VGA(text) 720 x 400 31.47 VESA 1280 x 1024 91.15 Dimensions FRONT Pin Assignment * D-Sub mini 15 pin connector 1 Red Video 2 Green Video / 3 Blue video 4 Ground 5 No pin 6 Red gound 7 Green ground * BNC Connector...

  • Page 26: Glossary

    5,000K: Often used in printing industry. 6,500K: Good for video-image display. 9,300K: Default setting for your EIZO monitor. Convergence Convergence is the monitor’s ability to precisely illuminate specific phosphors and line them up properly in order to produce pure color.
  • Page 27 VESA DPMS The acronym VESA stands for “Video Electronics Standards Association,” and DPMS stands for “Display Power Management Signaling.” DPMS is a communication standard that PCs and graphics boards use to implement power savings on the monitor side. 7. GLOSSARY...

  • Page 28: Index

    Custom -------------------------------- 14, 15 Cutoff ---------------------------------- 14, 15 Default setting ------------------------- 4, 24 Degauss ------------------------------- 14, 27 Dimensions -------------------------------- 25 EIZO UTILITY DISK --------------------- 8 Fine contrast ------------------------- 14, 15 Gain ------------------------------------ 14, 15 Glossary ----------------------------------- 26 Input Priority ------------------------- 14, 18...
  • Page 29 Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 30 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 31: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 32 Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.) Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH. Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden.
