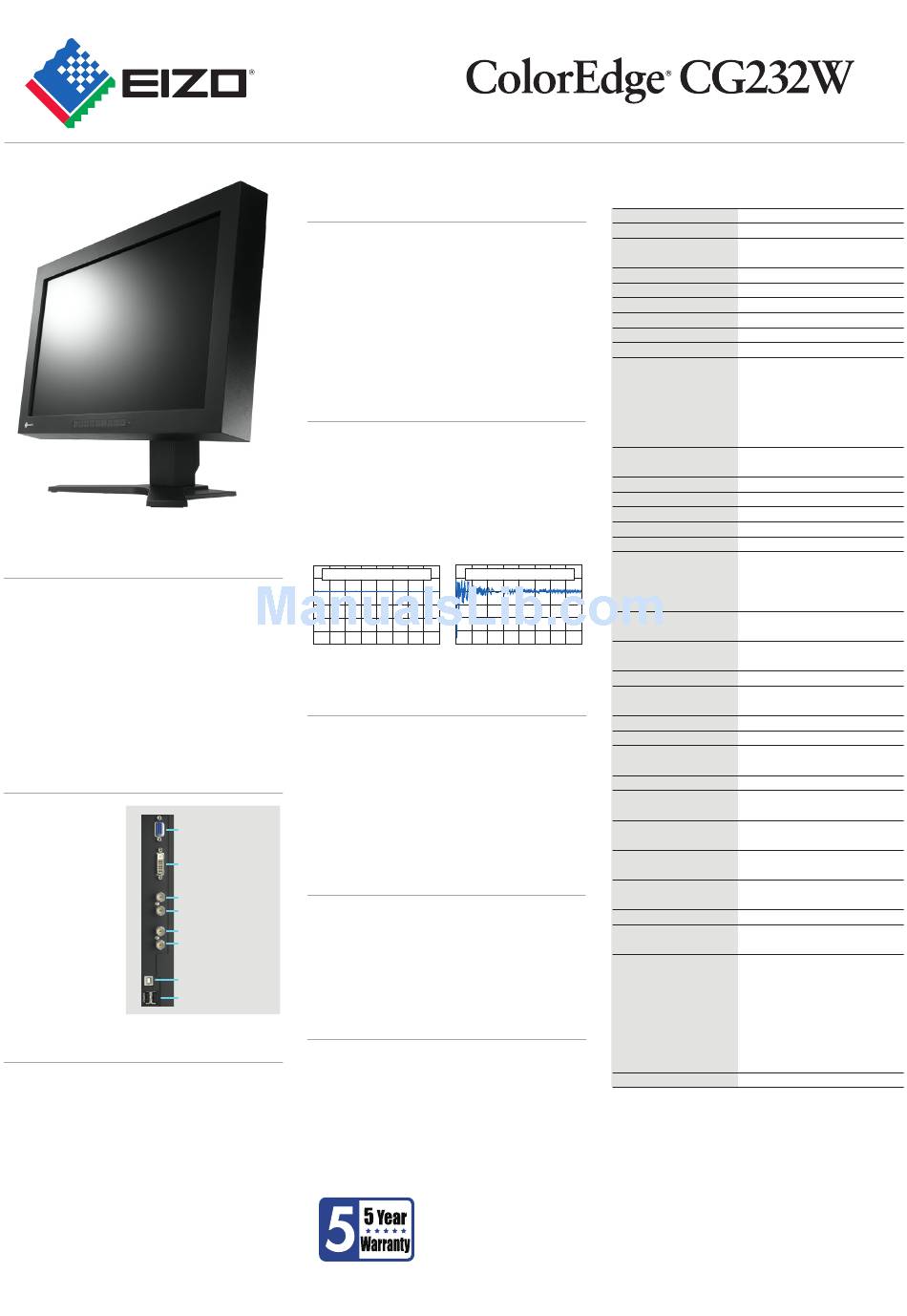

Eizo ColorEdge CG232W Specification Sheet

Post-Production and Broadcasting
Monitor for Reference and Editing
With the ColorEdge CG232W, studio
professionals can now conduct all of their
work on one monitor, whereas they
previously needed both a master monitor
for reference (playback) and a desktop
monitor for editing. This offers significant
cost savings, while solving the problem of
trying to match color between different
monitors.
Multiple Input Support
Input support
includes BNC × 2
(SD-SDI/HD-SDI
× 2 or dual-link
SDI × 1), DVI-D,
and D-Sub for
direct connection
to broadcast and
studio sources as
well as desktop
PCs.
Preset Color Modes
The panel's wide gamut reproduces
broadcast-standard color spaces such as
PAL/SECAM and HDTV. In addition,
preset color modes for Rec. 709, EBU,
SMPTE-C, DCI, and sRGB are available at
the touch of a button.
3D LUT and 10-bit Simultaneous
Display
A 3D LUT (look-up table) allows for
previewing how colors will be reproduced
on the final film print. 10-bit simultaneous
display means more than 1 billion colors
can be shown on the screen at once. This is
64 times the numbers of colors supported
by standard 8-bit display, and virtually
eliminates color and grayscale banding.
16-Bit Internal Processing
With most LCD monitors, the black level
is usually too bright which leads to
banding and washing out of dark grays.
16-bit internal processing allows the
ColorEdge CG232W to reproduce a high
level of detail in dark areas.
Error Rate (%)
2
Internal 16-Bit Processing
1
0
-1
-2
-3
0 128 256 384
Tones (0 – 1 ,023)
Hardware Calibration
The bundled ColorNavigator calibration
software lets you set the target values for
brightness, white point, and gamma.
ColorNavigator works with a measure-
ment device to directly utilize the monitor's
3D LUT for accurate calibration in less
D-Sub mini input
than five minutes.
DVI-D input
Brightness and Color Uniformity
SDI-2 input
SDI-2 output EIZO's Digital Uniformity Equalizer
function corrects brightness and chroma
SDI-1 input
SDI-1 output
uniformity errors to ensure the entire
screen will be practically uniform at each
USB upstream
gray level from 0 to 1,023.
USB downstream

Additional Features

• High-quality IPS (in-plane switching)
panel with 1920 × 1200 native resolu-
tion and 170
• A panel display frame rate of 120 Hz
virtually eliminates motion artifacts or
"judder" for smooth video playback.
• Backed by a five-year limited manufacturer's
warranty
57 cm (22.5") Color Calibration LCD Monitor for Video
Error Rate (%)
2
Internal 10-Bit Processing
1
0
-1
-2
-3
512 640 768 896 1,023 0 128 256 384 512 640 768 896 1,023
Tones (0 – 1 ,023)
viewing angles.
0
.
1

Specifications

Panel Size and Type 57 cm (22.5") TFT color LCD panel
Viewing Angles (H, V) 170°, 170° (at contrast ratio of 10:1)
Brightness 380 cd/m
100 cd/m
Contrast 720:1 (typical)
On/Off Response Time 12 ms (typical)
Native Resolution 1920 × 1200
Active Display Size (H × V) 483.8 × 302.4 mm
Viewable Image Size Diagonal: 570 mm
Pixel Pitch 0.252 × 0.252 mm
Gamut Coverage sRGB: 97%
Rec709: 97%
EBU: 97%
SMPTE-C: 98%
Adobe RGB: 97%
DCI: 88%
Display Colors 1.07 billion from a palette of 68
billion
Look-Up Table 12-bits per color
Internal Processing 16-bits per color
Sceen Uniformity Entire Screen: ΔE≤3
2
Cabinet Color Black
Dot Clock Analog: 162 MHz, Digital: 162 MHz
Scanning Frequency Analog: 26 – 92 kHz, 23.8 – 86
(H, V) Hz (non-interlace), Digital: 26 –
78 kH, 23.8 – 61.0 Hz (VGA
Text: 68 – 71 Hz) (non-interlace)
Input Signals RGB Analog, DVI Standard 1.0,
SD / HD-SDI (Dual Link)
Input Terminals DVI-D × 1, D-sub × 1, BNC × 2
(Single Link × 2 or Dual Link × 1)
Output Signal SDI : SD / HD-SDI (Loop-through)
BNC × 2 (Single Link × 2 or
Output Terminals
Dual Link × 1)
USB Port / Standard 1 up, 2 down / USB 2.0
HDCP Support DVI-D
3
Power Requirements AC 100 – 120 V, 200 – 240 V:
50 / 60 Hz
Power Consumption 110 W (maximum)
Power Save Mode Less than 7 W
Height Adjustment Range 118 mm
Tilt / Swivel / Pivot 40° Up, 0° Down / 35° Right,
35° Left
Dimensions With Stand: 567 × 481 – 599 × 255 mm
(W × H × D) Without Stand: 567 × 389 × 113 mm
With Stand: 13.4 kg
Net Weight
Without Stand: 8.8 kg
Auto Brightness Functions Auto Brightness Stabilization
Color Modes Custom, sRGB, EBU, Rec709,
SMPTE-C, DCI, Calibration
Supplied Accessories AC power cord, signal cables
(DVI-D – DVI-D, DVI-I – D-Sub
mini 15 pin), USB cable, setup
guide, EIZO LCD Utility Disk
(ColorNavigator software, PDF
user's manual), adjustment
certificate, screen cleaner,
quick reference, warranty card
Warranty Five Years
The usage time is limited to 30,000 hours or less, and the
1
warranty period of the LCD panel and backlight is limited to
three years from the date of purchase. The warranty period of
the backlight is warranted only if the monitor is used within the
recommended brightness of up to and including 100 cd/m
a color temperature between 5,000 K – 6,500 K and limited to
three years from the date of purchase subject to the usage time
being less than or equal to 10,000 hours.
Measured at gray level 128 and color temperature of 5000 K.
2
Display with audio/video devices is not supported.
3
With current LCD technology, a panel may contain a limited
number of missing or flickering pixels.
(maximum)
2
(recommended )
2 1
1
with
2
