Important
Please read PRECAUTIONS, this User's
Manual and Setup Manual (separate
volume) carefully to familiarize yourself
with safe and effective usage.
Please retain this manual for future
reference.
The latest User's Manual is
available for download from our site:
http://www.eizo.com
Notice for this monitor .................................................. 3
1. Introduction .............................................................. 5
1-1. Features .............................................................. 5
1-2. Buttons and Indicators ........................................ 6
1-3. Utility Disk ........................................................... 7
2. Installation ................................................................ 8
2-1. Connecting Two PCs to the Monitor .................... 8
2-2. Making Use of USB (Universal Serial Bus) ..........10
3. Screen Adjustment and Settings ........................... 11
3-1. Basic Operation and Functions ......................... 11
3-2. Screen Adjustment ............................................ 13
3-3. Color Adjustment ............................................... 16
3-4. Power-save Setup ............................................. 19
3-5. Off Timer ........................................................... 20
3-6. Locking the settings........................................... 20
3-7. Power Indicator Setting ..................................... 21
3-8. Automatic brightness adjustment ...................... 21
3-9. Displaying Lower Resolutions ........................... 22
3-11. EIZO Logo Appearing Function ....................... 23
4.Troubleshooting ...................................................... 24
5. Reference .............................................................. 27
5-1. Attaching an arm ............................................... 27
5-2. Specifications .................................................... 28
5-3. Glossary ............................................................ 32
About TCO'03 ............................................................ 35
FCC Declaration of Conformity .................................. 36
Hinweise zur Auswahl des richtigen
Schwenkarms für Ihren Monitor /
Hinweis zur Ergonomie .............................................. 37
How to Setup
Please read the Setup Manual (separate volume)
23
Advertisement
Table of Contents

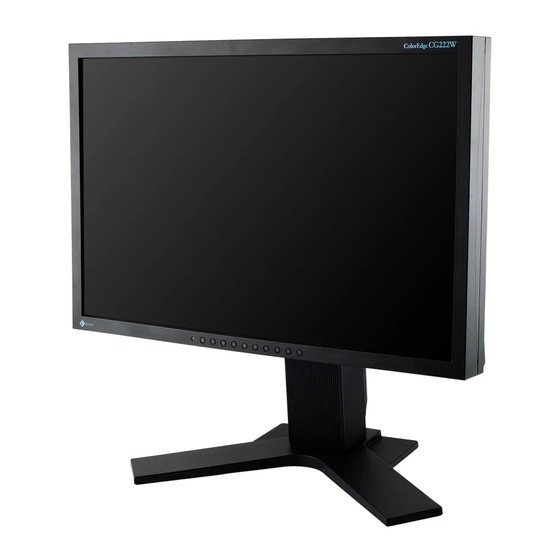

Related Manuals for Eizo COLOR EDGE CG222W
Summary of Contents for Eizo COLOR EDGE CG222W
-
Page 1: Table Of Contents
3-8. Automatic brightness adjustment ... 21 3-9. Displaying Lower Resolutions ... 22 3-10. Setting the orientation of the Adjustment menu 3-11. EIZO Logo Appearing Function ... 23 4.Troubleshooting ... 24 5. Reference ... 27 5-1. Attaching an arm ... 27 5-2. - Page 2 Product specifications may vary depending on the region. Confirm the specifications in the manual written in the language of the region of purchase. Copyright© 2008 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.
-
Page 3: Notice For This Monitor
Notice for this monitor • Aside from creating documents, viewing multimedia content, and other general purposes, this product is also suited to applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority. • This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. -
Page 4: Lcd Panel
Cleaning NOTE • Never use thinner, benzene, alcohol, abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel. [LCD Panel] • T he LCD surface can be cleaned with a soft cloth, such as cotton or lens paper. • I f necessary, stubborn stains can be removed by using the provided ScreenCleaner, or moistening part of a cloth with water to enhance its cleaning power. [Cabinet] • T o remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent. Do not spray wax or cleaner directly into the cabinet. (For details, refer to the manual of the PC.) To use the monitor comfortably • A n excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions. • S taring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour. -
Page 5: Introduction
1. Introduction Thank you very much for choosing an EIZO Color Monitor. 1-1. Features • 2 2" wide format LCD • W ide color gamut of 92% of Adobe RGB • Applicable to HDCP • Dual inputs compliant (DVI-I x 2) • DVI Digital input (TMDS ) compliant • [Horizontal scanning frequency] Analog: 24 - 82 kHz Digital: 31 - 65 kHz [Vertical scanning frequency] Analog: 47.5 - 86Hz (1280 x 1024: 47.5 - 76Hz / 1680 x 1050: 47.5 - 61Hz) Digital: 47.5 - 61Hz (VGA text: 69 - 71Hz) [Resolution] 1680 dots x 1050 lines • Frame Synchronous mode supported (59 - 61Hz) • The Portrait/Landscape display capability (rotate 90 degrees clockwise) • The provided "ColorNavigator" calibration software enables you to calibrate monitor characteristics and generate ICC profiles (for Windows) and Apple ColorSync profiles (for Macintosh) (refer to the EIZO LCD Utility Disk) • Color Vision Deficiency Simulation Software "UniColor Pro" supported (This software can be downloaded from http://www.eizo.com) • Smoothing function incorporated for the adjustment of an enlarged image • FineContrast modes, to select the most suitable mode for screen display • H eight adjustable stand • BrightRegulator function incorporate • Attaching the "Adjustment Certificate" to describe the grayscale and uniformity characteristics of the monitor individually • Monitor hood attached Tips • T his monitor supports the Portrait/Landscape display. This function allows you to change the orientation of the Adjustment menu when using the monitor screen in vertical display position. -
Page 6: Buttons And Indicators
Blue Flashing blue (2 times for each) When the timer is set for ColorNavigator, notifies that a recalibration is Orange *ScreenManager ® is an EIZO's nickname of the Adjustment menu. Operation status The screen is displayed required (for CAL mode or EMU mode) Power saving Power off Adjustment menu ®... -
Page 7: Utility Disk
1-. Utility Disk An "EIZO LCD Utility Disk" (CD-ROM) is supplied with the monitor. The following table shows the disk contents and the overview of the application software programs. Disk contents and software overview The disk includes software programs for adjustment and User’s Manual. Refer to "Readme.txt" or the "read me" file on the disk for software startup procedures or file access procedures. Item A “Readme.txt” or “read me” file ColorNavigator An application software for calibrating monitor characteristics and generating ICC profiles (for Windows) and Apple ColorSync profiles (for Macintosh). (A PC must be connected to the monitor with the supplied USB cable.) Refer to the descriotion later. -
Page 8: Installation
. Installation -1. Connecting Two PCs to the Monitor Two PCs can be connected to the monitor through the DVI-I connector on the back of the monitor. Connection examples PC 1 (Ex.1) Digital D-Sub (Ex.2) Analog mini 15 Selecting input signal Switch the input signal with . Input signal switches each time is pressed. When the signal is switched, the active signal type (Signal 1 or 2/ Analog or Digital) appears at the top right corner of the screen. This function is used to select which PC will have priority to control the monitor when utilizing two PCs. The monitor constantly checks the input signals and switches automatically in accordance with the <Input Priority> setting (see table below). Once a priority is set, whenever a change of signal is detected at the selected input, the monitor will switch the input to that signal. In this case of only one signal being present at either input, the monitor automatically detects and displays that signal. SIGNAL1 SIGNAL2 Signal Cable Signal Cable (FD-C39 enclosed) (FD-C16 enclosed) Signal Cable... - Page 9 Priority setting Manual Note • When the "1" or "2" is selected, the power saving mode of the monitor activates only if both PCs are in power saving mode. Performance If signals from both inputs are present, the monitor gives preference to Signal 1 in the following cases. • When the power of the monitor is turned ON. • When the signal input to Signal 1 is changed even if active input was Signal 2.
-
Page 10: Making Use Of Usb (Universal Serial Bus)
-. Making Use of USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment • PC equipped with USB ports or another USB hub connected to the USB compliant PC • Windows 2000/XP/Vista // Mac OS 9.2.2/Mac OS X 10.2 or later • USB Cable (MD-C93, enclosed) Note • The USB hub function may not work properly depending on the PC or peripherals. Please consult the manufacturer of each device about the USB support. • Using the USB Rev. 2.0 compatible PC or peripherals is recommended. • If the monitor is in the power saving mode, or if the monitor is connected to the power outlet with the monitor turned off, all the devices connected to the USB ports (upstream and downstream) work. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode. • The followings are procedures for the Windows 2000/XP/Vista and Mac OS. Connecting to the USB HUB Connect the monitor to the PC with the signal cable first, then turn on the PC. Connect the upstream port of the monitor to the downstream port of the USBcompliant PC or another hub by using the USB cable. After connecting the USB cable, the USB function can be set up automatically. After setting up, the monitor's USB hub is available for connecting USB compliantperipherals to the downstream ports of the monitor. Upstream Downstream... -
Page 11: Screen Adjustment And Settings
. Screen Adjustment and Settings -1. Basic Operation and Functions Adjustment menu allows you to adjust screen performance though the main menu and select a FineContrast mode easily. FineContrast Menu Note • T he Adjustment menu and the FineContrast menu cannot be displayed at the same time. Entering the Adjustment menu Press once to display the main menu of the Adjustment menu. Making Adjustments and Settings 1. Select the desired sub menu icon using 2. Use to select the desired setting icon and press . The setting menu appears. 3. Use to make all required adjustments and press save the settings. Exiting the Adjustment menu 1. To return to the main menu, select the <Return> icon or press twice, followed by . 2. To exit the Adjustment menu, select <Exit> icon or press twice, followed by . Tips • D ouble clicking at any time also exits the Adjustment menu. ®... - Page 12 Functions The following table shows all the Adjustment menu's adjustment and setting menus. "*" indicates adjustments of analog input only and "**" indicates digital input only. Main menu Screen Clock Phase Position Resolution Range Adjustment Smoothing Signal Filter Brightness Color (Custom) Temperature Gamma Saturation Gain 6 Colors Reset PowerManager DVI DMPM VESA DPMS Others Screen Size Border Intensity Input Priority Off Timer Beep Menu Settings BrightRegulator Power Indicator...
-
Page 13: Screen Adjustment
AT-compatible PC on MS-DOS (Not windows). The background color for the "wall paper" or "desktop" pattern is set to black. • It cannot work correctly using with some graphics cards. If the appropriate screen cannot be made by using If the appropriate screen can be made, proceed to 5. Range Adjustment . Prepare the display pattern for the analog display adjustment. Windows 1. Load the “EIZO LCD Utility Disk” to your PC. 2. Start the “Screen Adjustment Utility” from the startup menu. If it cannot be started, open the screen adjustment pattern files. Other than Windows Download the "Screen adjustment pattern files" from our site: http://www.eizo.com. Tips • For how to open and use the screen adjustment pattern files, refer to “Readme.txt” or the “read me” file. , adjust the screen through the following procedures. - Page 14 Perform the auto size adjustment again with the analog screen adjustment pattern displayed. 1. Display Pattern 1 in full screen on the monitor using the “Screen Adjustment Utility” or the screen adjustment pattern files. 2. Press . A message “Your setting will be lost, if you press again now” appears for five seconds. 3. Press again while the message is displayed. The Auto Adjustment function begins (showing a running status icon) to adjust flickering, screen position, and screen size automatically. Adjust by using <Screen> menu in the Adjustment menu (1)Vertical bars appear on the screen Use the <Clock> adjustment. Select the <Clock> and eliminate the vertical bars by using and of the Control buttons. Do not continuously press the Control buttons, as the adjustment value will change quickly and make it difficult to locate the most suitable adjustment point. If the horizontal flickering, blur or bars appear, proceed to <Phase> adjustment as follows. (2) Horizontal flickering, blurring or bars appear on the screen. Use the <Phase> adjustment. Select the <Phase> and eliminate the horizontal flickering, blurring or bars by using and buttons. Note • H orizontal bars may not completely disappear from the screen depending on the PC.
- Page 15 (3) The screen position is incorrect. Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The <Position> adjustment moves the image to the correct position. Select <Position> and adjust the position by using , , and . If vertical bars of distortion appear after finishing the <Position> adjustment, return to <Clock> adjustment and repeat the previously explained adjustment procedure. ("Clock" => "Phase" => "Position") (4) Screen image is smaller or larger than the actual screen images. Use the <Resolution> adjustment. Adjustment is needed when the input signal resolution and the resolution now being displayed are different. Select <Resolution> and confirm if the resolution now being displayed is the same as the input resolution. If it is not, adjust the vertical resolution using and and adjust the horizontal resolution using and . Extra image is displayed due to excessive dots. A part of image is cut due to short dots. Adjust the output signal range (Dynamic Range) of the signal.
-
Page 16: Color Adjustment
-. Color Adjustment Simple adjustment [FineContrast mode] This function allows you to select the best display mode for monitor brightness, etc. To select FineContrast mode Directly pressing allows you to select the best suited mode for screen display from 4 FineContrast modes; Custom, sRGB, EMU and CAL. Color settings each mode can be adjusted by using the <Color> menu of the Adjustment menu. Press to exit the menu. Tips • T he Adjustment menu and the FineContrast menu cannot be displayed at the same time. Mode button Enter button FineContrast Mode Selectable FineContrast modes are as follows. Mode Custom To adjust the color settings according to your preference. sRGB To display the screen images based on those original colors (ex. -
Page 17: Adjustment Items
Advanced Adjustments [Adjustment menu] Color settings of each FineContrast mode can be adjusted and saved by using the <Color> menu of the Adjustment menu. In the analog input, perform the "Range Adjustment" before making the color adjustments. During color adjustments, the FineContrast mode cannot be changed. Select the mode in advance by using Adjustment Items The adjustable items and displayed icons on the <Color> menu depend on the selected FineContrast mode. " √ ": Settable/Adjustable " - ": Fixed at the factory Icons Functions Brightness... - Page 18 Adjustment Contents Menu Brightness To set the brightness of the screen Tips • The values shown in the “%” are available only as reference. Temperature To set the color temperature Tips • The values shown in the Kelvin are available only as a reference tool. •...
-
Page 19: Power-Save Setup
-. Power-save Setup The <PowerManager> menu in the Adjustment menu enables to set the power-save setup. Note • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely. • Even if the monitor is in a power saving mode, USB compliant devices function when they are connected to the monitor's USB (both the upstream and the downstream ports). Therefore, power consumption of the monitor will change according to the connected devices even if the monitor is in a power saving mode. Analog Input This monitor complies with the "VESA DPMS" standard and adopts a power saving method. [Procedure] 1. Set the PC's power saving settings. 2. Select "VESA DPMS" from the <PowerManager> menu. [Power Saving System] Operation STAND-BY Power saving SUSPEND [Power Resumption Procedure] Operate the mouse or keyboard to return to a normal screen. Digital Input This monitor complies with the "DVI DMPM" [Procedure] 1. Set the PC's power saving settings. 2. Select "DVI DMPM" from the <PowerManager> menu. [Power Saving System] The monitor enters the power saving mode in five seconds in connection with the PC setting. Operation Power saving [Power Resumption Procedure] Operate the mouse or keyboard to return to a normal screen. -
Page 20: Off Timer
Operation Advance Notice Power Off • (Enter button) / Adjustments/settings using • (Mode button) • (Auto Adjustment button) • EIZO Logo display setup • (Input Signal Selection button) • (Power button) • (Adjustment Lock button) Power Indicator Blue Blue Flashing... -
Page 21: Power Indicator Setting
-. Power Indicator Setting Light off the power indicator. This function is available for the multiple panels settings. [Procedure] 1. Select <Power Indicator> in the Adjustment menu <Others> menu. 2. Select "Disable". -. Automatic brightness adjustment The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably. [Procedure] 1. Select <BrightRegulator> in the Adjustment menu <Others> menu. 2. Select "Enable". Note • This function is not available in the EMU and CAL modes. -
Page 22: Displaying Lower Resolutions
-. Displaying Lower Resolutions The lower resolutions are enlarged to full screen automatically. Using the <Screen Size> function in the <Others> menu enables to change the screen size. Enlarge the screen size when displaying a low resolution. Select the <Screen Size>. Select the <Screen Size> in the <Others> menu and select the screen size by using and . Mode Full Enlarged Normal Example: Displaying 1280 x 1024 Full (Default Setting) (1680 × 1050) Smooth the blurred texts of the enlarged screen. Switch the <Smoothing> setting. When a low-resolution image is displayed in the "Full" or "Enlarged" mode, the characters or lines of the displayed image may be blurred. Select the suitable level from 1 - 5 (Soft - Sharp). Select <Smoothing> in the <Screen> menu and adjust by using the right and left switches. Note • S moothing setting may not be required depending on the display resolution. (You cannot choose the smoothing icon.) Displays the picture on the screen in full, irrespective of the picture's resolution. Since the verticalresolution and the horizontal resolution are enlarged at different rates, some images may appeardistorted. -
Page 23: Setting The Orientation Of The Adjustment Menu
-10. Setting the orientation of the Adjustment menu The orientation of the Adjustment menu can be changed. [Procedure] 1. Select <Orientation> in the Adjustment menu <Others> menu. 2. Select <Orientation> in the <Menu Settings> menu. 3. Use to select between "Portrait" and "Landscape". 4. Turn the monitor screen 90° in clockwise direction. Tips • I f you use the monitor with "Portrait" position, the setting may be required to change depending on the graphics board used in your PC. Refer to the manual of the graphics board for details. -11. EIZO Logo Appearing Function When switching on the power button on the front control panel, the EIZO logo is displayed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.) [To undisplay] 1. Press to turn off the unit. 2. Press again while pressing . The EIZO logo does not appear on the screen. [To display] 1. Press to turn off the unit. 2. Press again while pressing . The EIZO logo appear on the screen. -
Page 24: Troubleshooting
.Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. • N o-picture problems : See No.1 - No.2 • I maging problems : See No.3 - No.14 • O ther problems : See No.15 - No.18 • U SB problems : See No.19 Problems 1. No picture • Power indicator does not light. • Power indicator is lighting blue. • Power indicator is lighting orange. 2. The message below appears. •... - Page 25 Problems 5. Vertical bars appear on the screen or a part of the image is flickering. 6. The characters and images have several vertical bars on their right side. 7. Whole screen is flickering or blurring. 8. Characters are blurred. 9.
- Page 26 • Try executing the following method. •Restarting the PC •Connecting the PC and peripherals directly If the problem is solved by doing this, contact an EIZO dealer. • Check that the USB cable is correctly connected. • Check that the PC and OS are USB compliant. (For verification of USB support, consult the manufacturer of each system.)
-
Page 27: Reference
. Reference -1. Attaching an arm The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm stand to the LCD monitor. Note • If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers before selecting. - Hole spacing on the arm mounting 100 mm x 100 mm (VESA compliant) - Supportable Weight: Total weight of the monitor (without stand) and attaching equipment such as a cable - TÜV/GS approved arm or stand • Please connect cables after attaching an arm stand. Setup Procedure Lay the LCD monitor down. Do not scratch the panel. Remove the tilt stand by loosening the screws. Unscrew the four screws securing the unit and the satand with the screwdriver. Attach an arm stand to the LCD monitor securely. Secure the monitor to the arm or stand using the screws specified in the user's manual of the arm or stand. -
Page 28: Specifications
-. Specifications LCD Panel Viewing Angle Dot Pitch Horizontal Scan Analog Frequency Digital Vertical Scan Analog Frequency Digital Resolution Dot Clock Analog (Max.) Digital Display Colors Recommended Brightness Display Area Power Supply Power Consumption Input Signal Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal... -
Page 29: Default Settings
Default settings Brightness Smoothing Temperature FineContrast Mode PowerManager Screen Size Input Priority Off Timer Menu Settings Menu Size Menu Off Timer BrightRegulator Beep Language Beeper settings Short beep Adjustment menu item selsected. Adjustment menu parameter adjusted to minimum or maximum limit. When locked or unlocked with Long beep Adjustment menu data-save executed. - Page 30 Dimensions 190(7.5) SWIVEL 507(20.0) 475.8(18.7) 398.5(15.7) 513(20.2) 253.5(10.0) 74(2.91) 203.5(8.0) 100(3.9) 43.9 (1.73) 230(9.1) 340(13.4) 229(9) 151(5.9) 45.6(1.8) uinit: mm (inch) 203.5(8.0) SIGNAL1 SIGNAL2...
-
Page 31: Pin Assignment
Pin Assignment •DVI-I Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin No. Signal TMDS Data 2- TMDS Data 2+ TMDS Data2/4 Shield DDC Clock (SCL) DDC Data (SDA) Analog Vertical Sync TMDSData1-... -
Page 32: Glossary
-. Glossary Clock With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry. To convert the signal correctly, the LCD monitor needs to produce the same number clock pulse as the dot clock of the graphics system. When the clock pulse is not correctly set, some vertical bars of distortion are displayed on the screen. DVI (Digital Visual Interface) A digital flat panel interface. DVI can transmit digital data from the PC directly without loss with the signal transition method "TMDS". There are two kinds of DVI connectors. One is DVI-D connector for digital signal input only. The other is DVI-I connector for both digital and analog signal inputs. DVI DMPM (DVI Digital Monitor Power Management) The Power management system for the digital interface. The "Monitor ON" status (operation mode) and the "Active Off" status (power-saving mode) are indispensable for the DVI-DMPM as the moni- tor's power mode. Gain Adjustment Adjusts each color parameter for red, green and blue. The color of the LCD monitor is displayed through the color filter of the LCD panel. Red, green and blue are the three primary colors. The colors on the monitor are displayed by combining these three colors. The color tone can change by adjusting the illumination amount passed through each color's filter. - Page 33 Resolution The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The display panel of this monitor consists of 1680 horizontal pixels and 1050 vertical pixels. At a resolution of 1680 x 1050 , images are displayed as a full screen(1:1). sRGB (Standard RGB) "International Standard for Red, Green, and Blue color space" A color space was defined with the aim of the color matching between applications and hardware devices, such as monitors, scanners, printers and digital cameras. As a standard default space, sRGB allows Internet users to closely match colors. Temperature Color Temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. At high temperatures the white tone appears somewhat blue, while at lower temperatures it appears somewhat red. Computer monitors generally give best performance at high temperature settings. 5000 K: Slightly reddish white. 6500 K: Warm-white tone, similar to white paper or daylight. 9300 K: Slightly bluish white. TMDS (Transition Minimized Differential Signaling) A signal transition method for the digital interface. VESA DPMS (Video Electronics Standards Association - Display Power Management Signaling) The acronym VESA stands for "Video Electronics Standards Association", and DPMS stands for "Display Power Management Signaling". DPMS is a communication standard that PCs and graphics boards use to implement power savings on the monitor side.
- Page 34 . APPENDIX/ANHANG/ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique NOTE • B ased on the signal diagram shown below factory presets have been registered in the monitor's microprocessor. • D er integrierte Mikroprozessor des Monitors unterstützt werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme). • S ignaux ont été enregistrés en usine dans le microprocesseur du moniteur, conformément au diagramme de synchronisation ci-dessous. Mode VGA 640×480@60Hz VGA TEXT 720×400@70Hz Macintosh 640×480@67Hz Macintosh 832×624@75Hz Macintosh 1152×870@75Hz Macintosh 1280×960@75Hz VESA 640×480@72Hz...
-
