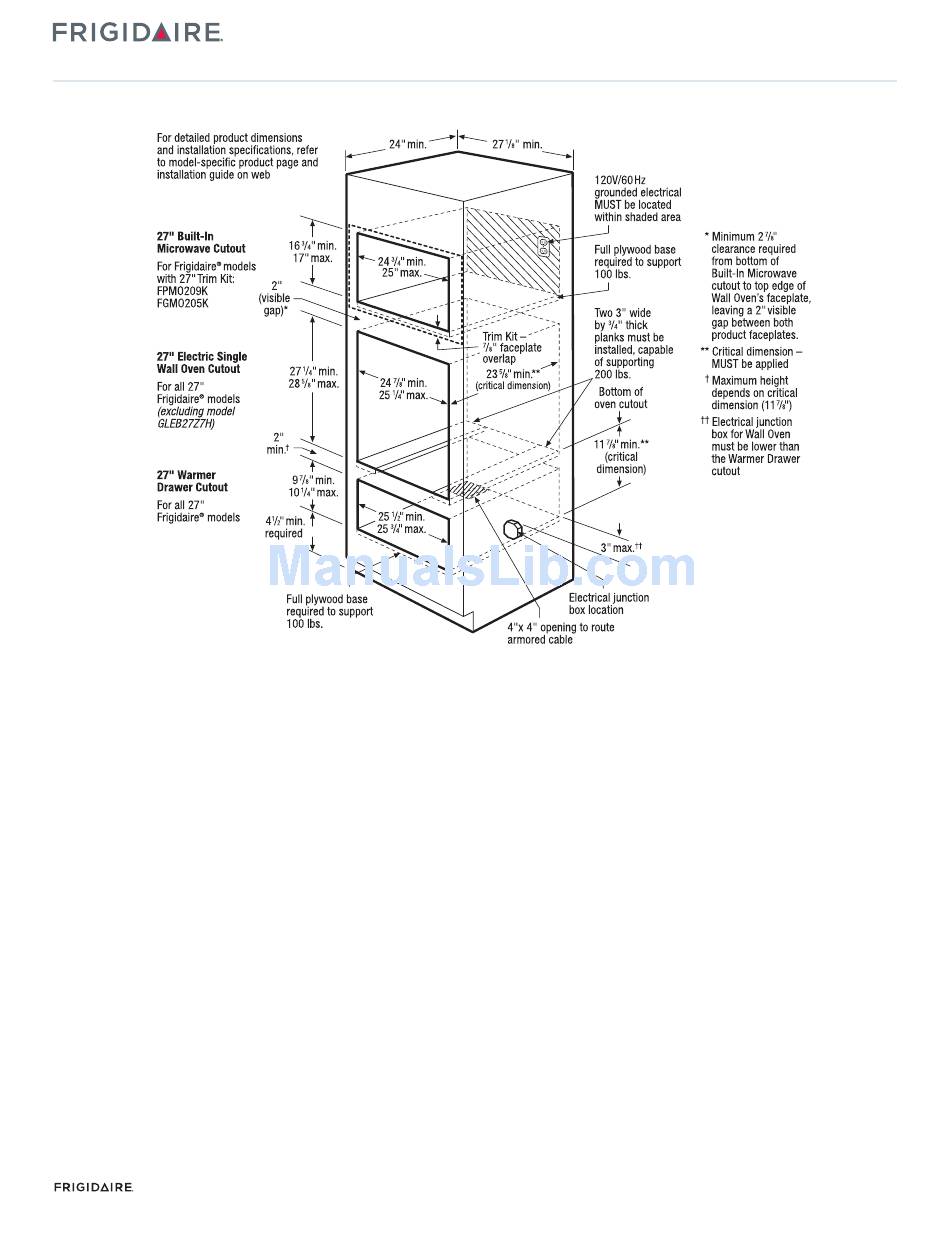

27" Combination Installation Specifications
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product's
faceplate will fit flush against cabinet front.
Bases must be level and cabinet front must be square.
Minimum 4-1/2" required distance from bottom of Warmer Drawer
cutout to floor.
Respect critical dimensions as noted for proper installation of
built-In products.
Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
For built-in installation, microwave MUST be installed with optional
27" Trim Kit which includes Bottom Duct Assembly – shipped in
separate box, ordered by individual part number.
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
Connected Load (kW Rating) @ 120 Volts = 1.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
Amps @ 120 Volts = 14.3 Amps
Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven's faceplate, leaving a 2" visible gap
between both product faceplates.
USA
10200 David Taylor Drive
Charlotte, NC 28262
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
MOSS_EW_WD 27INST FR 02/11
1-800-FRIGIDAIRE
frigidaire.com
1-800-265-8352
frigidaire.ca
© 2011 Electrolux Home Products, Inc.
27" Combination Installation
Built-In Microwave / Single Wall Oven / Warmer Drawer
27" Electric Single Wall Oven Specifications
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
To support Wall Oven when using in combination with Warmer
Drawer, two 3"-wide x 3/4"-thick planks must be installed as a base,
capable of supporting 200 Lbs. Do NOT use full base, since planks
are necessary to allow for proper air displacement.
27" Warmer Drawer Specifications
• Voltage Rating – 120V / 450W / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = 0.5 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120V = 3.8 Amps
• Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
Printed in the U.S.A.
