Frigidaire FPEW2785KF - 27" Single Electric Wall Oven Product Specifications page 3

27" electric single wall oven
Hide thumbs

Advertisement

Single Wall Oven Specifications
Product Shipping Weight (approx.) – 155 Lbs.
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
Connected Load (kW Rating) @ 240 / 208 Volts = 4.1 / 3.1 kW
Amps @ 240 / 208 Volts = 17.1 / 14.9 Amps
Recommended Circuit Breaker – 20 Amps
Always consult local and national electric codes.

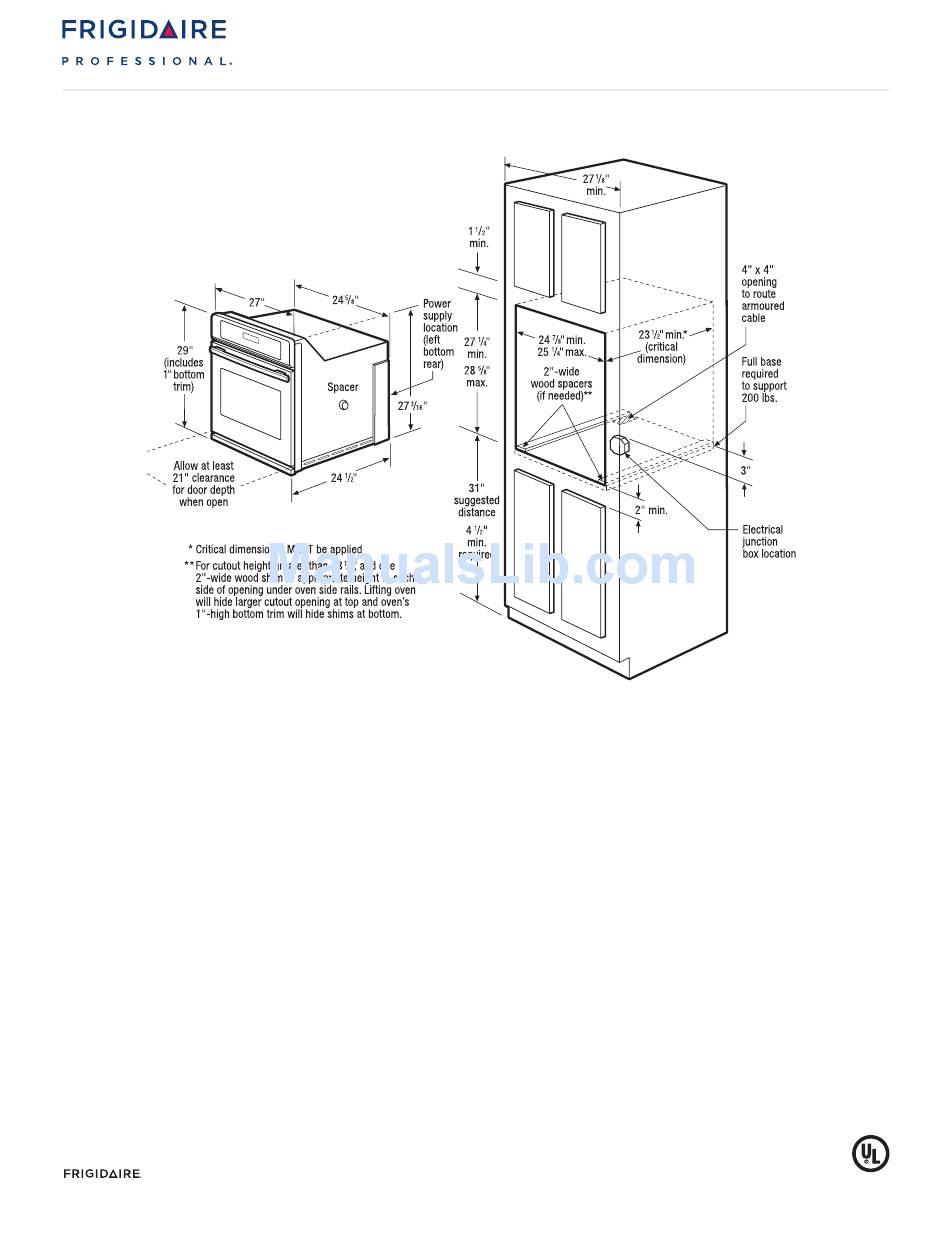

Minimum 21" clearance for oven door depth when open.
Suggested distance from floor is 31". Minimum required distance
is 4-1/2".
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven's faceplate will fit flush against
cabinet front.
To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven's 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
USA
10200 David Taylor Drive
Charlotte, NC 28262
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
FPEW2785K 02/11
Note: For planning purposes only. Refer to Product Installation Guide
1-800-FRIGIDAIRE
frigidaire.com
1-800-265-8352
frigidaire.ca
© 2011 Electrolux Home Products, Inc.
Single Wall Oven
Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs.
Base must be level and cabinet front must be square.
Single Wall Oven is NOT approved to be used in stackable or
side-by-side installation.
Single Wall Oven is approved to be used alone in under-counter
installation or beneath any approved Frigidaire® gas or electric
cooktop. (Refer to Gas or Electric Cooktop Installation Over 30" / 27"
Electric Single Wall Oven Specifications pages on web.)
Single Wall Oven is approved to be used in combination with any
Frigidaire® Warmer Drawer. (Refer to model-specific Warmer Drawer
product page for Combination Installation Specifications.)
Single Wall Oven is approved to be used in combination with
any Frigidaire® Built-In Microwave Oven.
on the web at frigidaire.com for detailed instructions.
Accessories information available
on the web at frigidaire.com
FPEW2785K F
27" Electric
Specifications
subject to change.
Printed in the U.S.A.
