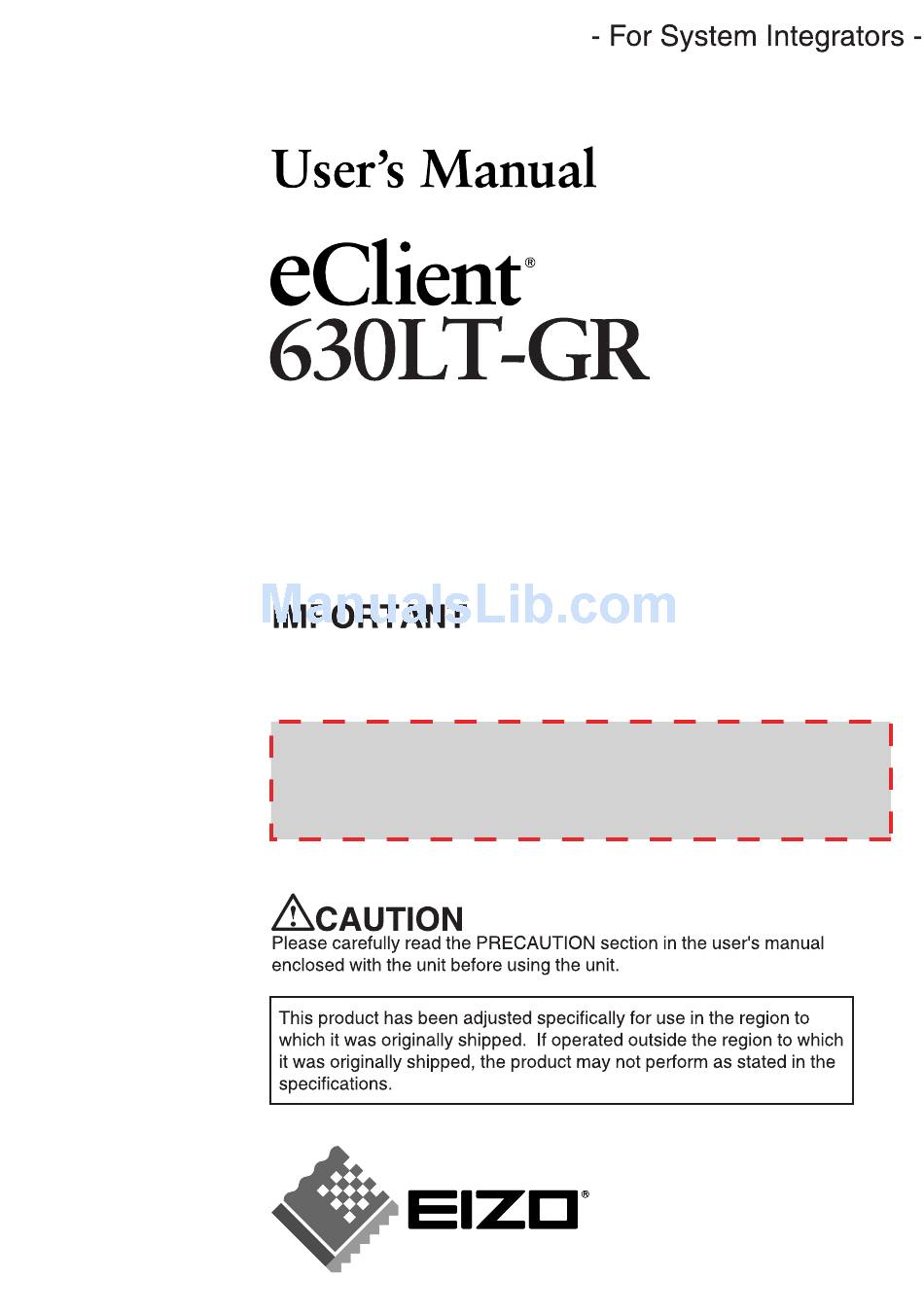

Page 1: Touch Panel
Touch Panel LCD Monitor integrated Windows-based Terminal Please confirm the version of the software built in eClient, and refer to the suited User's Manual (Refer to the User's Manual Version List on next page). This is the manual for the following software version. * Microsoft Windows CE: 2.12 Rev.1.64 or later * Microsoft Terminal Server Client: Ver.6.60 or later * ICA Client: Ver.6.20 [Build 992] or later...
Page 2 User’s Manual Version List A handling description changes with versions of the software built in eClient. refer to below. NOTE • The version of software built in eClient can be checked with a [System]-[ICA] tab of [Terminal Properties]. Microsoft Windows CE 2.12 Software Manual (This Manual)
Page 3: Safety Symbols
Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
Page 4: Table Of Contents
1-5. Overview ...10 2. CONNECTING THE 630LT-GR ... 11 2-1. Setting up the 630LT-GR ...11 2-2. Connecting the 630LT-GR ...12 3. SETTING UP THE 630LT-GR ... 14 3-1. WBT Setup Wizard ...14 3-2. Connection with a LAN card...32 3-3. Dial-Up Connection...39 4.
Page 5 INDEX... 121 TABLE OF CONTENTS...
Page 6: Introduction
Thank you very much for purchasing the EIZO eClient 630LT-GR. 1-1. General Description The 630LT-GR is a terminal which displays applications on a Windows Terminal Server (WTS) or a web site and conveys input by a keyboard or a mouse to the WTS. To operate the 630LT-GR, please connect it to a WTS with Microsoft Window NT Terminal Server Edition or Windows 2000 Server / Advanced Server / Datacenter Server.
Page 7: Features
• Local Web Browser Added as a Default Connection • Wake on LAN Supported *Wake on LAN Wake on LAN is a function starting the 630LT-GR by another computer on LAN. • A Touch Panel and a Stylus Provided 1-3. Package Contents Please contact your local dealer for assistance if any of the listed items are missing or damaged.
Page 8: Controls & Connectors
English 1-4. Controls & Connectors Front (1) Power Switch (2) Power Indicator Green Yellow NOTE • When turning off/on the unit, leave the unit off for a few seconds before turning it on again. (3) Volume (4) Speakers 1. INTRODUCTION Operation Screen saver mode Power save mode...
Page 9 Rear (17) (5) Mouse Connector (6) Keyboard Connector (7) Serial Port (RS-232C) (8) Parallel Connector (9) Power Connector (10) Ethernet Connector (10 Base-T, 100 Base-TX) (11) Headphone Connector (12) Microphone Connector (13) USB Port (Downstream) x 2 (14) PC Card Slot (15) Security Lock* (16) Holes for Mounting an Arm Stand* (17) Stand...
Page 10: Overview
English 1-5. Overview Directions for the 630LT-GR’s Setup 2. CONNECTING THE 630LT-GR 3. SETTING UP THE 630LT-GR 3-1. WBT Setup Wizard 3-2. Connection 3-3. Dial-Up Connection 4. ADDING & CHANGING A CONNETION NAME 4-1. Adding a Connection Name 4-2. Deleting a Connection 4-3.
Page 11: Connecting The 630Lt-Gr
2. CONNECTING THE 630LT-GR This chapter shows how to connect the 630LT-GR to a WTS. 2-1. Setting up the 630LT-GR Please observe the following cautions when connecting the 630LT-GR. WARNING Place the 630LT-GR on a strong, stable surface. A unit placed on an inadequate surface may fall, resulting in injury or equipment damage.
Page 12: Connecting The 630Lt-Gr
• If using a LAN card for the connection, Please Insert a LAN card after finishing the WBT Setup Wizard (see page 32). • Please remove the lid on the side of the 630LT-GR before connecting a modem card. Plug a keyboard and a mouse into the 630LT-GR. If using other devices, please connect them to the appropriate connectors.
Page 13 Be sure to remain within the rated voltage of the power cord. Not doing so may cause in fire or electric shock. The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. 2. CONNECTING THE 630LT-GR...
Page 14: Setting Up The 630Lt-Gr
English 3. SETTING UP THE 630LT-GR This chapter presents how to prepare for a connection with a WTS when the 630LT-GR starts up for the first time. 3-1. WBT Setup Wizard Turn on the power switch. The power indicator turns green.
Page 15 If you accidentally touched the screen in the wrong spot during calibration, you will distort the touch panel calibration. “Calibration measured” window is displayed when you finished. Click the “Enter” key to accept the settings. 3. SETTING UP THE 630LT-GR English...
Page 16 English “WBT Setup Wizard” is displayed. Click [Next>]. End User License Agreement page is displayed. Read the content and click [Accept] to continue. 3. SETTING UP THE 630LT-GR...
Page 17 Refer to step 8 if you select [Yes, use the IP information supplied by DHCP.] Refer to step 7 if you select [No, I will enter static IP information.] necessary information of the 630LT-GR including the IP address will be obtained by the DHCP.
Page 18 IP address page is displayed. [IP Address] ...Type the IP address of the unit. [Subnet Mask]...Type the subnet mask of the network. [Gateway] ...Type IP address of the Gateway machine if necessary. Click [Next>] when finished. 3. SETTING UP THE 630LT-GR...
Page 19 If using WINS Click the [Enable WINS] check box to activate this box. [Primary Server IP]...Type the WINS primary Server IP address. [Secondary Server IP] ...Type the WINS secondary Server IP address. Click [Next>] when finished. 3. SETTING UP THE 630LT-GR...
Page 20 Desktop area resolution and color settings page is displayed. Select the preferable display mode from the two available modes: · 1024 x 768 (256 colors) · 1024 x 768 (65,536 colors) Click [Next>] when finished. 3. SETTING UP THE 630LT-GR...
Page 21 English Browser Setup page is displayed. Select [Yes] if you are setting up a web browser connection. Click [Next>] when finished. Refer to step 11 if selecting [Yes]. Refer to step 15 if selecting [No]. 3. SETTING UP THE 630LT-GR...
Page 22 [Home Page:] ...Type the URL for the page to be displayed when [Search Page:]...Type the URL for the page to be displayed when the Click [Next>] when finished. 3. SETTING UP THE 630LT-GR Internet Explorer starts up or the “Home” button is clicked.
Page 23 [When do you want the browser to underline hyperlinks?] ...Select when you want the hyperlinks to be underlined. [What size font do you want to use?] ...Select a font size of a web page. Click [Next>] when finished. 3. SETTING UP THE 630LT-GR English...
Page 24 [Persistent browser cache]...Click the check box if you want the “History” and [Enable Favorites] ...Click the check box if you want to enable the Click [Next>] when finished. 3. SETTING UP THE 630LT-GR “Cookies” portions of the browser cache to persist across Web sessions.
Page 25 [Port] ...Type the port number. [Bypass proxy server for local (Intranet) addresses.] ...Click the check box if you do not use proxy server for Click [Next>] when finished. web browser connection. server. local addresses. 3. SETTING UP THE 630LT-GR English...
Page 26 * When using a ICA protocol for connection to a Server * When the OS of the Server is Windows NT Server 4.0 Terminal Server Edition Click [Next>] when finished. Refer to step 16 if selecting [Yes]. Refer to step 22 if selecting [No]. 3. SETTING UP THE 630LT-GR...
Page 27 English Printer port selection page is displayed. Select a printer port. The 630LT-GR supports LPT1 and COM1. Click [Next>]. 3. SETTING UP THE 630LT-GR...
Page 28 Refer to step 18 if clicking [User Defined]. Refer to step 19 if not clicking [User Defined]. Printer model and manufacturer settings page is displayed. [Model Name] ...Type a model and manufacturer of your printer. Click [Next>] when finished. 3. SETTING UP THE 630LT-GR...
Page 29 Server and the printer name combinations of more than 31 characters.) Click [Next>] when finished. Default printer setting page is displayed. Select [Yes] to set this printer as the default printer. Select [No] not to set this printer as the default printer. Click [Next>]. 3. SETTING UP THE 630LT-GR English...
Page 30 Select [Yes] to configure another printer. Select [No] to finish printer settings. Click [Next>] when finished. Refer to step 16 if selecting [Yes]. Refer to step 22 if selecting [No]. The last page of the “WBT Setup Wizard” is displayed. 3. SETTING UP THE 630LT-GR...
Page 31 Click [Yes] to restart the 630LT-GR to activate the changes. · Click [No] to finish the “WBT Setup Wizard” and display “Terminal Connection Manager” on the screen. The setting is not activated until the 630LT-GR is restarted. This completes the 630LT-GR settings.
Page 32: Connection With A Lan Card
The following details the installation of a LANs connection. NOTE • Please remove the lid on the side of the 630LT-GR before connecting a LAN card, and then insert a LAN card to the card slot. • For use of an ethernet cable, a LAN card, or a LUCENT ORINOCO Waveland wireless LAN card: See page 32.
Page 33 Select [Use PPP connection or another network adapter]. Click [Devices] tab. NOTE • [Use PPP connection or another network adapter] should be selected for using a LAN card. Otherwise, the LAN card may not work properly. 3. SETTING UP THE 630LT-GR...
Page 34 English The “Devices” page is displayed. Double-click [Network]. “Network Configuration” is displayed. Select a network driver for a LAN card. Click [Properties]. 3. SETTING UP THE 630LT-GR...
Page 35 NOTE • If using the ORiNOCO/WaveLAN of the Agere Systems, double-click the [Wireless Network] icon and set the detailed settings as needed. Refer to the instruction of the LAN card for details. DHCP server. 3. SETTING UP THE 630LT-GR English...
Page 36 ...Select this to assign an IP address to the unit by a [Specify an IP address] ...Select this to type an IP address. [Name Server] tab ...Type an IP address for DNS or WINS. 3. SETTING UP THE 630LT-GR DHCP server.
Page 37 Select [Use PPP connection or another network adapter]. Click [Devices] tab. NOTE • [Use PPP connection or another network adapter] should be selected for using a LAN card. Otherwise, the LAN card may not work properly. 3. SETTING UP THE 630LT-GR English...
Page 38 • Double-click the [CISCO Aironet] icon on the “Devices” tab and set the detailed utility as needed. Refer to the instruction of the LAN card for details. Click [OK] to save the settings and close the “Terminal Properties” dialog box. This completes the LAN card settings. 3. SETTING UP THE 630LT-GR...
Page 39: Dial-Up Connection
• Another type of connection using a modem, a dial-in connection, is available to connect to the WTS with an ICA protocol. Please refer to the page 52. [Dial-in Connection] 630LT-GR Press “F2” key in the “Terminal Connection Manager”. RAS Server Telephone Lines 3. SETTING UP THE 630LT-GR English FTP Server...
Page 40 English “Terminal Properties” is displayed. Click the [Network] tab. The network setting window is displayed. Select [Use PPP connection or another network adapter]. Click [PPP] tab when finished. 3. SETTING UP THE 630LT-GR...
Page 41 (In case the area code of the connection name is different from the present area code.) 3. SETTING UP THE 630LT-GR English...
Page 42 [Dialing Patterns...] ...Click the button and use this group box to set your Click [OK] when finished. Click [OK] of the [Dialing Properties] when finished. “Terminal Properties” is displayed. 3. SETTING UP THE 630LT-GR “Create New Location” dialog box is displayed. Enter a new sender’s location and click [OK]. sender’s location.
Page 43 [Extra Settings (Special modem commands may be inserted into the dial strings)] ...Enter a special modem command if required. Click [OK] on [Device Properties] when finished. “Terminal Properties” will be displayed. 3. SETTING UP THE 630LT-GR English...
Page 44 [Use server-assigned DNS or WINS server IP address] ...Click the box to use a server-assigned DNS or WINS [Specify DNS or WINS server IP address] ...Enter an DNS or WINS server IP address provided. 3. SETTING UP THE 630LT-GR server IP address.
Page 45 Click [OK] in the “Terminal Properties” when finished. The “Terminal Properties” saves the settings and close. This completes the dial-up connection settings. A small window will be displayed on the right bottom of the window if the settings are successfully installed. 3. SETTING UP THE 630LT-GR English...
Page 46: Adding & Changing Aconnetion Name
English 4. ADDING & CHANGING A CONNETION NAME This chapter shows how to add, delete, and modify connection names to a WTS. All the settings are managed in the “Terminal Connection Manager”. 4-1. Adding a Connection Name These are settings for the Server connection. Each protocol has different settings.
Page 47 In Use of RDP Protocol Display [Terminal Connection Manager]. Click the [Configure] tab and [Add...] to set the connection information of the WTS. Protocol selection dialog box is displayed. Select the “Microsoft Remote Desktop Client” (RDP) Click [OK] when finished. 4.
Page 48 English “WTS Connection Wizard” is displayed. [Name]...Type the connection name to the Server. Name the [Server] ...Type the IP address or the name of the Server, or [Low Speed Connection]...Click the check box when making a low speed Click [Next>] when finished. 4.
Page 49 English Automatic Logon setting page is displayed. Type the name, the password, and the domain name of the WTS beforehand to enable an Automatic Logon to the WTS after connecting. NOTE • If an Automatic Logon is not needed, click [Next>]. Click the check box of the [Automatic Logon] to enable the item.
Page 50 English Specifying an application to run after connecting to a WTS is displayed. Select whether to display the Windows desktop screen or start up an application. [Desktop] ...Select this to start the Windows desktop screen when [Application file name:] ...Select this to start an application when you connect. [Working directory:] ...Input the name of the application and the working NOTE •...
Page 51 Click [Finish] to return to the “Terminal Connection Manager” dialog box. The registered connection name is displayed in the “Terminal Connection Manager” dialog box. This completes the setup of the 630LT-GR for connection to a WTS with the RDP protocol. NOTE •...
Page 52 English In Use of the ICA protocol Click the [Configure] tab. Click [Add...]. “New Connection” dialog box is displayed on the screen. Select “Citrix ICA Client” (ICA). Click [OK] when finished. 4. ADDING & CHANGING A CONNETION NAME...
Page 53 “Specify Connection Type” dialog box is displayed. [Network Connection]...Select for network connection. [Dial-In Connection]...Select for dial-in connection. Click [Next>] when finished. Go to step 4 when selecting [Network Connection]. Go to step 5 when selecting [Dial-In Connection]. Citrix Server or published application selection page is displayed. 1) Select [Citrix Server (WTS) ] or [Published Application].
Page 54 [TCP + HTTP browser]...Select this when not using a UDP because of the [SSL + HTTPS browser] ...This is not available with 630LT-GR. Click [OK] to return to the previous page and save the adjustments. 3) Click [Refresh] to refresh the list to the newest information.
Page 55 “Dial-In Devices” dialog box is displayed. NOTE • Enter your information in the pertinent fields. • A dial-in connection is not available during a dial-up connection. Disconnect the dial-up connection before making dial-in connection. [Dial-In Device:] ...Select the device name connected to the modem. [Phone Number] ...Enter a country code, an area code, and a phone [Use Tone Dialing]...Click to use tone dialing.
Page 56 English [Connection Preference] [Baud Rate]...Set the data transmission rate from 110 to 115,200. [Data Bits]...Set the data bits. [Parity]...Set to check the data’s appropriate transmission. [Stop Bits] ...Set the length of the Stop Bits. [Flow Control] ...Set Flow Control. [Call Option] tab [Cancel the call if not connected within] ...Click the box and type the interval to the right box [Wait for dial tone before dialing]...
Page 57 A title for the ICA connection page is displayed. Type a connection name of the WTS. Click [Next]. An application selection page is displayed. Specify the command line and the working directory of an application to operate. NOTE • Leave these fields blank and click [Next>] to run a Windows desktop. [Command Line:]...Type the application name and the path.
Page 58 Colors selection page is displayed. Set the colors of the WTS’ screen. NOTE • Thousands can be selected only when the color setting of the 630LT-GR is 65536 colors. Click [Next>] when finished. 4. ADDING & CHANGING A CONNETION NAME...
Page 59 ...Click the check box to install the printer at the [ICA [Compress Data Stream] ...Click the check box to reduce the amount of data [Enable Sound:] ...Click the check box to enable sound of 630LT-GR. [Sound Quality:] ...Select the sound quality of the 630LT-GR.
Page 60 English [Encryption Level:]...Encryption level can be selected from RC5 (128 bit - Click [Next>] when finished. 4. ADDING & CHANGING A CONNETION NAME Login Only), basic, RC 5 (40 bit), RC5 (56 bit), RC5 (128 bit). The level becomes higher as the bit gains. RC5 (128 bit - Login Only) indicates the 128 bit level security available only at logon.
Page 61 [Address of SOCKS proxy to use / Port] ...Type the IP address of the SOCKS proxy server and [Address of SSL relay to use / Port] ...These are not available with 630LT-GR. Click [Finish] when finished. [Terminal Connection Manager] is displayed.
Page 62 English This completes the setup of the 630LT-GR for connection to a Server with the ICA protocol. NOTE • Please repeat the step 1 to 11 when you adding another connection name. 4. ADDING & CHANGING A CONNETION NAME...
Page 63: Deleting A Connection
4-2. Deleting a Connection This function deletes an existing Connection Name. Display the “Terminal Connection Manager” dialog box. Click the [Configure] Tab. Select the Connection Name you want to delete. Click [Delete]. “Confirm Connection Delete” dialog box is displayed. Click [Yes] to delete the information of the selected WTS. 4.
Page 64: Editing A Connection
English 4-3. Editing a Connection This function modifies attributes of the WTS connections. Display the “Terminal Connection Manager” dialog box. Click the [Configure] Tab. Select the connection you want to modify. Click [Edit...]. [Edit Connection] dialog box or [Edit Connection Details] is displayed.
Page 65 • For ICA Connection (Please refer to pages 52 to 61 for each setting.) [Server/Dial-In] tab ...Either Server or Dial-In tab is displayed depending on the connection type. [Server] Tab (for LAN connection) To change the WTS / the public application to use [Dial-In] Tab (for Dial-In connection) To change settings of the Dial-In connection [Application] tab...To change a description of an application to run...
Page 66 English NOTE • When changing settings in the Dial-In connection, click and show the [Call Option] tab of [Device Properties] of the [Dial-In] tab before clicking [OK] to close the window. 4. ADDING & CHANGING A CONNETION NAME...
Page 67: Setting An Autostart Connection
4-4. Setting an Autostart Connection This function configures a connection to start automatically each time the 630LT-GR is turned on. (This function is available for a LAN connection.) Display the “Terminal Connection Manager” dialog box. Click the [Configure] tab. Select the desired Connection Name for Autostart Connection.
Page 68: Logon & Logoff
This chapter shows how to log on to and log off from a WTS. 5-1. Logon to a WTS / Logoff from a WTS Logon to a WTS Turn on the 630LT-GR. “Terminal Connection Manager” dialog box is displayed. Please follow the instruction depending on the network environment of the 630LT-...
Page 69 Manager” dialog box, press [Ctrl] + [Alt] + [Home] keys. (See page 67 on a default connection server setting.) The 630LT-GR connects to the WTS, and the “Log On to Windows” dialog box is displayed. Type your [User name] and [Password], and click [OK] to log on to the WTS.
Page 70: Multi Session
English Multi Session You can log on to the WTS with the several connection names, and switch the active sessions. • Logon Log on with a Connection Name, as following the previous steps. Press [Ctrl] + [Alt] + [End] keys after logon. “Terminal Connection Manager”...
Page 71: Logoff From The Wts
If a dial-up connection is running, click the active button of the window on the right of the screen. Clicking the button Disconnects the dial-up connection. Shut down the 630LT-GR. There are 3 ways to shut down the unit. • Press the power button. “Shut down the eClient” dialog box is displayed. Select “Shut down”.
Page 72 If a dial-up connection is running, click the active button of the window on the right bottom of the screen. Clicking the button Disconnects the dial-up connection. Shut down the 630LT-GR by following Step 2 of “If your 630LT-GR starts its operation with a desktop”. NOTE •...
Page 73: Opening/Closing A Local Web Browser
5-2. Opening/Closing a Local Web Browser Opening a Local Web Browser Turn on the 630LT-GR. “Terminal Connection Manager” dialog box is displayed. Please follow the directions relevant on the network environment of the 630LT- (1) If the web server is on the same network (Intranet): Go to step 3.
Page 74 If a dial-up connection is made, click the active button on the right bottom of the screen. Clicking the button Disconnects the dial-up connection. Shut down the 630LT-GR. There are 3 ways to shut down the unit. • Press the power button. “Shut down the eClient” dialog box is displayed. Select “Shut down”.
Page 75: Using The Terminal Properties
6. USING THE TERMINAL PROPERTIES This chapter presents how to modify all settings of the 630LT-GR using the “Terminal Properties”. To display the “Terminal Properties” during logging on, press F2 in the “Terminal Connection Manager” dialog box. (Press Ctrl + Alt + End to display the “Terminal Connection Manager”.)
Page 76: Resetting To Default
English Resetting to Default Click [Reset the terminal to factory-default property settings] check box. The “System Settings Change” dialog box is displayed. Click [Yes]. “Terminal Properties” is displayed. Click [OK]. “Terminal Setting Change” dialog box is displayed. Click [Yes] to restart the terminal. “WBT Setup Wizard” will be displayed after restarting the terminal.
Page 77: Input Devices Settings
6-2. Input Devices Settings Click the [Input] tab to modify keyboard, NumLock Key, mouse characteristics, and touch panel calibration. Keyboard Settings [Keyboard] [Locale]...Selects a keyboard language. [NumLock Enable on Boot UP] ...enables/cancel NumLock function on start-up. [Character Repeat] [Repeat delay] ...Allows adjusting the amount of time that elapses [Repeat rate] ...Allows adjusting the speed at which a character before begins repeating when you hold down a key.
Page 78: Mouse Settings
English Mouse Settings Click [Properties...] to display the [Mouse Properties]. [Button Configuration] ...Assigns the primary mouse button and the secondary [Speed] ...Adjusts the speed at which the pointer moves on your [Acceleration]...Adjusts the speed the mouse pointer accelerates as you Touch Panel Properties Click [Properties...] to display the “Touch panel Properties”.
Page 79 [Mouse Right Click Emulation] [Enable right click emulation] ...Holding stylus for a fixed period of time emulates mouse right button click. Click the [Enable right click emulation] check box , set a holding time, and adjust holding sensitivity. [Calibration] This enables to recalibrate the touch panel. Click [Recalibrate] to show the “Touch Panel calibration”.
Page 80 Click [OK] to close “Terminal Properties” and save the adjustments. The “Terminal Settings change” dialog box will be displayed when the [Locale:], [Repeat delay:], and [Repeat rate:] are changed. Click [Yes] and restart the 630LT-GR. 6. USING THE TERMINAL PROPERTIES...
Page 81 NOTE • Changing the Double-click speed, and Double-click width and height When you have difficulty with double-clicking on the touch panel with a stylus (or a fingertip): [Double-click speed] Click Window’s [Start] and select [Settings] - [Control Panel]. Double-click [Mouse] and adjust the speed at [Double-click speed]. [Double-click width and height] Click Window’s [Start] and select [Run…].
Page 82: Colors & Power Save Settings
English 6-3. Colors & Power Save Settings Click the [Display] tab to modify display parameters such as colors, screen saver, and power save. Resolution and Colors [Desktop Area and Colors] [Details] ...Adjusts the resolution and colors of the screen. Screen Saver [Screen Saver] [Enable Screen Saver] ...Click the [Enable Screen Saver] check box and set an [Enable Power Save] ...Interacts with [Screen Saver] and shift the state of the...
Page 83 Brightness [Contrast/Brightness] [Settings] ...Enables to adjust the brightness of the screen. [Enable Contrast/Brightness control from Keyboard] Click [OK] to close “Terminal Properties” and save the adjustments. The “Terminal Settings change” dialog box will be displayed to restart the terminal and activate the adjustments when the [Details], [Wait] period of [Screen Saver], or [Enable Contrast/Brightness control from Keyboard] of [Brightness/Contrast] is changed.
Page 84: Network Settings
NOTE • All settings shown here are previously adjusted on the “WBT Setup Wizard”. • Please set the properties depending on the 630LT-GR connection settings. [Use PPP connection or another network adapter] ...Click to use a modem connection to the WTS.
Page 85 Click [OK] to show the [Terminal Settings Change] dialog box. Click [Yes] to restart the 630LT-GR. 630LT-GR from the DHCP server every time the 630LT-GR is turned on. Refer to “Practical Setup” on page 107 for details. server is required for the setting.
Page 86 English NOTE • The [Terminal Settings Change] dialog box will not be displayed when [Terminal Name], [DHCP Options], and [Advanced Network…] are changed, though the unit needs to be restarted to set the adjustment effective. 6. USING THE TERMINAL PROPERTIES...
Page 87: Printer Settings
English 6-5. Printer Settings Click [Printers] tab You can add, delete and change the settings of the printer in this section. NOTE • The 630L supports a LPT1 port and COM1 port. • Use a RDP protocol to set the printer's adjustment. If you are using the ICA protocol, please refer to the instruction manual of the Citrix MetaFrame.
Page 88 English Adding another printer settings This enables to add a printer when no printer is connected to the LPT1 port and COM1 port. Select LPT1 or COM1, and then click [Add]. “Printer Properties” dialog box is displayed. [Friendly Name]...Name the printer or use the indicated name. (Some •...
Page 89: Modifying The Settings
“Terminal Properties” dialog box. printer, the name combination must be 31 character or less.) 630LT-GR corresponds to only LPT1 port, and only one printer at a time can be installed. The installed printer will be always the default printer.) 6. USING THE TERMINAL PROPERTIES...
Page 90: Browser Settings
English 6-6. Browser Settings Click [Web] tab to adjust the browser settings of 630LT-GR. [Enable Web Connection] ...Click the check box for web connection. [Home page:] ...Type the URL for the page when “Home” button of [Search page:]...Type the URL for the page when “Search” button of [Persistent browser cache]...Click the check box if you want the “History”...
Page 91 [Use LAN (no autodial)] ...Click the check box when you use LAN or manually dial-up for the web connection. (Please make sure to click the check box for the 630LT-GR. Autodialing may not operate appropriately.) [Autodial name:]...Type an autodial name to make a [Web Connection] and a dial-up connection at the same time when dialing-up for the web connection.
Page 92 English [Proxy Information] ...Click this for proxy settings. [Access the Internet using a proxy server] ...Click the check box if you use proxy server for the [Proxy server name or IP address:] ...Type the name of the computer running the proxy [Port] ...Type the port number.
Page 93: Dial-Up (Ppp) Connection Settings
English 6-7. Dial-Up (PPP) Connection Settings Click [PPP] tab to adjust the dial-up settings of 630LT-GR. The following details the installation of a dial-up connection to a WTS or a Web Server. (To use a dial-up connection requires an RAS server in operation.) Please refer to page 39 for each setting.
Page 94: Ica Settings
English 6-8. ICA Settings Click [ICA] tab to confirm information about Citrix ICA Client version and to change the settings when connecting to the Citrix Server with ICA protocol. NOTE • The ICA settings are effective only when the unit is connected to the WTS with ICA protocol.
Page 95 [Hotkeys] tab...Enables to change the hotkeys when logging on to the NOTE • No hotkeys are set in the 630LT-GR in the factory default. [Preference] tab...Select Colors sent from WTS, and type a client name [Server Location] tab ...Type the server location when the WTS is not on the Server.
Page 96 WTS in the [Server Location] tab for a WTS and published application browsing to work. • If the Firewall settings are changed at the 630LT-GR, it is impossible to cancel the settings of a specific connection name. To change the Firewall settings, select a specific connection name and modify them or add a new connection name and change the settings.
Page 97: Device Settings
English 6-9. Device Settings Click [Device] tab to confirm date/time, LAN card properties, and speakers of the 630LT-GR. Network Adapter Settings Configure the properties of the network drivers installed on your device. Please refer to page 32 for details. 6. USING THE TERMINAL PROPERTIES...
Page 98: Sound Settings
English Sound Settings Configure the sound properties of the 630LT-GR. Double-click the “Volume & Sounds” icon. “Volume & Sounds Properties” is displayed. [Volume] tab...Click the check boxes to enable sounds for events, [Sounds] tab...Select sounds for each case. Click [OK] to return to the “Terminal Properties” dialog box.
Page 99: Date/Time Settings
[NTP Server]Tab...Synchronize time with the NTP Server. NOTE • Synchronizing time at startup is effective when the 630LT-GR is connecting WTS/Web Server using a network connector on the rear. • Getting the NTP Server information from the DHCP Server needs to satisfy the...
Page 100: Product Information, Security, & Updating Software
English 6-10. Product Information, Security, & Updating Software Click [System] tab to confirm information about the 630LT-GR, to set the security, and to update firmware. Product Information [Software] [Microsoft Windows CE] ...Microsoft Windows CE Version, Revision [Windows Terminal Server Client] ...Window Terminal Server Client Revision...
Page 101: Security Settings
Security Settings This enables settings on network information of the WTS invisible to prevent from undesirable change. When the security is active, the following settings become. • “Terminal Connection Manager” * [Configure] tab • “Terminal Properties” * [General] tab... [Reset the terminal to factory - default settings] * [Network] tab * [Printers] tab * [PPP] tab...
Page 102: Administration Console
Click [OK] on the “Terminal Properties” to save the settings and close the “Terminal Properties”. Security becomes canceled. Administration Console Assign the 630LT-GR a server with the Network Administrator, utility software for eClient. Other servers with the Network Administrator will not be able to control the 630LT-GR after setting the administration console.
Page 103: Software Updating
Software Updating You can update the built-in software. NOTE • Before updating, please complete the following: * Copy the update file (*.bin) to the accessible file folder of the FTP Server. * If the WTS is connected with LAN, close all the connections to the FTP Server. * Make a dial-up connection if it is adopted to connect the WTS.
Page 104 English The “Software Update” dialog box appears. [Server:] ...Type IP address or full domain name of the FTP [User Name:]...Type the user name to connect the FTP Server. [Password:] ...Type the password for the user name to connect the [File Name:] ...Type the folder and copied file name located in the 6.
Page 105 Click [Network Test]. If the settings are correct, the following message is displayed. Click [OK]. Click [Download]. The following message is displayed when you successfully download the software. Click [OK] and restart the 630LT-GR. 6. USING THE TERMINAL PROPERTIES English...
Page 106 Update" settings once again and download the software from the FTP Server. Do not turn off the unit when this dialog box is displayed until all the process is completed. The 630LT-GR will not restart correctly. 6. USING THE TERMINAL PROPERTIES...
Page 107: Practical Setup
NOTE • For DHCP Option settings, confirm the following: * The 630LT-GR is connected to the WTS/Web server through built-in LAN. * A DHCP Server is used for obtaining the IP address. • If you need to change the following settings from the defaults, please change them before using the DHCP option function.
Page 108 English ICA Tab Hotkeys Colors Client Name Server Location Firewall Settings Device Volume Enable Sounds for: Scheme Date Time Time Zone NTP Server 7. PRACTICAL SETUP Disable 256 colors eClient******(Last 6 digits of the Mac address) Automatically Found Disabled Maximum Events, Applications, Notifications No Sounds January 1...
Page 109: Dhcp Server Settings
DHCP Server Settings Please open DHCP settings to configure each DHCP Option as follows. [Key] ...Set the value as “EIZO”. (The 630LT-GR will not [Server] ...Type an IP address of the Server installing an update [User Name]...Type the user name to logon to the FTP Server.
Page 110 English NOTE • Making a Registry File to Connect to a WTS/Web Server. Please refer to the example below, make a registry file, and save it in Unicode format. Please change the italic bold phrases as necessary. - ConnectionName : Type the connection name in the “Terminal Connection Manager”. - TerminalServerAddress : Type the IP address or the full domain name of the WTS.
Page 111 Command argument to connect to a Fixed – Command (executable file) to connect to a WTS Fixed – Assign the ratio of the 630LT-GR screen to the displayed Window of the WTS. Name displayed on the Connection Manager IP address or full domain name of...
Page 112 IP address from the DHCP Server every time the unit is turned on. NOTE • If the DHCP Option is used to setup the 630LT-GR for the first time, “Terminal Connection Manager” will appear because the unit automatically receives information from the DHCP Server.
Page 113: Troubleshooting
8. TROUBLESHOOTING This page presents problem that can be corrected by the user. If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems 1. No picture is displayed on the screen. 2. The following messages appear on screen...
Page 114 6. Finger prints appear on the screen. NOTE • Please do not connect and disconnect a keyboard or a mouse repeatedly while the 630LT-GR is in operation, as this may cause the 630LT-GR damage. 8. TROUBLESHOOTING When the screen image has been changed after displaying the same image for a long period, afterimages may appear.
Page 115: Cleaning
9. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.
Page 116 If you find that the pointer on the screen doesn’t move smoothly, your mouse needs to be cleaned. Periodically clean the mouse for your operation. (1) Turn off the 630LT-GR. (2) Turn the mouse upside down and remove the mouse trackball cover. Press the cover towards “Open”...
Page 117: Specifications
10. SPECIFICATIONS CPU and Memory Memory Speakers Display LCD Panel Dot Pitch Resolution Viewable Image Size Display Color 256 / 65536 colors Touch Panel Complying Protocol Software Complying Software for Windows Terminal Server Mouse Power Supply Power Consumption Interface Connector Keyboard, Mouse USB Port:...
Page 118 English Weight Environmental Specifications Temperature Certifications and Standards 100 -120 VAC range 200-240 VAC range Dimensions 135 (5.3) 10. SPECIFICATIONS 5.7 kg (12.6 lbs.) (without the tilt stand Operating: 0°C to 35°C (32°F to 95°F) Storage: -20°C to 60°C (-4°F to 140°F) Humidity 30 % to 80 % R.H.
Page 119: Reference
11. REFERENCE 11-1. Attaching an Arm Stand The 630LT-GR can be used with an arm stand by removing the tilt stand and attaching the arm stand to the terminal. NOTE • Use an arm stand that satisfies the following. - When using the 630LT-GR with an arm stand, the arm stand must be VESA approved : Use an arm stand with a 75 mm x 75 mm hole spacing on the arm mounting pad.
Page 120 English Attach an arm stand to the 630LT-GR securely. WARNING Install the unit securely when attaching to an arm stand. When attaching an arm stand, please refer to the user’s manual of the arm stand and install the unit securely with the enclosed screws.
Page 121 INDEX ADDING & CHANGING A CONNETION NAME ...46 Administration Console...102 Application to Run...50, 57 Attaching an Arm Stand...119 Automatic Logon ...49, 58 Autostart Connection ...67 Brightness...7, 83 Browser Setup ...21, 90 Calibration...79 Citrix Server or Published Application Selection...53 Cleaning...115 Client Name ...95 Colors...20, 58, 82, 95 Compress Data Stream ...59 Connecting the eClient 630L ...11...
Page 122 English RAS...39 RDP ...46, 47 Reference ...119 Resetting to Default ...76 Resolution ...20, 82 Screen Saver ...82 Security Settings...101 Serial Port ...7 Server Location...95 Setting up...11 Software Updating ...103 Sound Settings...59, 98, 99 Speakers...8 Specifications...117 Specify an IP Address ...18 Specify Connection Type ...53 SpeedScreen ...59 Stylus ...7...
