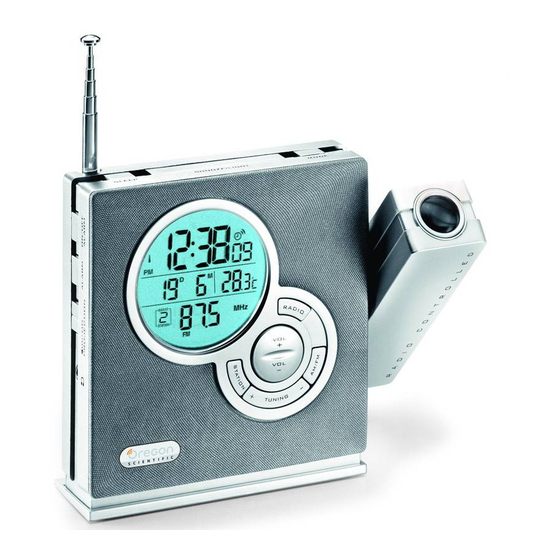

Oregon Scientific RRM968P Instruction Manual

RADIO-CONTROLLED PROJECTION
CLOCK WITH DIGITAL TUNING
AM/FM RADIO
MODEL NO.: RRM968P/RRM968PU
INSTRUCTION MANUAL
INTRODUCTION
Congratulations on your purchasing the Radio-controlled projection
Clock with digital tuning AM/FM radio RRM968P/RRM968PU.
The unit is a multi-functional radio-controlled clock. The RRM968P
- the Central Europe model - is designed to automatically synchronize
its current time and date when brought within an approximate
1500km radius of the radio signal generated from Frankfurt,
Germany (DCF77). The RRM968PU - the UK model - will do the
same when brought within range of the radio signal MSF-60
generated from Rugby, England.
This unit featured with a projection function that allows the user to
display either (1) the Current Time with Indoor Temperature or (2)
the pre-set Alarm time with Indoor Temperature on the ceiling, wall
or other flat surface. In addition, the Alarm status will also be projected,
which is indicated by the Alarm-on icon. The image projected is in a
deep red color which is easily seen in the dark.
This unit also comes with an digital tuning PLL (Phase Lock Loop)
AM/FM radio with 16 user-preset stations (8 for AM and 8 for FM
radio). A Radio Sleep-Timer (auto-off) function is also included.
1
RRM968PM_EN_R0
Other favourable features include EL back-light, indoor temperature
display, hourly-chime function, and user-selectable daily beep alarm
with 8-minute snooze function or Wake-up-to-Radio Alarm.
KEY CONFIGURATION & FEATURES

FRONT VIEW

A1. 3-Line LCD Display
- Displays the time, date, indoor temperature and radio function
