T
O INSTALL THE
2005 Electronics for Imaging, Inc.

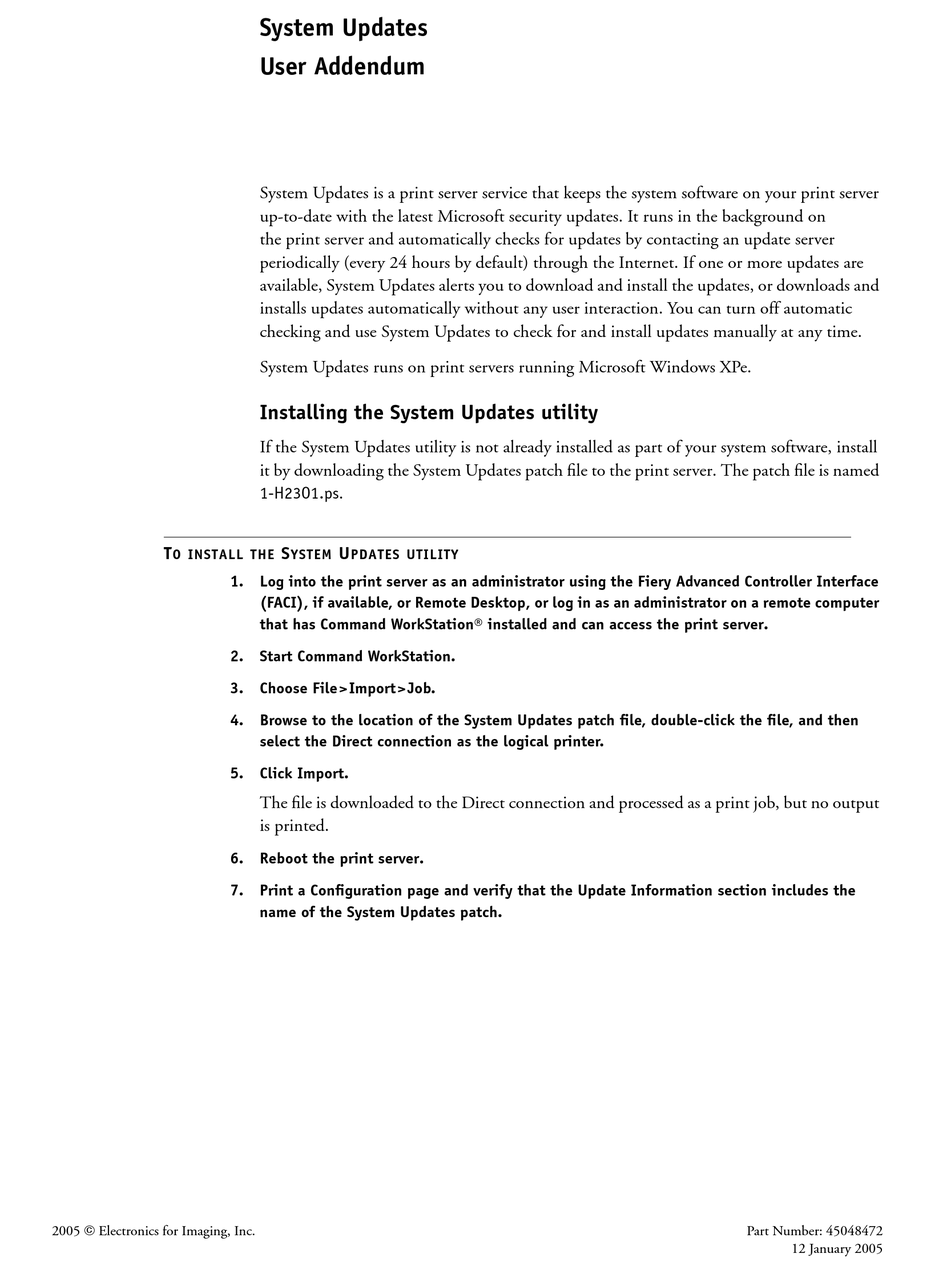

System Updates
User Addendum
System Updates is a print server service that keeps the system software on your print server
up-to-date with the latest Microsoft security updates. It runs in the background on
the print server and automatically checks for updates by contacting an update server
periodically (every 24 hours by default) through the Internet. If one or more updates are
available, System Updates alerts you to download and install the updates, or downloads and
installs updates automatically without any user interaction. You can turn off automatic
checking and use System Updates to check for and install updates manually at any time.
System Updates runs on print servers running Microsoft Windows XPe.
Installing the System Updates utility
If the System Updates utility is not already installed as part of your system software, install
it by downloading the System Updates patch file to the print server. The patch file is named
.
1-H23O1.ps
S
U
YSTEM
PDATES UTILITY
1. Log into the print server as an administrator using the Fiery Advanced Controller Interface
(FACI), if available, or Remote Desktop, or log in as an administrator on a remote computer
that has Command WorkStation® installed and can access the print server.
2. Start Command WorkStation.
3. Choose File>Import>Job.
4. Browse to the location of the System Updates patch file, double-click the file, and then
select the Direct connection as the logical printer.
5. Click Import.
The file is downloaded to the Direct connection and processed as a print job, but no output
is printed.
6. Reboot the print server.
7. Print a Configuration page and verify that the Update Information section includes the
name of the System Updates patch.
Part Number: 45048472
12 January 2005
Advertisement
Related Manuals for Xerox DocuColor 8000
Summary of Contents for Xerox DocuColor 8000
- Page 1 System Updates User Addendum System Updates is a print server service that keeps the system software on your print server up-to-date with the latest Microsoft security updates. It runs in the background on the print server and automatically checks for updates by contacting an update server periodically (every 24 hours by default) through the Internet.
- Page 2 Page 2 Configuring the System Updates utility To configure System Updates, you can specify proxy server settings and select which method of automatic checking to use (if any). Configure System Updates from the FACI (if available) or Remote Desktop, or from a web browser locally or remotely.
- Page 3 Page 3 • : When updates are Download the updates automatically and notify (faster installation) available, a pop-up message appears next to the System Updates icon in the Windows taskbar on the FACI (or Remote Desktop). The updates are downloaded automatically but not installed.
- Page 4 Page 4 Configuring System Updates from a web browser To configure System Updates, specify proxy server settings and select which method of automatic checking to use (if any). O SPECIFY PROXY SETTINGS AND CONFIGURE CHECKING FOR UPDATES THROUGH A WEB BROWSER 1.
- Page 5 Page 5 Checking for updates manually and installing new updates Instead of (or in addition to) having System Updates check for updates automatically, you can also use System Updates to check for updates manually from the FACI (if available) or Remote Desktop.
- Page 6 Page 6 FACI O INSTALL NEW UPDATES FROM THE EMOTE ESKTOP 1. Turn off the copier/printer before you install updates. 2. Click Install All. The updates are downloaded (if they have not already been downloaded) and installed. 3. If the updates require a server restart or a reboot, the print server is automatically restarted or rebooted when installation is complete.
