Tripp Lite B020-008 User & Installation Manual

B019-000 2-Post
Rackmount Brackets
Designed for use with models:
B020-008 (8-Port Console
KVM Switch)
B020-016 (16-Port Console
KVM Switch)
B021-000 (Rackmount Console)

Installation

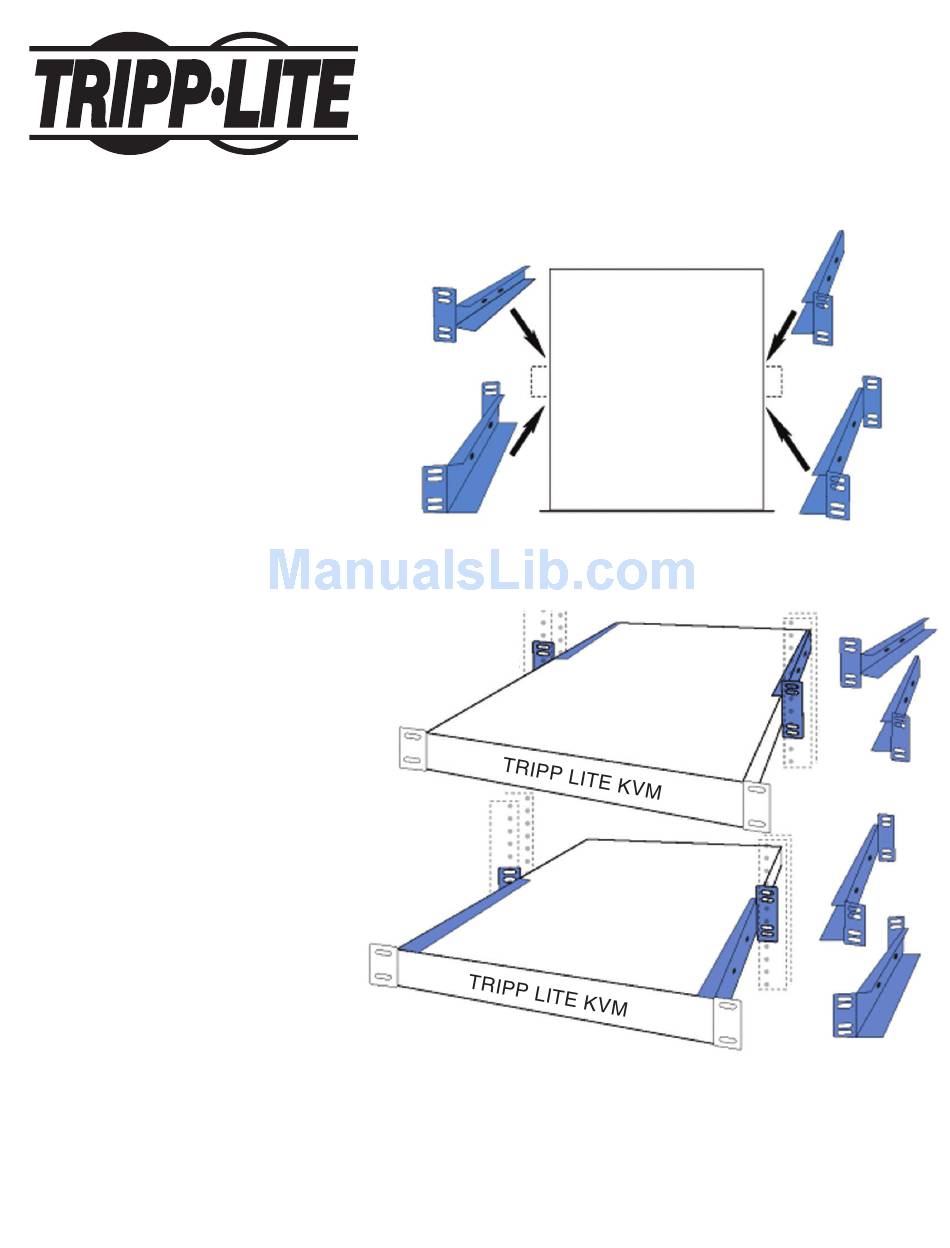

1. Attach brackets A, B, C and D to
the 2-post rack in the locations
identified above.
2. Slide the console or console KVM
into place.
3. Be sure to screw the front
rackmount tabs on the console to
the front tabs on brackets A and B.
This will secure the console in
the rack.
4 The console can be opened with
the drawer either in the extended
or closed position
NOTE: Follow these installation instructions to ensure
correct performance and to prevent damage to unit or
to its connected devices.
Copyright © 2005 Tripp Lite. All rights reserved. The policy
of Tripp Lite is one of continuous improvement. Actual products
may differ slightly from photos.
Tripp Lite World Headquarters • 1111 W. 35th Street, Chicago, IL 60609 USA
(773) 869-1234, www.tripplite.com
User's Installation Manual
C
A
C
A
TRIPP LITE KVM
B
D
B
D
200502031 93-2429
