  • Page 1

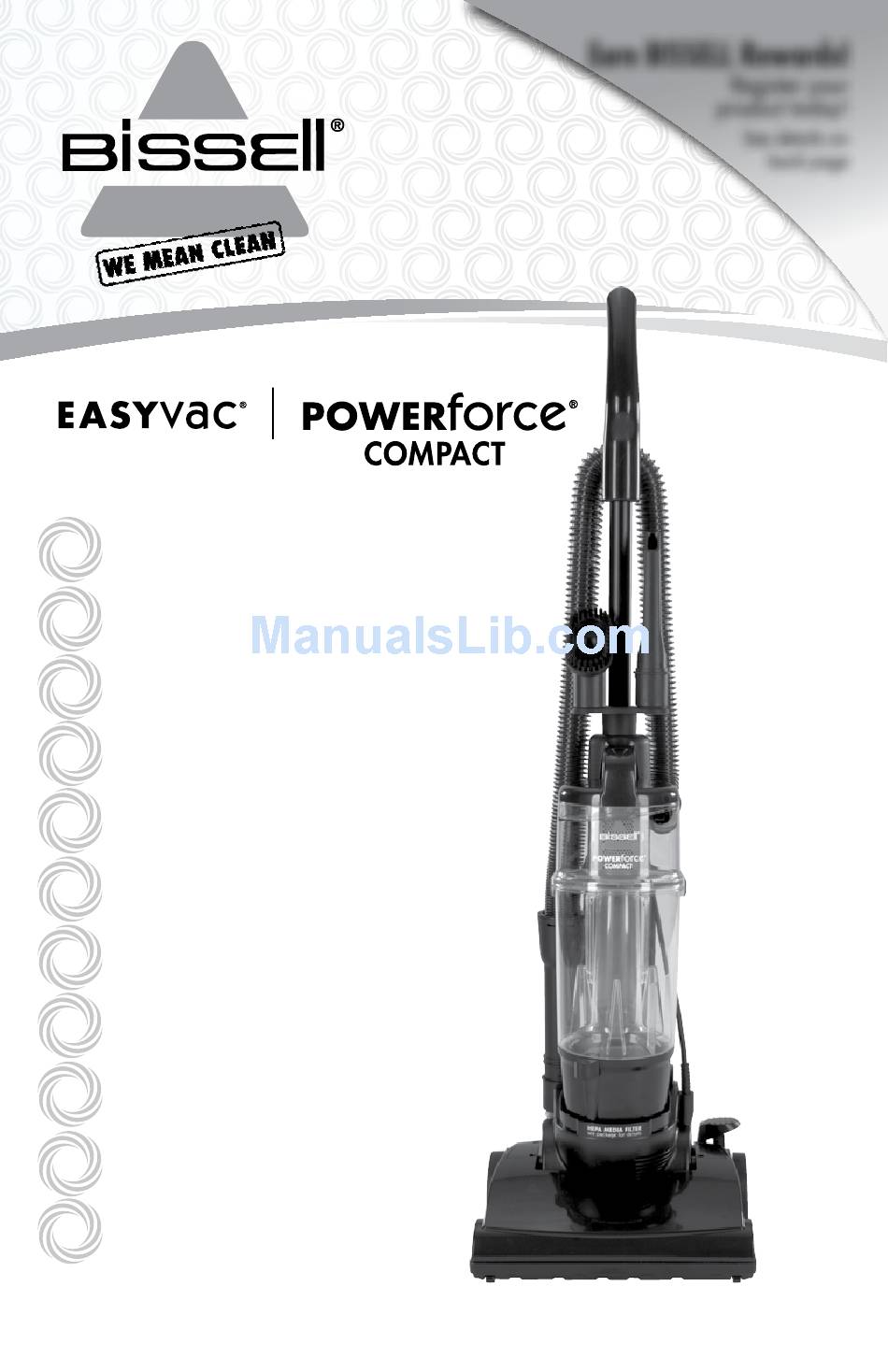

    Earn BISSELL Rewards! egister your product today! See details on back page USER'S GUIDE 23T7 SERIES Thank You Safety Instructions Product View Assembly Operations Maintenance and Care 8-12 Troubleshooting Replacement Parts Warranty Product Registration Consumer Services Product images may vary...

  • Page 2

    Your BISSELL vacuum is well made, and we back it with a limited one year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

  • Page 3

    MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, Keep hair, loose clothing, fingers, and all ■ basic precautions should be observed, parts of body away from openings and including the following: moving parts. Turn off all controls before plugging or ■...

  • Page 4: Product View

    roduct view Handle Cord Hook Crevice Tool Dusting Brush Stretch Hose Accessory Holder Carrying Handle (select models) Upper Quick Tank Release™ Cord Wrap Primary Separator Power Cord Easy Empty™ Dirt Cup Dirt Cup Release Lever Power Switch Pedal Filter Cup Hose Holder (Inner and Handle Recline...

  • Page 5: Assembly, Handle Position

    This user’s guide has been designed to help you get the utmost satisfaction from your Easy Do not plug in your vacuum clean- Vac or PowerForce Compact vacuum. You’ll er until you have completely assem- find assembly and operating instructions,...

  • Page 6: Transporting Cleaner, Special Tools

    Special tools Your BISSELL vacuum is not only a powerful carpet and rug vacuum cleaner, it’s also a versatile above floor vacuum cleaner when you select one of the special tools. 1. Raise handle to upright position. 2. Grasp hose and remove from hose holder.

  • Page 7: Using Your Cleaner

    perations Using your cleaner 1. For first time use, remove the plastic plug guard and dispose. 2. Rotate the Quick Release cord wrap towards floor and slip power cord from upper and lower cord wraps. Cord Hook 3. Connect power cord plug to a polarized outlet.

  • Page 8: Emptying Dirt Cup

    aintenance and care How to maintain your Vacuum WarNINg: To maintain maximum cleaning performance, the following maintenance To reduce the risk of injury from steps must be performed: moving parts and/or electrical 1. Clean the dirt tank if any visible shock, step power switch to “OFF”...

  • Page 9: Cleaning Filter Tank/circular Filters

    aintenance and care Cleaning the filter tank and inner/outer circular filters 1. Turn off the vacuum and unplug it Inner from the electrical outlet. & Outer 2. Remove dirt cup by sliding the dirt Circular cup release lever to the right. Then Filters pull dirt cup out.

  • Page 10: Power Cord Storage, Cleaning Upper Tank

    aintenance and care Cleaning the upper tank 1. Turn off vacuum and unplug it from electrical outlet. 2. Remove dirt cup by sliding the dirt cup release lever to the right. Then pull dirt cup out. 3. Twist the primary separator to unlock it and pull it down.

  • Page 11

    aintenance and care Clean and replace rotating floor brush You should check your cleaner’s rotating floor brush and drive belt regularly for wear or damage. You should also clean the brush and brush ends by removing string, hair and carpet fibers. These can wrap around the Five Screws brush and hamper its ability to effectively clean your carpet.

  • Page 12: Replace Drive Belt, Cleaning Stretch Hose/foot Hose

    aintenance and care replace drive belt Motor Shaft 1. Follow steps 1-4 of previous section, “Clean and replace rotating floor brush”. 2. Check drive belt carefully for wear, cuts and stressed areas. If the drive belt appears worn, you will need to replace it. 3.

  • Page 13: Please Do Not Return This Product To The Store, Troubleshooting

    Thank you for selecting a BISSELL product. Please do not return this product to the store. For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691. w w w . b i s s e l l . c o m...

  • Page 14

    ® ® eplacement parts - BISSELL Easy Vac and PowerForce Compact vacuum Item Part No. Part Name 203-7592 Dirt Cup 203-7034 Drive Belt 203-7627 Floor Brush 203-7593 Inner & Outer Circular Filter Set 203-7943 Crevice Tool 203-7882 Dusting/Upholstery Tool (select models)

  • Page 15

    Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

  • Page 16

    Grand Rapids MI 49501 ATTN: Consumer Services Or visit the BISSELL website - When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim.
