Installation Instructions
Built-In Dishwasher
If you have questions, call 800.GE.CARES{800.432.2737} or visit our website at: www.ge.com

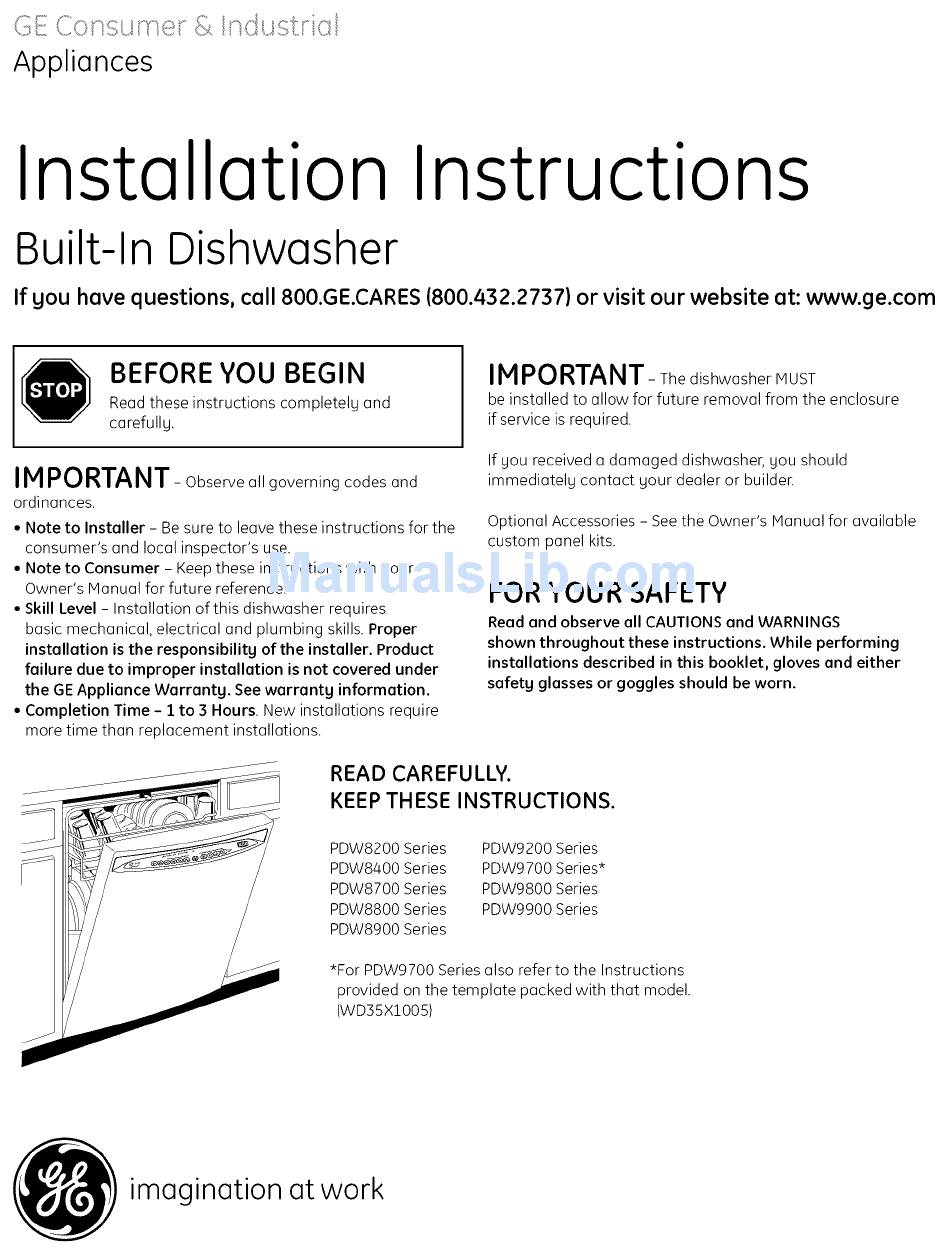

BEFORE YOU BEGIN
Read these instructions
completely
and
carefully.
IM PORTANT-
Observe all governing
codes and
ordinances.
• Note to Installer
- Be sure to leave these instructions
for the
consumer's
and local inspector's
use.
• Note to Consumer
- Keep these instructions
with your
Owner's Manual for future reference.
• Skill Level - Installation
of this dishwasher
requires
basic mechanical,
electrical
and plumbing
skills. Proper
installation
is the responsibility
of the installer.
Product
failure
due to improper
installation
is not covered
under
the GE Appliance
Warranty.
See warranty
information.
• Completion
Time - 1 to 3 Hours. New installations
require
more time than replacement
installations.
I M PO RTANT-
The dishwasher MUST
be installed
toallow for future removalfromtheenclosure
if service is required.
If you received a damaged dishwasher, you should
immediately contact yourdealer orbuilder.
Optional Accessories - See the Owner's Manual for available
custom panel kits.
FOR YOUR SAFETY
Read and observe
all CAUTIONS and WARNINGS
shown throughout
these instructions.
While performing
installations
described
in this booklet,
gloves and either
safety
glasses or goggles
should
be worn.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
PDW8200 Series
PDW8400 Series
PDW8700 Series
PDW8800 Series
PDW8900 Series
PDW9200 Series
PDW9700 Series*
PDW9800 Series
PDW9900 Series
*For PDW9700 Series also refer to the Instructions
provided on the template packed with that model.
(WD35X1005)
(__)
imag
ination at work

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDW9880NSS - Profile: - 24 in. Dishwasher and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GE PDW9880NSS - Profile: - 24 in. Dishwasher

  • Page 1 Appliances Installation Instructions Built-In Dishwasher If you have questions, call 800.GE.CARES{800.432.2737} or visit our website at: www.ge.com BEFORE YOU BEGIN I M PO RTANT- The dishwasher MUST be installed toallow for future removalfromtheenclosure Read these instructions completely if service is required. carefully.
  • Page 2: Parts Supplied

    Installation Preparation PARTS SUPPLIED: [] Two #8-18 x 5/8" Phillips special head screws, to secure dishwasher to underside of countertop or #B Phillips Special Head Screws sides of cabinets. (Screws located in user bag.) 5/8" long [] Side and top trim pieces [] Trim Panel Accessory Kit (not shown).
  • Page 3 Installation Preparation • The dishwasher must be installed so that drain hose is no PREPARE DISHWASHER ENCLOSURE more than 10' in length for proper drainage. WARNING )es or wires To reduce the risk of electric shock, fire, or injurg to persons, the ]4-i/2"...
  • Page 4: Prepare Electrical Wiring

    Installation Preparation PREPARE ELECTRICAL WIRING FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker Receptacle _ ", Alternate before beginning installation. Do not use Location an extension cord or adapter plug with this appliance. 1-1/2" Dia. Hole (Hax.) 3" from Electrical Requirements Cabinet •...
  • Page 5: Prepare Hot Water Line

    Installation Instructions PREPARE HOT WATER LINE STEP i INSTALL TRIM PIECES • The line may enter from either side, rear or floor within the • Locate trim strips inside dishwasher. shaded area shown in Figure F. • Press trim onto the tub flange on each side. Start with the top •...
  • Page 6: Step 5 Remove Toekick Brace

    Installation Instructions PDW9200-PDW9900 Series STEP 4 REMOVE TOEKICK • Remove the 2 toekick screws and toekick. Set aside for use in Step 19. Remove 2 Toekick Screws Figure K STEP 5 REMOVE TOEKICK BRACE Only for PDW9700 series and PDW9900 series, otherwise PulleL proceed to Step 6.
  • Page 7: Step 7 Install 90 ° Elbow

    Installation Instructions • Push hose over the drain outlet on the back side of the STEP 7 INSTALL 90 ° ELBOW dishwasher. See Figure R Push the hose over the outlet and • Wrap 90° elbow with thread seal tape. against the shoulder stop.
  • Page 8 Installation Instructions STEP 21 POSITION DISHWASHER UNDER Reposition Dishwasher CO UNTE RTO P _"_ bg Grasping Both • Push the dishwasher into the cabinet. • Push the sides with gour hands. Do not use gour knee against With Hands the door since door damage will occur. •...
  • Page 9: Step 22 Level Dishwasher

    Installation Instructions STEP 22 LEVEL DISHWASHER STEP 13 SECURE DISHWASHER TO COUNTERTOP OR CABINET I M PORTANT- Dishwasher must be level forproper In this step you will need Side-Mountin_ -_ dishrack operationand wash performance. the 2 Phillips special head • For PDW9200-PDW9900 Series: Make sure I/2"minimum Brackets screws set aside prior to...
  • Page 10 Installation Instructions Compression Nut STEP 14 CONNECT WATER SUPPLY Ferrule Connect water supply line to the 90 ° elbow. • Slide compression nut, then ferrule over end of water line. • Insert water line into 90° elbow. Hot Water • Slide ferrule against elbow and secure with compression nut. _0 °...
  • Page 11: Step 16 Connect Power Supply

    Installation Instructions STEP 16 CONNECT POWER SUPPLY STEP 17 PRETEST CHECK LIST Verify that power is turned off at the source. Review this list after installing your dishwasher to • Removejunction box cover "A". avoid charges for a service call that is not covered by your •...
  • Page 12: Step 18 Dishwasher Wet Test

    Installation Instructions STEP 18 DISHWASHER WET TEST STEP 19 REPLACE TOEKICK BRACE AND TOEKICK [] Turn on power supply (or plug power cord into outlet, if equipped). • Replace toekick brace and attach with screws set aside in Step 4 (the lower set of mounting holes may be used if [] Start the unit to check for leaks.
  • Page 13 BOX COVER AND SCREW MUST BE USED DURING THE ELECTRICAL CONNECTION STEPS TO AVOID THE RISK OF FIRE OR ELECTRIC SHOCK. SEE INSTALLATION INSTRUCTIONS. © 2006 General Electric Compang Pub. No.49-55020 PartNo. 16SD4700P340 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE ND 06C-1690 (4/06)
  • Page 14 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE GE Consumer & Industrial General Electric Company Louisville, Kentucky 40225 © 2005 General Electric Company Pub. No. 31-30588 ge.com Dwg. No. 206C1559P127 ND 05A-118312/05}...
