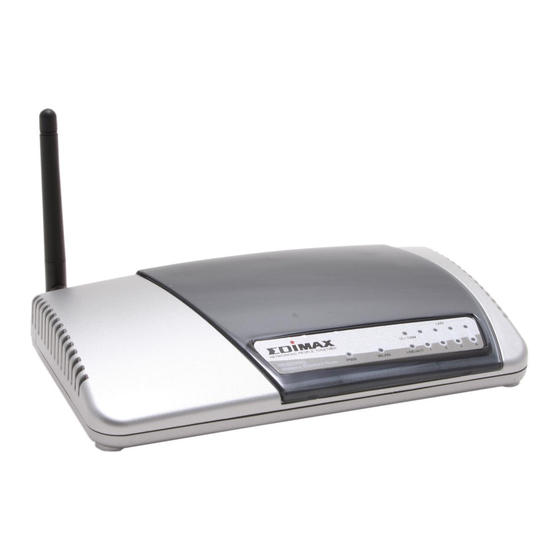

- Page 1 Wireless Broadband Router User’s Manual...
-
Page 2: Table Of Contents
Introduction ... 3 Features... 3 Minimum Requirements ... 3 Package Content ... 3 Note ... 4 Get to know the Broadband Router... 4 Back Panel... 4 Front Panel ... 5 Setup Diagram ... 6 Getting started ... 6 Chapter 1 ... 13 Quick Setup ... - Page 3 2.4.3.1 WEP only ... 43 2.4.3.2 802.1x only... 44 2.4.3.3 802.1x WEP Static key... 45 2.4.3.4 WPA Pre-shared key... 45 2.4.3.5 WPA Radius... 47 2.4.4 Access Control ... 48 2.5 QoS... 49 2.6 NAT... 53 2.6.1 Port Forwarding... 54 2.6.2 Virtual Server ... 56 2.6.3 Special Applications ...
-
Page 4: Introduction
The Wireless Broadband Router is embedded with a IEEE 802.11g/b access point that allows you to build up a wireless LAN. The Wireless Broadband Router provides a total solution for the Small and Medium-sized Business (SMB) and the Small Office/Home Office (SOHO) markets, giving you an instant network today, and the flexibility to handle tomorrow's expansion and speed. -
Page 5: Note
• One User Manual / One Power Adapter / Other Accessories Note The WAN “idle timeout” auto-disconnect function may not work due to abnormal activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. -
Page 6: Front Panel
your original configurations will be replaced with the factory default settings) Front Panel On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description. Light Status WAN 10/100M WAN LNK/ACT... -
Page 7: Setup Diagram
Setup Diagram Figure 1.2 below shows a typical setup for a Local Area Network (LAN). Getting started This is a step-by-step instruction on how to start using the router and get connected to the Internet. 1) Setup your network as shown in the setup diagram above (fig 1.2). 2) You then need to set your LAN PC clients so that it can obtain an IP address automatically. - Page 8 Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000 and 2d) Windows NT. 2a) Windows 95/98/Me 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Double-click Network icon. The Network window will appear. 3.
- Page 9 8. Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note:Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2b) Windows XP 1.
- Page 10 Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2c) Windows 2000 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up Connection window, double-click Local Area Connection icon.
- Page 11 2d) Windows NT 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Double-click Network icon. The Network window will appear. Select the Protocol tab from the Network window. 3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed, click the Add button to install it now.
- Page 12 7. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note:Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
- Page 13 6) The HOME page screen below will appear. The Home Page is divided into four sections, Quick Setup Wizard, General Setup, Status Info. and System Tools. Quick Setup Wizard (Chapter 1) Select your Internet connection type and then input the configurations needed to connect to your Internet Service Provider (ISP).
-
Page 14: Chapter 1
Hacker Attack Prevention, DMZ, Special applications and other functions to meet your LAN requirements. Status Info. (Chapter 3) In this section you can see the Broadband router's system information, Internet Connection, Device Status, System Log, Security Log and DHCP client information. System Tools (Chapter 4) This section contains the broadband router’s Tools - Tools include Configuration tools, Firmware upgrade and Reset. -
Page 15: Step 2) Broadband Type
Parameter Set Time Zone Time Server Address Enable Daylight Savings Start Daylight Savings Time End Daylight Savings Time Click on NEXT to proceed to the next page (step 2) Broadband Type. Step 2) Broadband Type Description Select the time zone of the country you are currently in. - Page 16 In this section you have to select one of four types of connections that you will be using to connect your broadband router’s WAN port to your ISP (see screen below). Note: Different ISP’s require different methods of connecting to the Internet, please check with your ISP as to the type of connection it requires.
-
Page 17: Cable Modem
Click on one of the WAN type and then proceed to the manual’s relevant sub-section (1.1, 1.2, 1.3, 1.4, 1.5 or 1.6). Click on Back to return to the previous screen. 1.1 Cable Modem Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as Host Name and MAC address (see screen below). -
Page 18: Fixed-Ip Xdsl
address with the MAC address of that PC (you have to be using that PC for the Clone MAC Address button to work). To find out the PC’s MAC address see Appendix A. (see Glossary for an explanation on MAC address) Click <OK>... -
Page 19: Pppoe
Subnet Mask Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Fixed-IP x DSL connection. You can start using the router now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4. 1.3 PPPoE Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. - Page 20 Service Name This is optional. Enter the Service name should your ISP requires it, otherwise leave it blank. This is optional. You can specify the maximum size of your transmission packet to the Internet. Leave it as it is if you to not wish to set a maximum packet size. Connection Type If you select “Continuous”, the router will always connect to the ISP.
-
Page 21: Pptp
connection. You can start using the router now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4. 1.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. - Page 22 User ID Password PPTP Gateway If your LAN has a PPTP gateway, then enter that PPTP gateway IP address here. If you do not have a PPTP gateway then enter the ISP’s Gateway IP address above Connection ID This is the ID given by ISP. This is optional. BEZEQ-ISRAEL Select this item if you are using the service provided by BEZEQ in Israel.
-
Page 23: L2Tp
computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function in the first time, especially your ISP charge you by time used. - Page 24 Use the following The ISP gives you a static IP to be used IP address to connect to the L2TP server. IP Address This is the IP address that your ISP has given you to establish a L2TP connection. Subnet Mask Enter the Subnet Mask provided by your ISP (e.g.
-
Page 25: Telstra Big Pond
If you select “Manual”, the router will connect to ISP only when you click “Connect” manually from the Web user interface. The WAN connection will not be disconnected due to the idle timeout. If the WAN line breaks down and latter links again, the router will not auto-connect to the ISP. -
Page 26: Chapter 2
Parameter User Name Password User deside login server manually Login Server Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Telstra Big Pond connection. You can start using the router now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4. - Page 27 If you have already configured the Quick Setup Wizard you do NOT need to configure anything thing in the General Setup screen for you to start using the Internet. The General Setup contains advanced features that allow you to configure the router to meet your network’s needs such as: Wireless, Address Mapping, Virtual Server, Access Control, Hacker Attack Prevention, Special Applications, DMZ and other functions.
-
Page 28: System
2.4 Wireless Setup the wireless LAN’s SSID, WEP key, MAC filtering. 2.5 QoS You can setup the QoS bandwidth control policy. 2.6 NAT You can configure the Address Mapping, Virtual Server and Special Applications functions in this section. This allows you to specify what user/packet can pass your router’s NAT. -
Page 29: Time Zone
2.1.1 Time Zone 2.1.2 Password Settings 2.1.3 Remote Management You can specify a Host IP address that can Select one of the above three system settings selections and proceed to the manual’s relevant sub-section 2.1.1 Time Zone The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. -
Page 30: Password Settings
Time Server Address Enable Daylight Savings Start Daylight Savings Time Select the period in which you wish to start End Daylight Savings Time Select the period in which you wish to end Click <Apply> at the bottom of the screen to save the above configurations. -
Page 31: Remote Management
Parameters Current Password New Password Confirmed Password Enter your new password again for verification Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.1.3 Remote Management The remote management function allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. -
Page 32: Wan
Host Address This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site. This means if you are at home and your home IP address has been designated the Remote Management host IP address for this router (located in your company office), then you are able to configure this router from your home. - Page 33 Parameters 2.2.1 Dynamic IP address 2.2.2 Static IP address 2.2.3 PPPoE 2.2.4 PPTP 2.2.5 L2TP 2.2.6 Telstra Big Pond connection. 2.2.7 DNS 2.2.8 DDNS Description Your ISP will automatically give you an IP address Your ISP has given you an IP address already Your ISP requires PPPoE connection.
-
Page 34: Wireless Isp
Once you have made a selection, click <More Configuration> at the bottom of the screen and proceed to the manual’s relevant sub-section 2.2.1 Wireless ISP Choose the the “WAN Type”, “Wireless ISP” and “Apply” button for connecting to the wireless Access Point and proceed to the manual’s relevant sub-section. -
Page 35: Dns
2.2.8 DNS A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address. -
Page 36: Ddns
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.2.9 DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. -
Page 37: Lan
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.3 LAN The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports as well as a subnet mask for your LAN segment. - Page 38 DHCP Server Lease Time IP Address Pool Note: By default the IP range is from: Start IP 192.168.2.100 to End IP 192.168.2.199. If you want your PC to have a static/fixed IP address then you’ll have to choose an IP address outside this IP address Pool Domain Name You can specify a Domain Name for your LAN Click <Apply>...
-
Page 39: Wireless
2.4 Wireless Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE 802.11b or 801.11g wireless network adaptor connect to your Intranet. It supports WEP and WPA2 encryption to enhance the security of your wireless network. Parameters Enable or disable Wireless module... - Page 40 Parameters Default Mode Band ESSID default Channel Number Associated Clients WLAN MAC Description It allows you to set the AP to AP, Station, Bridge or WDS mode. It allows you to set the AP fix at 802.11b or 802.11g mode. You also can select B+G mode to allow the AP select 802.11b and 802.11g connection automatically.
-
Page 41: Advanced Settings
Clone MAC MAC address Set Security Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.4.2 Advanced Settings You can set advanced wireless LAN parameters of this router. - Page 42 Parameters Authentication Type Fragment Threshold RTS Threshold When the packet size is smaller the RTS threshold, the wireless router will not use the RTS/CTS mechanism to send this packet. Beacon Interval The interval of time that this wireless router broadcast a beacon.
-
Page 43: Security
Data Rate The “Data Rate” is the rate this access point uses to transmit data packets. The access point will use the highest possible selected transmission rate to transmit the data packets. Preamble Type The “Long Preamble” can provide better wireless LAN compatibility while the “Short Preamble”... -
Page 44: Wep Only
2.4.3.1 WEP only When you select 64-bit or128-bit WEP key, you have to enter WEP keys to encrypt data. You can generate the key by yourself and enter it. You can enter four WEP keys and select one of them as default key. Then the router can receive any packets encrypted by one of the four keys Parameters Default... -
Page 45: 802.1X Only
Key 1 - Key 4 The WEP keys are used to encrypt data transmitted in the wireless network. Fill the text box by following the rules : 64-bit WEP: input 10-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 5-digit ASCII character as the encryption keys. -
Page 46: 802.1X Wep Static Key
RADIUS Server Port RADIUS Server Password Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.4.3.3 802.1x WEP Static key IEEE 802.1x is an authentication protocol. - Page 47 encryption key frequently. So the encryption key is not easy to be broken by hackers. This can improve security very much. Parameters WPA(TKIP) WPA2(AES) WPA2 Mixed Pre-shared Key Format Pre-shared Key The Pre-shared key is used to authenticate and encrypt data transmitted in the wireless network. Fill the text box by following the rules below.
-
Page 48: Wpa Radius
range) or at least 8 character pass phrase as the pre- shared keys. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.4.3.5 WPA Radius Wi-Fi Protected Access (WPA) is an advanced security standard. -
Page 49: Access Control
WPA2 Mixed RADIUS Server IP address The IP address of external RADIUS server. RADIUS Server Port RADIUS Server Password Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.4.4 Access Control This wireless router provides MAC Address Control, which prevents the... -
Page 50: Qos
Enable wireless access control Add MAC address into the list Remove MAC address from list Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.5 QoS The QoS can let you classify Internet application traffic by source/destination IP address and port number. - Page 51 Note: If the total assigned bandwidth of higher priority applications is larger than the maximum bandwidth provided by the WAN port, the other applications will not get any bandwidth. Parameters Enable/Disable QoS Add a QoS rule into the table Click “Add” then you will enter a form of the Remove QoS rules from table If you want to remove some QoS rules from Description You can check “Enable QoS”...
- Page 52 Edit a QoS rule Adjust QoS rule priority Edit QoS Rule: You can assign packet classification criteria by its local IP range, remote IP range, traffic type, protocol, local port range and remote port range parameters. The parameters that you leave as blank will be ignored. The priority of this rule will be applied to packets that match classification criteria of this rule.
- Page 53 Bandwidth You can assign the download or upload bandwidth by the unit of Kbps (1024 bit per second). You can limit the maximum bandwidth consumed by this rule by selecting “Maximum”. You also can reserve enough bandwidth for this rule by selecting “Guarantee”. Local IP Address Enter the local IP address range of the packets that this rule will apply to.
-
Page 54: Nat
Reset Clear the content of this form. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.6 NAT Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. -
Page 55: Port Forwarding
2.6.2 Virtual Server 2.6.3 Special Applications 2.6.4 UPnP Setting 2.6.5 ALG Setting 2.6.6 Static Routing Click on one of the three NAT selections and proceed to the manual's relevant sub-section. 2.6.1 Port Forwarding The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. - Page 56 Parameter Enable Port Forwarding Private IP Type Port Range Comment Add Port Forwarding Description Enable Port Forwarding This is the private IP of the server behind the NAT firewall. Note: You need to give your LAN PC clients a fixed/static IP address for Port Forwarding to work properly.
-
Page 57: Virtual Server
Remove Port Forwarding Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.6.2 Virtual Server Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. - Page 58 Parameters Enable Virtual Server Private IP Private Port Type Public Port Comment Add Virtual Server Remove Virtual Server Description Enable Virtual Server. This is the LAN client/host IP address that the Public Port number packet will be sent to. Note: You need to give your LAN PC clients a fixed/static IP address for Virtual Server to work properly.
-
Page 59: Special Applications
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) Example: Virtual Server The diagram below demonstrates one of the ways you can use the Virtual Server function. - Page 60 Parameters Enable Trigger Port Trigger Port Trigger Type Public Port Public Type Comment Popular applications Description Enable the Special Application function. This is the out going (Outbound) range of port numbers for this particular application Select whether the outbound port protocol is “TCP”, “UDP”...
- Page 61 Add Special Application Remove Special Application If you want to remove some Special Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) Example: Special Applications If you need to run applications that require multiple connections, then specify the port (outbound) normally associated with that application in the...
-
Page 62: Upnp Settings
ID Trigger Port Trigger Type Public Port 28800 6112 In the example above, when a user trigger’s port 28800 (outbound) for MSN Game Zone then the router will allow incoming packets for ports 2300-2400 and 47624 to be directed to that user. Note: Only one LAN client can use a particular special application at a time. -
Page 63: Alg Settings
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.6.5 ALG Settings You can select applications that need “Application Layer Gateway” to support. -
Page 64: Static Routing
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.6.6 Static Routing This router provides Static Routing function when NAT is disabled. With Static Routing, the router can forward packets according to your routing rules. -
Page 65: Firewall
Hop Count Interface Add a Rule Remove a Rule Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 2.7 Firewall The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and... -
Page 66: Access Control
Parameters 2.6.1 Access Control 2.6.2 URL Blocking 2.6.3 DoS 2.6.4 DMZ Click on one of the firewall selections and proceed to the manual’s relevant sub-section 2.7.1 Access Control If you want to restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), then this is the place to set that configuration. - Page 67 Parameters Deny Allow Filter client PCs by IP Add PC Remove PC Filter client PC by MAC address Description If select “Deny” then all PCs will be allowed to access Internet accept for the PCs in the list below. If select “Allow” then all PCs will be denied to access Internet accept for the PCs in the list below.
- Page 68 Add PC Fill in “Client PC MAC Address” and “Comment” of the PC that is allowed to access the Internet, and then click “Add”. If you find any typo before adding it and want to retype again, just click "Reset" and the fields will be cleared. Remove PC If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and...
- Page 69 Client PC Service Protocol Port Range Apply Changes Reset Click <Apply Changes> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) Example: Access Control In the example below, LAN client A can only access websites that use Port 80.
-
Page 70: Url Blocking
2.7.2 URL Blocking You can block access to some Web sites from particular PCs by entering a full URL address or just keyword of the Web site. Parameters Enable URL Blocking Add URL Keyword Remove URL Keyword If you want to remove some URL keyword from You can now configure other advance sections or start using the router (with the advance settings in place) Description... -
Page 71: Dos (Denial Of Service)
2.7.3 DoS (Denial of Service) The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Parameters Intrusion Detection Feature Ping of Death Discard Ping From WAN Port Scan... -
Page 72: Dmz
2.7.4 DMZ If you have a local client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN. -
Page 73: Chapter 3
Status The Status section allows you to monitor the current status of your router. You can use the Status page to monitor: the connection status of the Broadband router's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network. -
Page 74: Status And Information
3.6 Active DHCP Client View your LAN client's information that is 3.7 Statistics Select one of the above five Status selections and proceed to the manual’s relevant sub-section 3.1 Status and Information The Status and Information section allows you to view the router’s system information currently linked to the Broadband router's DHCP server... -
Page 75: Internet Connection
Parameters Information You can see the router’s system information such as the router’s: LAN MAC Address, WAN MAC Address, Hardware version, Serial Number, Boot code Version, Runtime code Version 3.2 Internet Connection View the Broadband router’s current Internet connection status and other related information Parameters Internet Connection... -
Page 76: Device Status
3.3 Device Status View the Broadband router’s current configuration settings. The Device Status displays the configuration settings you’ve configured in the Quick Setup Wizard/General Setup section. Parameters Device Status This page shows the Broadband router’s current device settings. This page displays the Broadband router LAN port’s current LAN IP Address and Subnet Mask. -
Page 77: System Log
3.4 System Log View the operation log of the system. Parameters System Log This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save>... -
Page 78: Security Log
3.5 Security Log View any attempts that have been made to illegally gain access to your network. Parameters Security Log Description This page shows the current security log of the Broadband router. It displays any illegal attempts to access your network. At the bottom of the page, the security log can be saved <Save>... -
Page 79: Active Dhcp Client
3.6 Active DHCP Client View your LAN client's information that is currently linked to the Broadband router's DHCP server Parameters Active DHCP Client Description This page shows all DHCP clients (LAN PCs) currently connected to your network. The “Active DHCP Client Table” displays the IP address and the MAC address and Time Expired of each LAN Client. -
Page 80: Statistics
3.7 Statistics View the statistics of packets sent and received on WAN, LAN and Wireless LAN. Parameters Statistics Description Shows the counters of packets sent and received on WAN, LAN and Wireless LAN. -
Page 81: Chapter 4
Tool This page includes the basic configuration tools, such as Configuration Tools (save or restore configuration settings), Firmware Upgrade (upgrade system firmware) and Reset. Parameters 4.1 Configuration Tools 4.2 Firmware Upgrade 4.3 Reset Select one of the above three Tools Settings selection and proceed to the manual’s relevant sub-section Chapter 4 Description... -
Page 82: Configuration Tools
4.1 Configuration Tools The Configuration Tools screen allows you to save (Backup) the router’s current configuration setting. Saving the configuration settings provides an added protection and convenience should problems occur with the router and you have to reset to factory default. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. -
Page 83: Firmware Upgrade
4.2 Firmware Upgrade This page allows you to upgrade the router’s firmware Parameters Firmware Upgrade Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the upgrade process. (You may have to wait a few minutes for the upgrade to complete). -
Page 84: Reset
4.3 Reset You can reset the router’s system should any problem exist. The reset function essentially Re-boots your router’s system Parameters Reset Description In the event that the system stops responding correctly or in some way stops functioning, you can perform a reset. -
Page 85: Appendix A
Appendix A How to Manually find your PC’s IP and MAC address 1) In Window’s open the Command Prompt program 2) Type Ipconfig /all and <enter> • Your PC’s IP address is the one entitled IP address (192.168.1.77) • The router’s IP address is the one entitled Default Gateway (192.168.1.254) •... -
Page 86: Glossary
Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination. - Page 87 1’s followed by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.
- Page 88 Application Telnet SMTP POP3 H.323 SNMP SNMP Trap HTTP PPTP PC Anywhere PC Anywhere PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol.
- Page 89 WAN: Wide Area Network. A network that connects computers located in geographically separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network. Web-based management Graphical User Interface (GUI): Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
