Wireless Clients 192.168.1.2-192.168.2.50

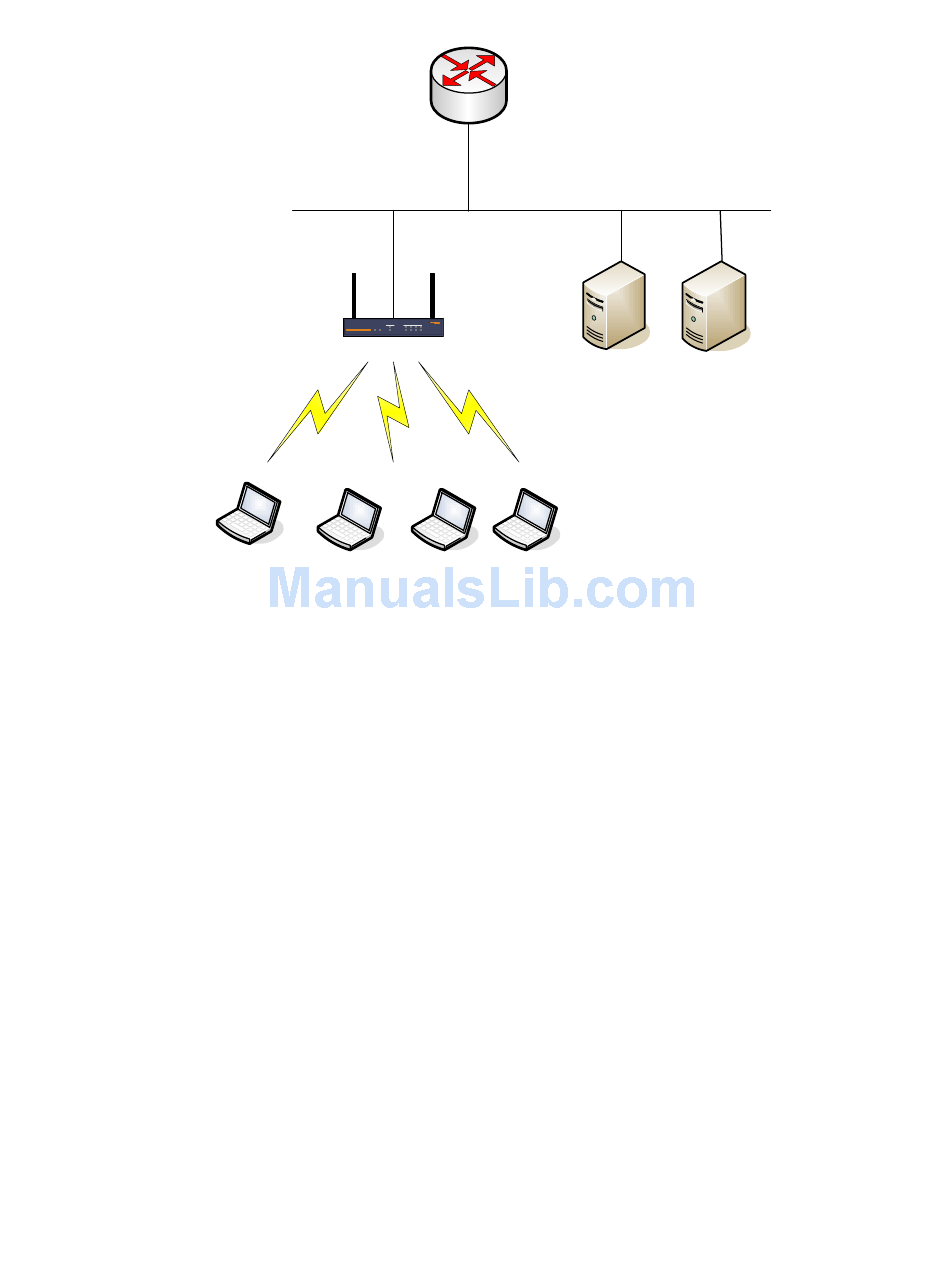

In the above example, the wired network where the router and the access point resided is
192.168.0.0/24. When enabling the DHCP server on the WG302v2/WAG302v2, the DHCP
network must be in a different subnet than 192.168.0.0/24. In our example, we use
192.168.1.0/24.
To enable DHCP server on the WG302v2/WAG302v2, go to Advanced->IP Settings in the access
point's management interface. Select the radio button to enable DHCP server. Enter the starting
and ending IP Address of the DHCP pool, subnet mask, gateway IP address, primary and
secondary DNS server addresses, primary and secondary WINS server addresses and lease
time. Click Apply.
Router
192.168.0.1
192.168.0.228
NETGEAR
INTERNET LOCAL
MODEL FR314
LNK 100
Firewall Router
Internet Access PWR TEST
ACT LNK/ACT
1 2 3 4
WG302v2/WAG302v2
Wired device 192.168.0.x
