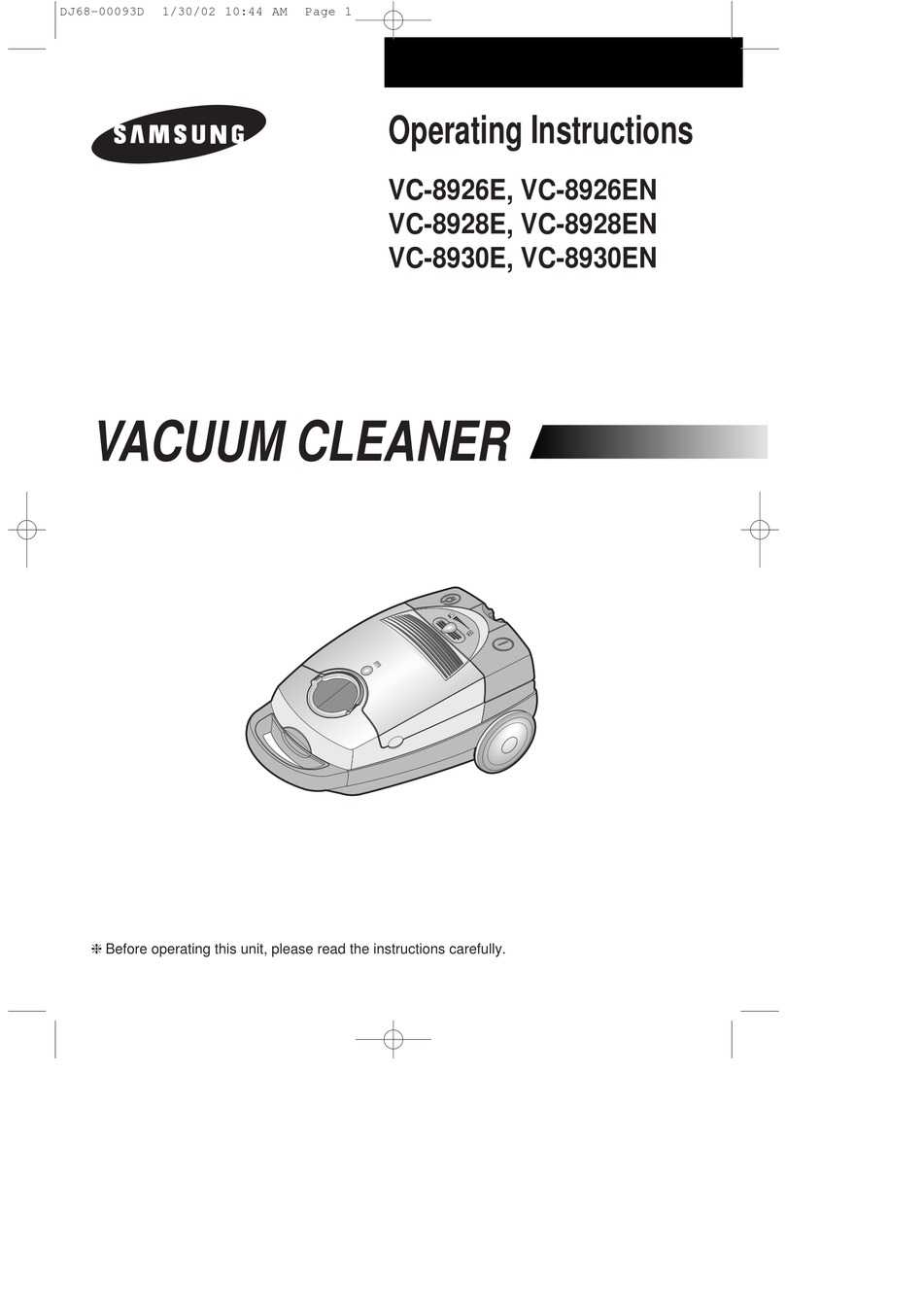

Page 1: Operating Instructions
DJ68-00093D 1/30/02 10:44 AM Page 1 Operating Instructions VC-8926E, VC-8926EN VC-8928E, VC-8928EN VC-8930E, VC-8930EN VACUUM CLEANER ❈ Before operating this unit, please read the instructions carefully. -
Page 2: Important Safeguards
DJ68-00093D 1/30/02 10:44 AM Page 2 FEATURES Features include indicator and automatic cord rewind. NOTE : Not all models have the same features. IMPORTANT SAFEGUARDS 1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity sup- ply is the same as that indicated on the rating plate on the bottom of the cleaner. -
Page 3: Identifications Of Parts
DJ68-00093D 1/30/02 10:44 AM Page 3 IDENTIFICATIONS OF PARTS HOSE * REMOTE POWER CONTROL * (REMOTE CONTROL TYPE ONLY) HANDLE * SUCTION REGULATOR * CYCLONIC TUBE * FILTER * AUTO BUTTON CORD REWIND BUTTON TRANSPARENT TUBE * POWER CONTROL SWITCH * ON/OFF BUTTON TOOL STORAGE COVER... - Page 4 DJ68-00093D 1/30/02 10:44 AM Page 4 ASSEMBLING THE VACUUM-CLEANER READY FOR USE 1) Connect the suction hose to the suction tube. 2) Adjust the suction tube(depending on model). EXTENDING : Holding the narrow part of the telescopic tube with one hand, push the handle in the opposite direction with your other hand.
-
Page 5: Power Cord
DJ68-00093D 1/30/02 10:45 AM Page 5 POWER CORD 1) PULLING OUT : The power cord is long enough to drawn out for convenience. 2) REWINDING : When you have finished cleaning,discon- nect the plug from the electrical outlet and simply press the cord rewind button lightly with your toe. - Page 6 DJ68-00093D 1/30/02 10:45 AM Page 6 AUTO MODE (BUTTON CONTROL TYPE ONLY) If you press AUTO MODE, the power is automatically set at 1200~1300 watt. This mode reduces the suction power fluctuation which is caused by the fluctuation of airflow quantity to the motor. For example, when dust bag is full, the quantity of air to the motor will be decreased and power will be down followingly.
-
Page 7: Using The Accessories
DJ68-00093D 1/30/02 10:45 AM Page 7 USING THE ACCESSORIES Open the tool storage cover upwards. CREVICE DUSTING UPHOLSTERY Crevice tool for radiators, crevices, Dusting brush for furniture, Upholstery brush for cushions corners, between cushions. shelves, books, etc. and drapery. PARK POSITION Located in the top rear side of the vacuum cleaner,there is a nozzle support that can be used to park the nozzle during pauses in cleaning... -
Page 8: Replacing The Dustbag
DJ68-00093D 1/30/02 10:45 AM Page 8 REPLACING THE DUST BAG 1) To open the dust cover of the dust bag com- 2) Remove the dust bag from the cleaner partment, press the clamper upwards(the clam- per is located at the front of the dust cover). 3) After removing the used dust bag, insert the 4) Press the dust cover down gently until the cardboard bag collar of the new dust bag into... -
Page 9: Cyclonic Filter (Only Cyclonic Filter Types)
DJ68-00093D 1/30/02 10:45 AM Page 9 CYCLONIC FILTER (ONLY CYCLONIC FILTER TYPES) You can use a dust bag in your cleaner for a long time thanks to the Cyclonic Filter system and it maintain the maximum cleaning efficiency. The larger particle of dust filtered from Cyclonic Filter remain in Dust Barrel when suctioned air and dust revolves in the Cyclonic Filter. -
Page 10: Inlet Filter
DJ68-00093D 1/30/02 10:45 AM Page 10 MAINTENANCE OR REPLACEMENT OF THE FILTERS INLET FILTER The secondary filter, located behind the grille in the back of dust bag compartment, protects the motor from dirt particles. Do not allow the filter to become clogged. Suction power reduction or motor damage may result. - Page 11 DJ68-00093D 1/30/02 10:45 AM Page 11 USAGE OF FLOOR NOZZLE FOR RUG / FLOOR SELECTOR Before use make sure that the position of the selector is in the right position for the type of surface to be cleaned. Select the carpet indicator ➀ when cleaning carpets. Select flat surface indicator ➁...
-
Page 12: Troubleshooting
DJ68-00093D 1/30/02 10:45 AM Page 12 TROUBLE SHOOTING PROBLEM CAUSE REMEDY Motor does not start. No power supply. Check cable, plug and socket. Suction force is gradually Filter, nozzle, suction hose Remove the object. decreasing. or tube is blocked. Cord does not rewind fully. Check that the cord is not Pull the cord out 2~3m &... - Page 13 8900-ARB 1/2/02, 2:16 AM...
- Page 14 8900-ARB 1/2/02, 2:16 AM...
- Page 15 8900-ARB 1/2/02, 2:16 AM...
- Page 16 8900-ARB 1/2/02, 2:16 AM...
- Page 17 8900-ARB 1/2/02, 2:17 AM...
- Page 18 8900-ARB 1/2/02, 2:17 AM...
- Page 19 8900-ARB 1/2/02, 2:17 AM...
- Page 20 8900-ARB 1/2/02, 2:17 AM...
- Page 21 8900-ARB 1/2/02, 2:17 AM...
- Page 22 8900-ARB 1/2/02, 2:17 AM...
- Page 23 8900-ARB 1/2/02, 2:17 AM...
- Page 24 DJ68-00093D(AR) 1/30/02 10:47 AM Page 1 DJ68-00093D REV(0.3)
