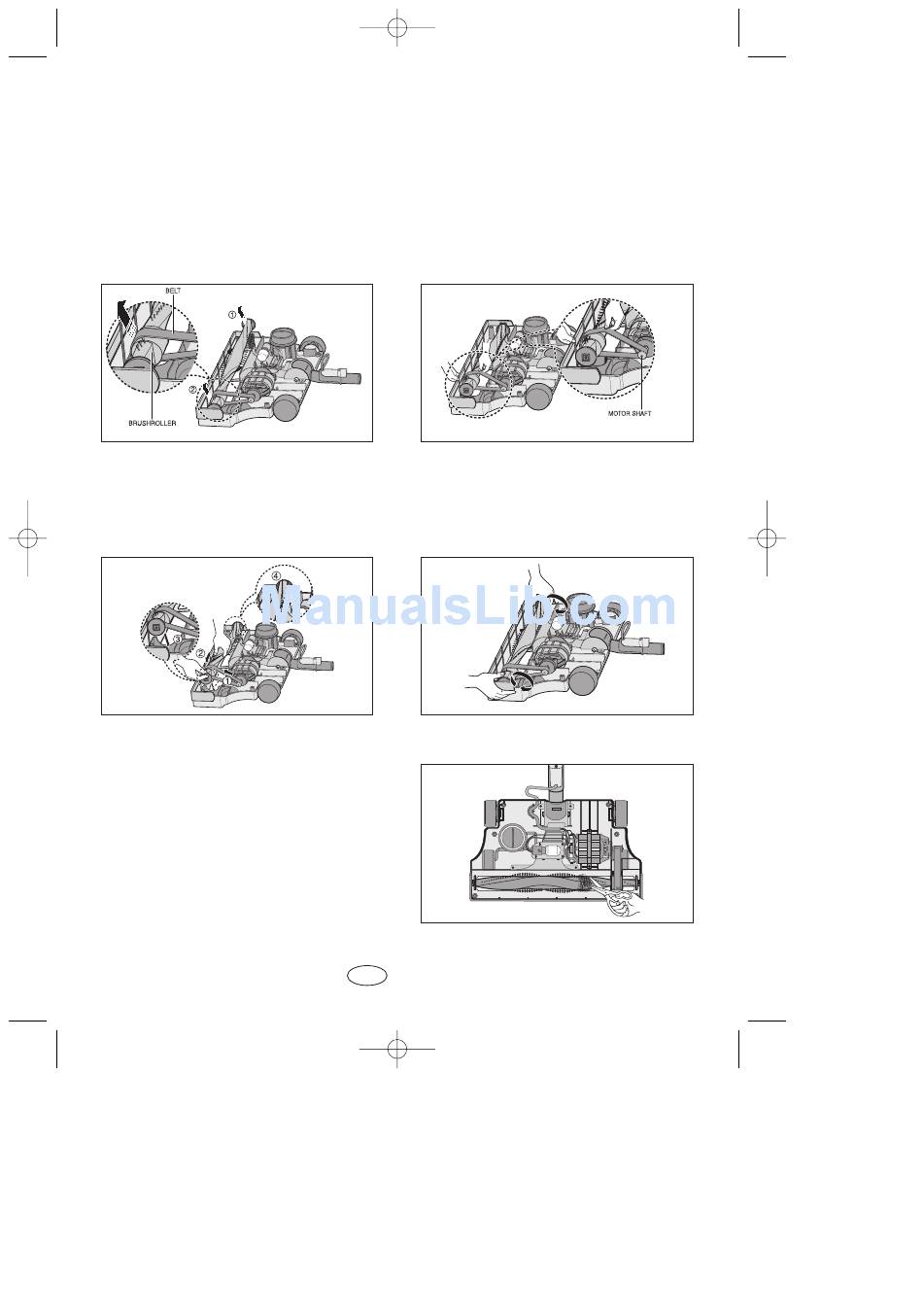

3. Replacing the Brushroller Belt
Use with caution when replacing the belt that drives the brushroller. Tension on
the belt is high.
1) Remove the brush cover. Grasp the
brushroller firmly, and pull it out.
3) Reinsert the brushroller, making sure
that both ends of the brushroller are fit
ted into the grooves of the nozzle head.
4. Cleaning the Brushroller
1) Turn off the vacuum cleaner and unplug the
power cord.
2) Remove the cover to expose the
brushroller.
3) Cut off any lint, carpet pile or hair that has
accumulated around the brushroller with a
pair of scissors. Replace the brush cover.
Page 11
2) Remove the flat belt from the motor
shaft and the brushroller. Loop the new
belt around the motor shaft and then
loop it around the brushroller.
4) Be sure that the belt is not twisted.
Rotate the belt 3 or 4 times to position
it correctly on the roller and to make
sure all rotating parts move smoothly.
Replace the brush cover.
