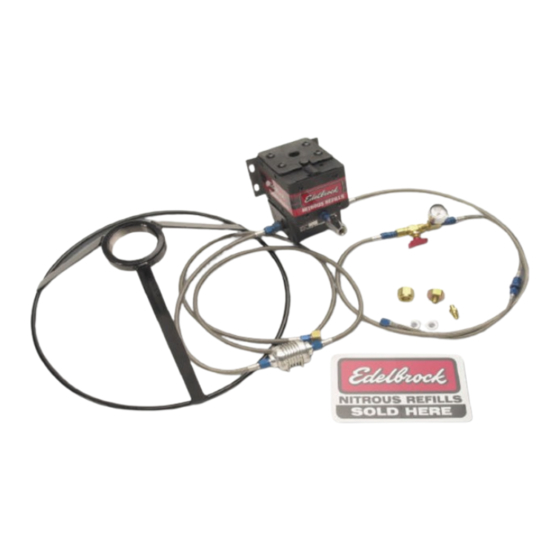

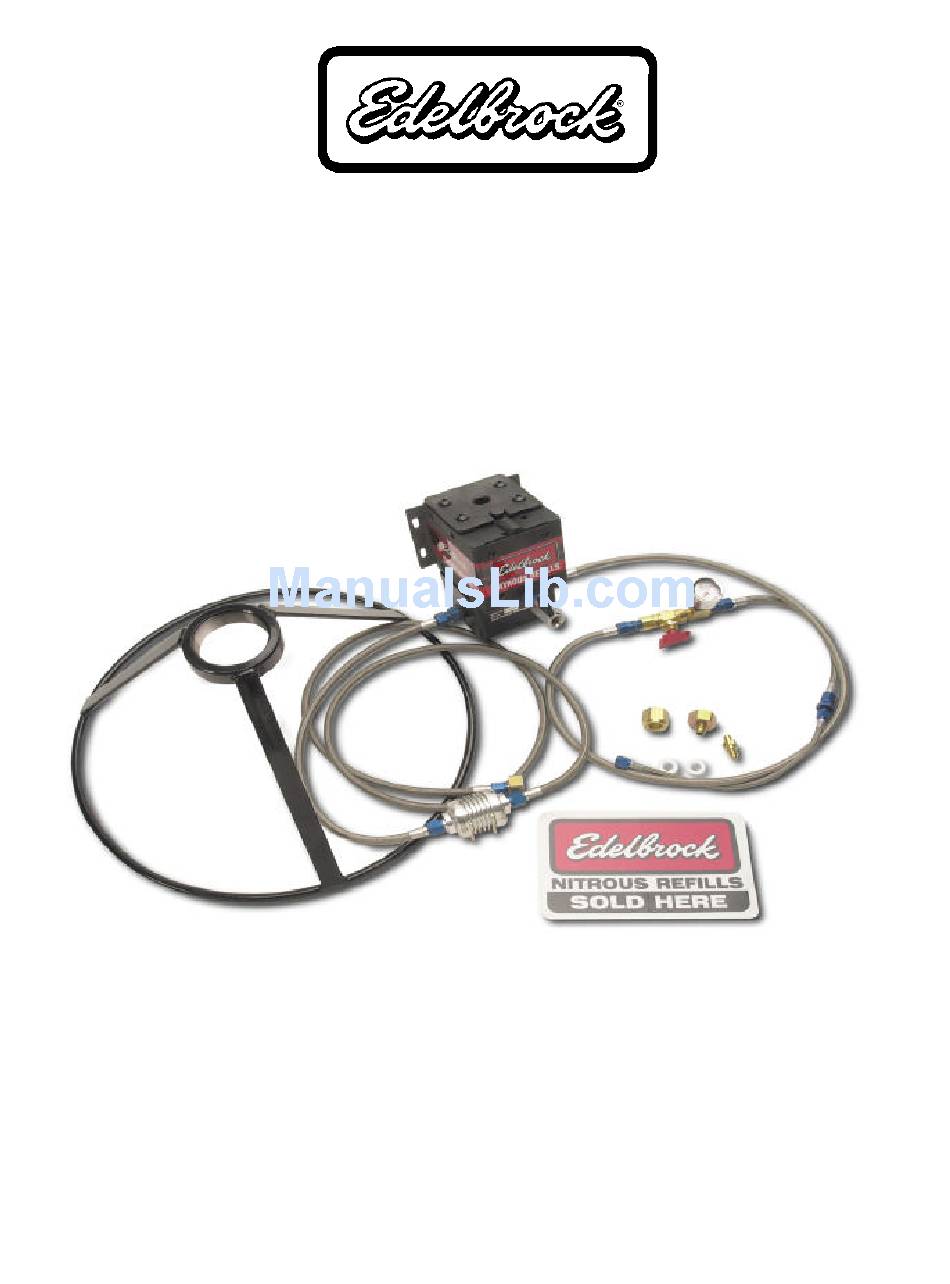

- Page 1 DELBROCK ITROUS EFILL TATION #78000 Edelbrock Nitrous Systems 2700 California Street Torrance, California 90503 Tech Line (800) 416-8628 Rev. 12/00 Tech Fax (310) 972-2730...
- Page 2 Please pay close attention to the safety information at the beginning of each section. Please take the time to read and understand the following…. By setting up your Edelbrock Refill Station, you indicate you have read this document and you agree with the terms stated below: It is the responsibility of the purchaser to follow all installation instruction guidelines and safety procedures supplied with the Edelbrock Refill Station.
-
Page 3: What Is Nitrous Oxide
What is Nitrous Oxide? Nitrous Oxide is a cryogenic gas composed of nitrogen and oxygen molecules. It is stored as a “gas over a liquid” which means that both liquid and gaseous nitrous oxide is delivered into your engine. It is 36% oxygen by weight, which is what produces the added horsepower. - Page 4 The ability to refill nitrous oxide bottles in the fields and as a service to customers is an important addition to any service facility or race shop. The Edelbrock Refill Station Kit is designed to provide a safe and effective way in which to recharge nitrous bottles.
- Page 5 Refill Station Bill of Materials Qty. Description 6 AN x 1/4 NPT, straight fitting, Blue 6 AN x 3/8 NPT, straight fitting, Blue 6 AN x 1/2 NPT, straight fitting, Blue 4 AN x 6 AN, Reducer Union Fitting Blue 1/4 NPT male x 1/4 NPT male, Union, (Blue) 1/4 NPT female x 1/4 NPT male x 1/4 NPT female Tee 1/4 NPT male x 1/8 NPT female Reducer Bushings...
- Page 6 IMPORTANT NOTE: Unpack all of the components and check them against the bill of materials. If any compo- nent is missing, do not substitute parts. Call the Edelbrock Customer Service line at 800-416-8628. Proper Assembly of the Pump Station 1. Select mounting location for transfer pump. Lowest point of transfer pump should be located above highest point of tallest bottle you intend to fill.
- Page 7 Proper Assembly of the Pump Station (Continued) 13. Install ¼ NPT x 6 AN fitting on inlet side of nitrous control valve. The control valve is the ball valve used to control the flow of nitrous from the pump to the bottle being filled. Arrow on control valve indicates flow direction.
- Page 8 You have now completed the refill of the bottle. ONTINUED This should only take a few seconds. Edelbrock Nitrous Systems 2700 California Street Torrance, California 90503 Tech Line (800) 416-8628...
