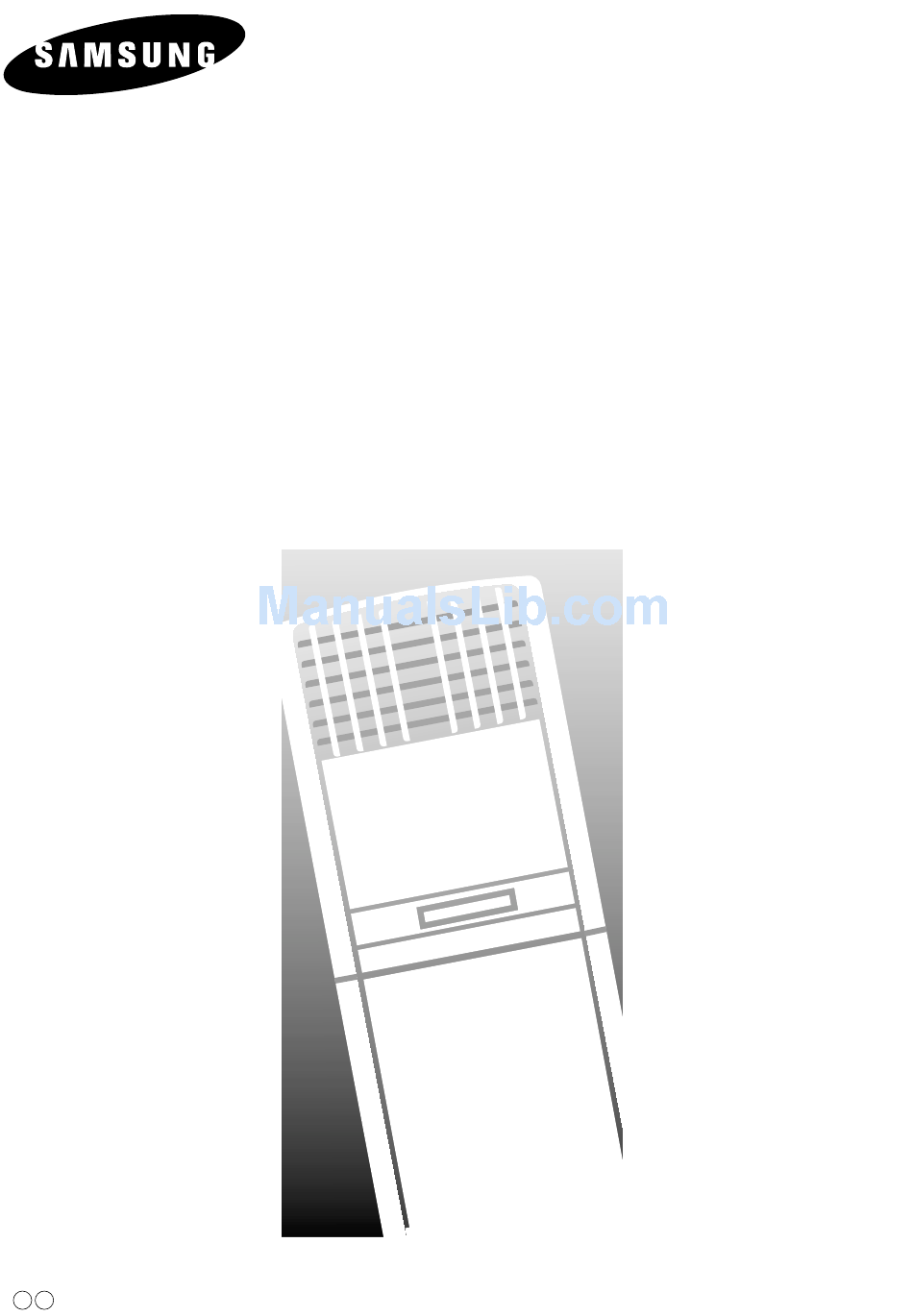

OWNER'S
INSTRUCTIONS
APC289SEV
Floor Stand type Air Conditioner
(Cool)
E TH DB98-23415A(1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC289SEV and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung APC289SEV

Summary of Contents for Samsung APC289SEV

  • Page 1 OWNER’S INSTRUCTIONS APC289SEV Floor Stand type Air Conditioner (Cool) E TH DB98-23415A(1)

  • Page 2: Safety Precautions

    Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. Can cause injury or death. Disconnect all WARNING remote electric power supplies before servicing, installing or cleaning.

  • Page 3: Table Of Contents

    Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........View of the Unit .

  • Page 4: View Of The Unit

    View of the Unit The design and shape are subject to change according to the model. Indoor Unit Air flow blade(right/left orientation) Air flow blade(up/down orientation) Air outlet Automatic shutter Perfect air cleaner To open the grille Hold the upper part Air inlet of the grille, then pull it slightly forward.

  • Page 5: Outdoor Unit

    Outdoor Unit Air Inlet(Rear) Air Outlet Connection Valve...

  • Page 6: Remote Control - Buttons And Display

    Remote Control - Buttons and Display Temperature setting Operating mode Operating mode Turbo mode Digital Flow & Fan speed setting Anion indicator Perfect air cleaning setting Air flow direction Timer setting Health mode Temperature On/Off button adjustment buttons Perfect air cleaning On/Off button Digital Flow selection button Fan speed button Mode selection button...

  • Page 7: Getting Started

    etting Started You have just purchased a floor stand type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features.

  • Page 8: Inserting The Remote Control Batteries

    Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together. Batteries may be completely discharged after 12 months, even if they have not actually been used.

  • Page 9: Selecting The Automatic Operating Mode

    Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the optimum temperature and the fan speed is selected automatically. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 10: Cooling Your Room

    Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 11: Removing Excess Humidity

    Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. In DRY mode, the quantity of air and the direction of the air flow is adjusted automatically. If necessary, press the (On/Off) button.

  • Page 12: Airing Your Room

    Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 13: Changing The Room Temperature Quickly

    Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

  • Page 14: Selecting Health Mode

    Selecting Health Mode If you wish to clean the air during cooling operation, select the Health mode. In the Health mode, the perfect air cleaning is also operated and the optimum air flow direction is selected automatically. If necessary, press the (On/Off) button.

  • Page 15: Selecting Digital Flow

    Selecting Digital Flow In Cool, Turbo or Health mode, you can adjust the Digital Flow depending on your needs. Select COOL, TURBO or HEALTH mode first. Press the button once or more times as required. The air conditioner blows cool The air conditioner blows cool air into a specific area.

  • Page 16: Adjusting The Air Flow Direction Vertically

    Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner. Press the button one or more times as required.

  • Page 17: Adjusting The Air Flow Direction Horizontally

    Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. Press the button one or more times as required. Result: The inner blades are adjusted horizontally.

  • Page 18: Setting The On Timer

    Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. You can select the On Timer only when the air conditioner is off.

  • Page 19: Setting The Off Timer

    Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. You can select the Off Timer only when the air conditioner is on.

  • Page 20: Selecting Perfect Air Cleaning

    Selecting Perfect Air Cleaning In perfect air cleaning mode, the perfect air cleaner with filter removes dust particle and tobacco smoke. This function can be selected in any mode or when the air conditioner is off. Press the button or button.

  • Page 21: Generating Anions

    Generating Anions In the perfect air cleaning mode, you can select the Anion generating function additionally. Press the button. Result: The air conditioner generates Anion. The indoor unit beeps. The Anion generating function can be selected only in the perfect cleaning mode. To stop the Anion generating function, press the button again.

  • Page 22: Using The Control Panel On The Indoor Unit

    Using the Control Panel on the Indoor Unit You can operate the air conditioner with the control panel when you can’t or don’t want to operate the air conditioner with the remote control. To operate the air conditioner, press the (On/Off) button.

  • Page 23: Other Functions

    Other Functions Lock function Press the buttons simultaneously for 3 seconds. Result: indicates on the control panel. The control panel is locked. You can use the remote control even if the control panel is locked. To cancel the lock function press the buttons simultaneously for 3 seconds once again.

  • Page 24: Temperature And Humidity Ranges

    Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temperatures The automatic protection feature may be triggered and the air conditioner stopped. Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes.

  • Page 25: Cleaning Your Air Conditioner

    Cleaning Your Air Conditioner For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, ensure that you IMPORTANT have switched off the breaker used for the unit. Open the air inlet cover, then pull out the air filters.

  • Page 26: Solving Common Problems

    Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The air conditioner does not Check that the breaker used for the air conditioner is switched on. operate at all Check that the operation indicator on the indoor unit is on;...

  • Page 27: Technical Specifications

    Technical Specifications Model APC289SEV Item Cooling Power supply 1Ø, 220V~, 50Hz Capacity 27000 Btu/h Power consumption 2600W Running current Indoor unit 1840 320 (mm) Dimension (W H D) Outdoor unit 310 (mm)
  • Page 28 THIS AIR CONDITIONER IS MANUFACTURED BY: ELECTRONICS...
