Edelbrock 72285 Installation Instructions

1. Apply a small bead of thread lock to the end of the
supplied screws (A).
2. Insert screws (A) through bracket; (B) and tighten
into stand-offs(C).
3. Apply a small bead of thread lock to the end of the
supplied screws (E).
4. Insert screws (E) through microswitch (D) and
tighten into stand-offs (C).
5. Install microswitch bracket onto carburetor studs
over the base of the carburetor on the passenger
side of the carburetor (opposite side of the linkage).
6. Check for full throttle, microswitch operation, and
throttle return.
©2002 Edelbrock Corporation
1. Apply a small bead of thread lock to the end of the
supplied screws (A).
2. Insert screws (A) through bracket; (B) and tighten
into stand-offs(C).
3. Apply a small bead of thread lock to the end of the
supplied screws (E).
4. Insert screws (E) through microswitch (D) and
tighten into stand-offs (C).
5. Install microswitch bracket onto carburetor studs
over the base of the carburetor on the passenger
side of the carburetor (opposite side of the linkage).
6. Check for full throttle, microswitch operation, and
throttle return.
©2002 Edelbrock Corporation

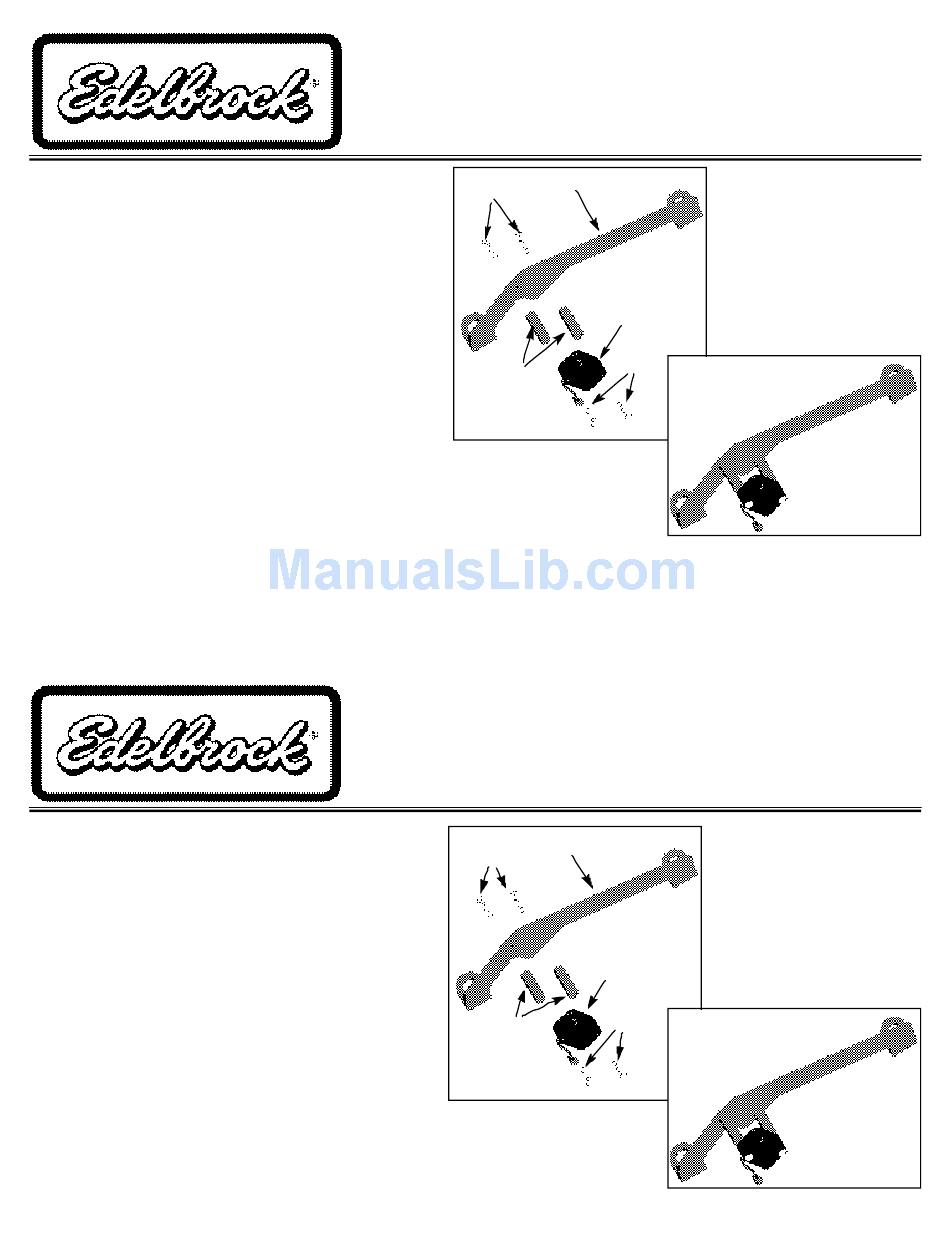

KING DEMON MICROSWITCH BRACKET
