Setting up the system

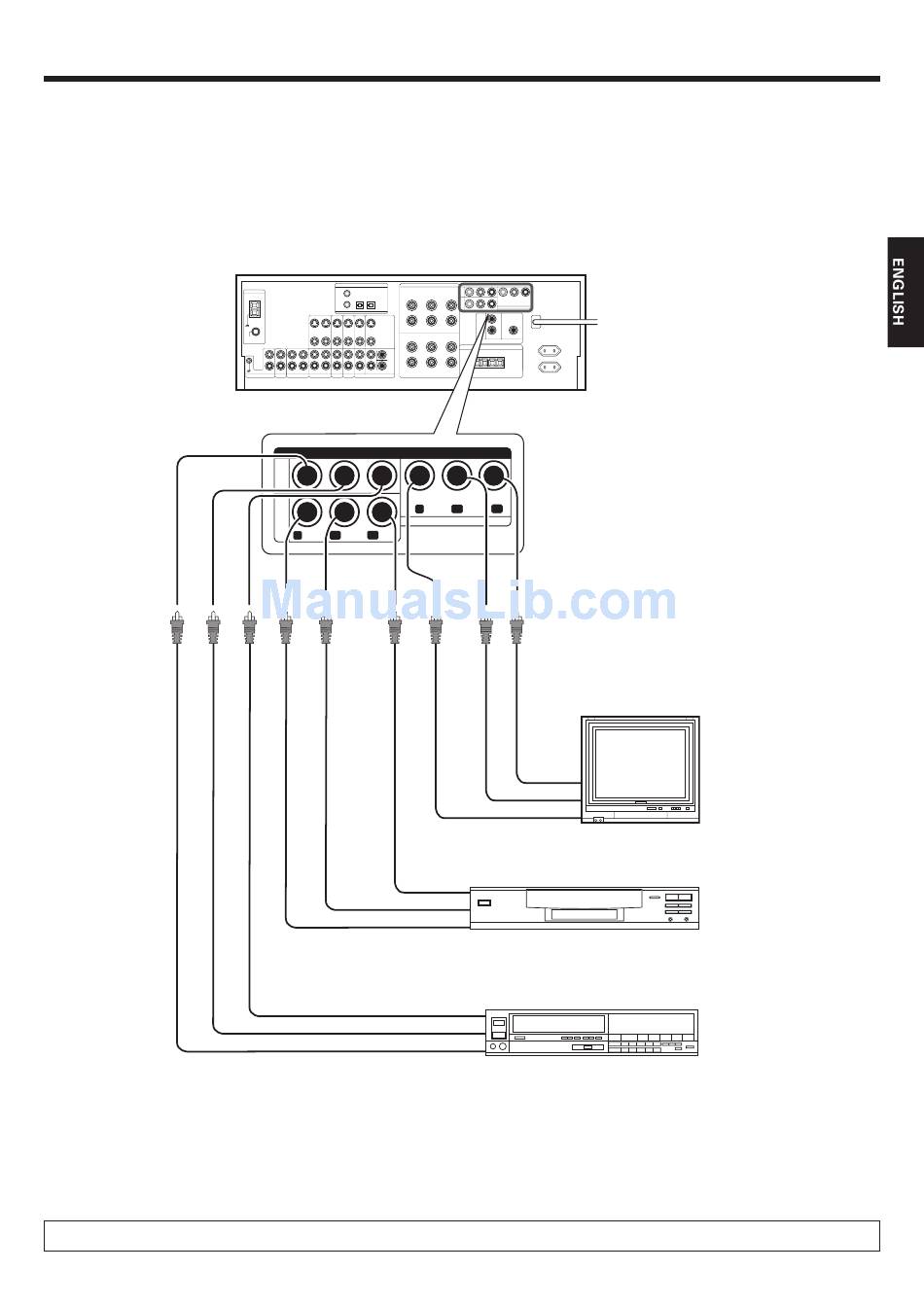

Connecting video components (COMPONENT VIDEO)
If you have connected this model to a video component with COMPONENT jacks, you can get a better picture quality than by connecting to the S-VIDEO
jacks.
When connecting the TV to the COMPONENT jacks, be sure to connect all the other components to the COMPONENT jacks.

COMPONENT VIDEO

VIDEO
3
IN
Y
DVD
IN
MONITOR OUT
Y CB CR
CR OUT
CB OUT
Y OUT
CR OUT
CB OUT
Y OUT
CB CR
Monitor TV
(with component jacks)
CR IN
CB IN
Y IN
DVD Player (with component jacks)
Video Recorder, DVD Recorder,
Satellite Cable Tuner & Game
Player (with component jacks)
13
EN
