Compactor
PRODUCT MODEL NUMBERS
TC607X
TC707S
Electrical: 115-volt, 60-Hz, AC-only, 15- or
20-amp. grounded circuit is required. A time-delay
fuse or circuit breaker and separate circuit is
recommended.
Recommended Grounding Method: This
compactor is for use on a single phase, 115-volt,
60 Hz, AC only, 15- or 20-amp fused and properly
grounded circuit and is equipped with a grounding
plug as shown below. It is recommended that a
separate circuit serving only this appliance be
provided.
This compactor must be grounded while in use to
reduce the risk of electric shock. The compactor is
equipped with a threeconductor cord and 3 prong
grounding-type plug to fit the proper grounding-
type receptacle. The green (or green and yellow)
conductor in the cord is the grounding wire. Do
not connect the green (or green and yellow) wire
to a live terminal.

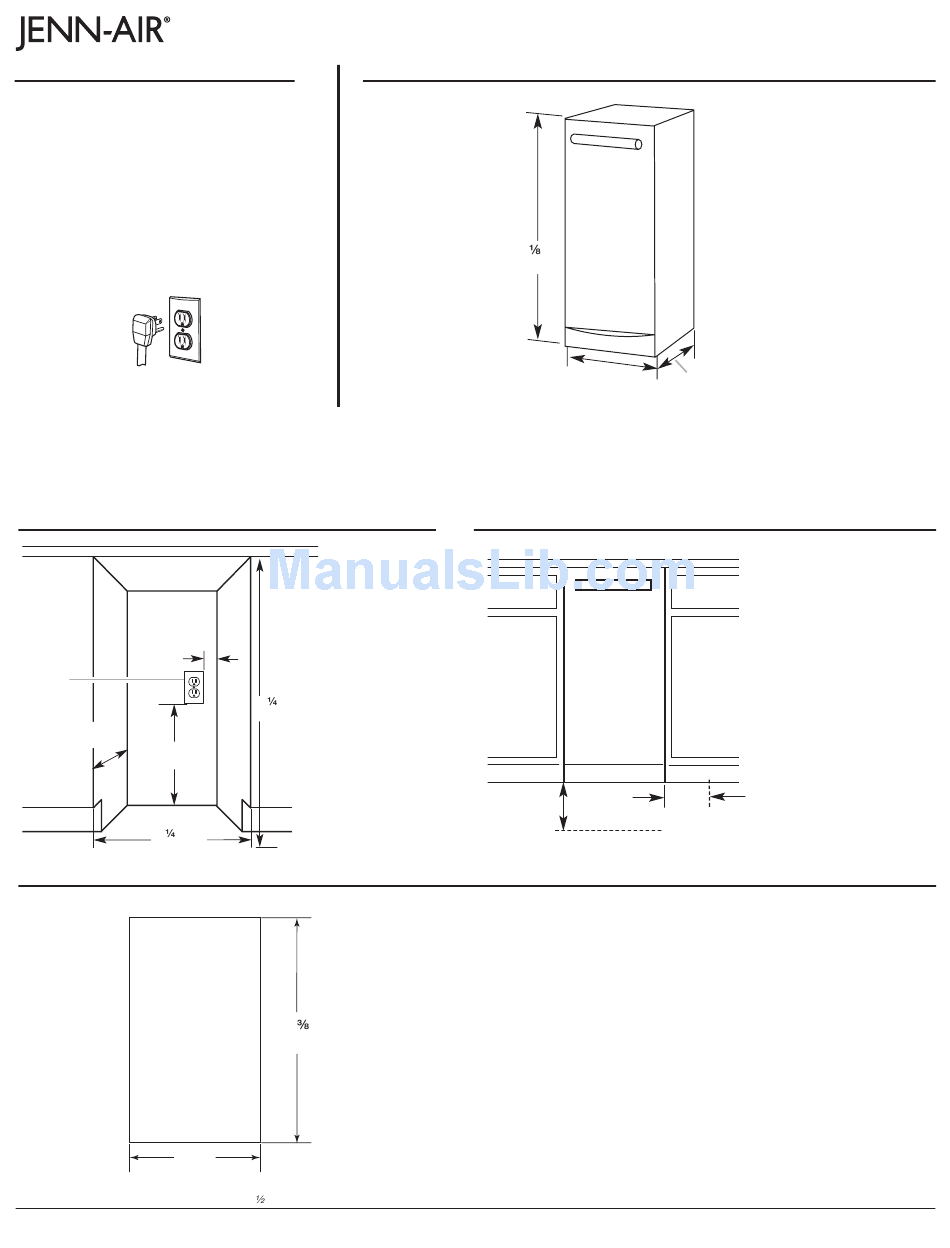

CABINET OPENING DIMENSIONS
3" min.
(7.6 cm)
A
24" min.
(61 cm)
18" min.
(45.7 cm)
15 " min.
(38.7 cm)
CUSTOM PANELS
15"
( 38.1 cm )
The panel should be a minimum of
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
OVERALL DIMENSIONS
34 " min.
(87 cm)
A. Grounded electrical outlet
must be a minimum of 3"
(7.6 cm) away from
surrounding cabinets or
nearby walls as shown. It
can be placed either to the
left or the right side of the
product.
29
"
(74.6 cm)
" (13 mm) thick.
34 "
(86.7 cm)
15"
(38.1 cm)
CLEARANCE DIMENSIONS
B
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
24"
(61 cm)
A. Leave 6" (15.2 cm) of clearance
space to the right side of the
compactor in order to remove the
compactor bags.
B. Leave 23" (58.4 cm) of clearance in
front of the compactor in order to
fully open or remove the compactor
drawer.
A
