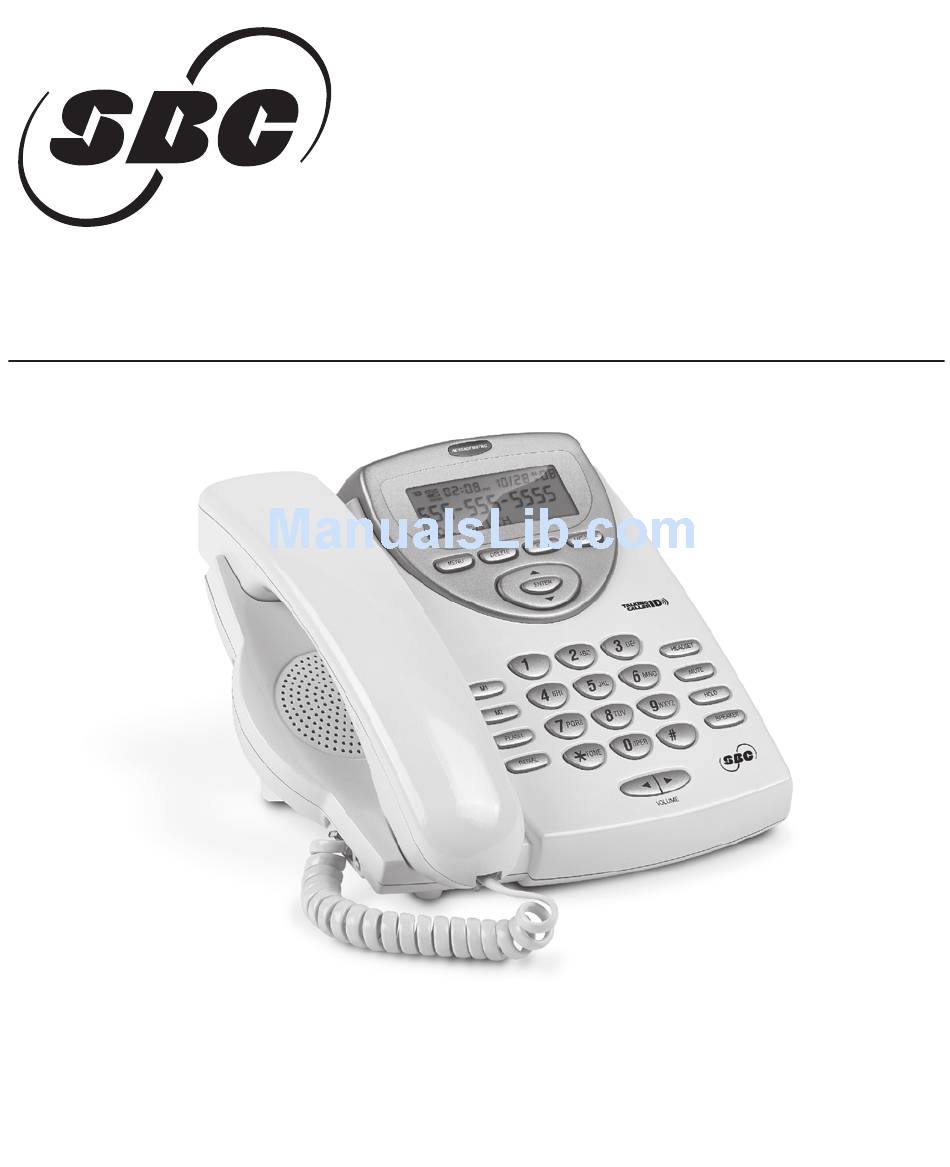

- Page 1 SBC-116 Users Manual Multi-Function Caller ID Speakerphone For problems with installation or operation, visit our web site at www.sbctelephones.com or call 800-400-5156 © 2006 Grace Digital Inc., All rights Reserved SBC is a trademark of AT&T Knowledge Ventures, L.P, Licensed to Grace Digital Inc.
-
Page 2: Fcc Registration Information
FCC Registration Information v. 11.17.06... -
Page 3: Table Of Contents
Table Of Contents FCC Registration Information ................Inside Cover Feature List ..........................2 Safety Instructions ........................3 Introduction ..........................4 Wall Mounting Instructions ..................... 5 Location Controls ........................6 Function Buttons ........................7 Function Operations ......................10 Talking Caller ID (TCID) ......................13 Caller ID on Call Waiting ....................... -
Page 4: Feature List
Feature List Speakerphone Message waiting lamp* Talking Caller ID* Caller ID with Caller ID call waiting* Adjustable angle base Data port Adjustable volume control (handset, headset, speaker) Adjustable ringer control FSK system for message waiting notification (VMI) CID type II for caller/call waiting Caller ID* 2 one-touch Memory Speed dial buttons 99 number/name in Caller ID history* 15 number outgoing call in memory... -
Page 5: Safety Instructions
Safety Instructions To reduce the risk of fire, electrical shock, and injury, please follow these basic safety precautions before you use this equipment. 1. Carefully read the instructions in this manual. 2. Follow all warnings and instructions marked on the unit. 3. -
Page 6: Introduction
Introduction Congratulations on the purchase of your new telephone. It has been manufactured to very high quality standards for convenient and reliable service. This telephone can be used with “Call Identification (Caller ID) Service” and/or “Call Waiting Caller ID Service” that is provided by your local telephone company. -
Page 7: Wall Mounting Instructions
Wall Mounting Instructions The unit can be mounted to any wall surface using two self-tapping screws (not supplied). Follow the instructions. 1. Install two self-tapping screws at a distance of 10.5cm (4.125”) from each other and located on a vertical center line. (See Figure 1) 2. -
Page 8: Location Controls
Location Of Controls Message Waiting lamp MUTE button MENU button HOLD button DELETE button SPEAKER button ENTER button Volume ( and ) buttons SAVE button Data jack MESSAGE button Ringer volume switch button (Up and Down) Dialing mode switch M1 (memory 1) button Telephone line jack M2 (memory 2) button 9VDC power jack... -
Page 9: Function Buttons
Functions Message Waiting Lamp If you subscribe to “Voice Messaging” (a service offered by your telephone company) this lamp will flash whenever a new message is on the system. This light should stop flashing after the call is retrieved. MENU Function Use this button to access a variety of the phones functions displayed on the LCD. - Page 10 Functions MUTE Function Pressing the MUTE button turns off the telephones microphone so that the other party cannot hear you, but you can hear them. Pressing the MUTE button again restores connection to the microphone so the other party can again hear you. The LCD will display “MUTE”...
- Page 11 Functions MESSAGE Button If you subscribe to “Voice Messaging” (a special telephone service), this function will operate in the following manner: When the indicator is displayed on the LCD and the “Message Waiting” lamp Is on, you can press the MESSAGE button to connect to your “Voice Messaging” service.
-
Page 12: Function Operations
Function Operations To access the function settings of this phone, press the MENU button and use the buttons to select a function. NOTE: The phone must be in the on-hook position to access the MENU mode settings. The setting sequence is PHONE BOOK - CALL WAITING - DATE FORMAT - HOUR FORMAT - SET FLASH - SET AREA CODE - SET LANGUAGE - SET TIME - LCD CONTRAST - BACK LIGHT - SET TALKING CID. - Page 13 Function Operations 2. With the phone on-hook, you may directly access the phone book by pressing the number 1 plus #. The LCD will show the first name/number entry in the phone book. Use the or button to scroll to the desired name/number. The contact displayed in the LCD can be automatically dialed by picking up the handset.
- Page 14 Function Operations AREA CODE SETTING When you use this phone for the first time, or move to an area that has a different area code, you must enter your area code. This is necessary because the phone must distinguish local or long distance calls to properly dial calls from the Caller ID list and phone book.
-
Page 15: Talking Caller Id (Tcid)
Function Operations To adjust OFF HOOK light time: While in the BACK LIGHT mode press or and the LCD will display “OFF HOOK LIGHT” - When the LCD shows “OFF HOOK LIGHT”. Press the ENTER then or button to select if you would like the BACK LIGHT to remain illuminated ALL THE TIME or FOR SECONDS (time chosen for the BACK LIGHT time). -
Page 16: Caller Id On Call Waiting
Talking Caller ID (TCID) PERSONALIZING TCID ANNOUNCEMENTS You can personalize the way that a call is announced by simply entering a name and number in the Phone Book on the phone. The name stored in the Phone Book will override the name attached to the Caller ID record. For instance, if the name passed through with a Caller ID record is Smith Julie (or, for that matter, “Unknown Name”, by adding this phone number to the phone book and entering a new name, the call can be announced as “The Smiths”... -
Page 17: Receiving Call Records
Caller ID Call Records A caller ID record consists of the following information: Reviewing Display Messages MESSAGE WAITING - If you have voice mail service from your telephone company and a message is left, the MESSAGE WAITING light will turn on and the message icon will appear in the upper left corner of the LCD. -
Page 18: Caller Id System Operations
Caller ID System Operations Subscription to Caller ID service and/or voice mail service from your local phone company is required to experience these features. • New Voice Message Indicator - The red indicator light above the LCD will flash to indicate that you have a new voice message waiting. The lamp will continue to flash until all the new calls have been reviewed. -
Page 19: Troubleshooting
Troubleshooting If you have problems with your phone, please check below for helpful hints: BLANK OR FAINT LCD • Check and adjust the LCD Contrast. Check the line cord. Connect the telephone cord. Check batteries, Check adapter power adapter connection to phone and wall. PHONE WILL NOT RING • Check ringer switch on the back of the phone. If ringer is on, you may have too many communication devices hooked to a single line. A communication device can be a phone, modem or facsimile (FAX) machine. -
Page 20: Warranty
Warranty This product has a one-year over the counter warranty. For any inquiries after the warranty period, please contact Grace Digital Inc. at (800) 400-5156. Hours are from 8:00 a.m. to 5:00 p.m. PST, Monday through Friday or visit www.sbctelephones.com. In case of difficulties, visit our service center at www.sbctelephones.com or call 800-400-5156 ©...
