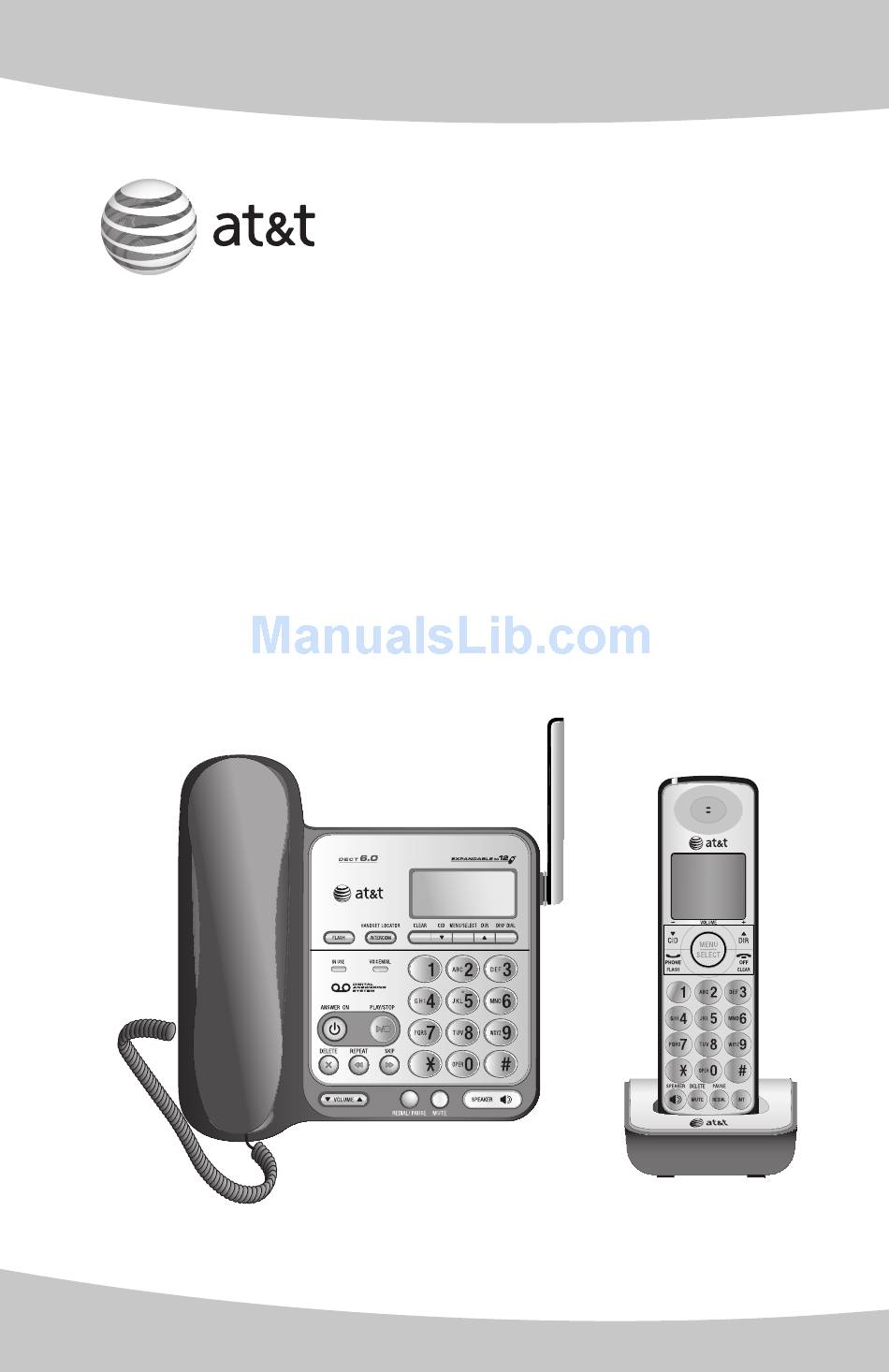

- Page 1 Quick start guide CL84109/CL84209/CL84309 DECT 6.0 corded/cordless telephone/answering system with caller ID/call waiting...
-
Page 2: Installation
Installation You must install and charge See pages 5-6 STOP! the battery before using the for easy instructions. telephone. Install the telephone base close to a telephone jack and a power outlet not controlled by a wall switch. The telephone base can be placed on a flat surface or vertically mounted on the wall. - Page 3 Backup batteries installation and use In the event of a power failure, your telephone can still operate with limited functions if there are backup batteries (purchased separately) installed in the telephone base. If a power failure happens during a call on the corded handset, the call continues (at the lowest volume) until you hang up;...
-
Page 4: Telephone Base Installation
Telephone base installation Install the telephone base as shown below. The telephone base is ready for tabletop use. If you want to change to wall mounting, see the user’s manual for details. . Plug the small end of the 7. Plug the large end power adapter into the of the power adapter power jack on the bottom... -
Page 5: Charger Installation
Charger installation Install the charger as shown below. Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION . Use only the power adapter(s) supplied with this product. To order a replacement www.telephones.att.com power adapter, visit our website at or call 1 (800) 222-3111 1 (866) 288-4268... -
Page 6: Battery Installation And Charging
Battery installation & charging Install the battery as shown below. Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the charger when not in use. - Page 7 Battery installation & charging Step 3 Charge the handset by placing it face up in the charger. The CHARGE light will be on when charging. IMPORTANT INFORMATION . Use only the supplied rechargeable battery or replacement battery (model BT800). www.telephones.att.com 1 (800) To order, visit our website at or call...
- Page 8 Quick reference guide - handset MENU/SELECT CHARGE indicator Press to show the menu. On when the handset is charging in the charger. While in the menu, press to select an item or save an entry qCID/-VOLUME or setting. Press qCID to show caller ID DIRp/+VOLUME history.
-
Page 9: Using Menus
Quick reference guide - handset Main menu Main menu ANS. SYSTEM > Highlights a menu DIRECTORY item. CALL LOG >ANS. SYSTEM RINGER VOLUME DIRECTORY RINGER TONE KEY TONE LCD LANGUAGE SET DATE/TIME CLR VOICEMAIL HOME AREA CODE Menu Using menus Press MENU/ to show the main menu. - Page 10 Quick reference guide - telephone base CLEAR • : While using menus, press to cancel an operation, back up to the INTERCOM/HANDSET LOCATOR • : While phone is idle, previous menu or exit the press to page all handsets or initiate an intercom call. menu display.
- Page 11 www.telephones.att.com © 00 Advanced American Telephones. All rights reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78. Printed in China. Issue AT&T 04/0.
