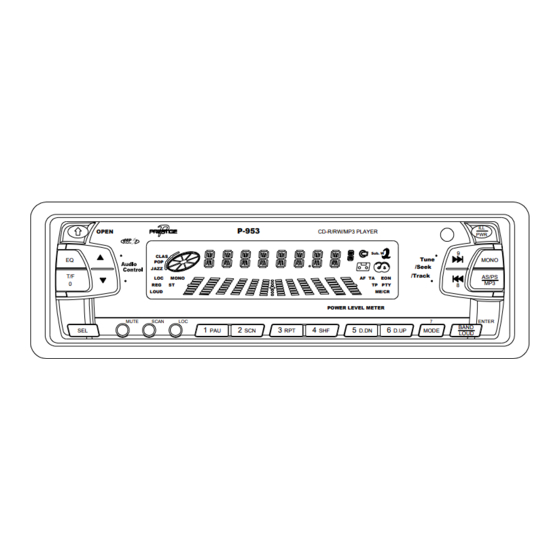

OPEN
CLAS
EQ
POP
JAZZ
T/F
LOC
MONO
0
REG
ST
LOUD
MUTE
SCAN
LOC
1
SEL
PAU
AM/FM/MPX RADIO WITH FOLD-DOWN
DETACHABLE FRONT PANEL,
COMPACT DISC PLAYER,
AUXILIARY AUDIO INPUT, MP3 CD PLAYBACK,
CD CHANGER CONTROLS,
WIRELESS REMOTE CONTROL
AND QUARTZ CLOCK
Released 6-14-02
P-953
CD-R/RW/MP3 PLAYER
Sub. W
Tune
/Seek
/Track
AF TA
EON
TP
PTY
ME/CR
POWER LEVEL METER
7
2
3
4
5
6
SCN
RPT
SHF
D.DN
D.UP
MODE
ILL
PWR
9
P-953
MONO
AS/PS
MP3
8
ENTER
BAND
LOUD
O O O O O WNER'S
WNER'S
WNER'S
WNER'S
WNER'S
MA
MA
NUAL
NUAL
MA NUAL
MA
MA
NUAL
NUAL
Advertisement
Table of Contents
Related Manuals for Audiovox Prestige P-953
Summary of Contents for Audiovox Prestige P-953
- Page 1 P-953 OPEN CLAS JAZZ MONO LOUD MUTE SCAN AM/FM/MPX RADIO WITH FOLD-DOWN DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, AUXILIARY AUDIO INPUT, MP3 CD PLAYBACK, CD CHANGER CONTROLS, WIRELESS REMOTE CONTROL AND QUARTZ CLOCK Released 6-14-02 CD-R/RW/MP3 PLAYER Sub. W P-953...
-
Page 2: Table Of Contents
INDEX Page Operating Instructions ... 3 - 9 Setting the Clock ... 9 CD Player Error Codes ... 9 Specifications ... 10 CD Changer Controls ... 11 CD Changer Error Codes ... 12 Wireless Remote Control Operation ... 13 Playing MP3 Music Files ... 14 Notes on Discs ... -
Page 3: Operating Instructions
The display will automatically return to the normal indication 5 seconds after the last volume adjustment or when another function is activated. These control buttons are also 11, 20, 21, 37, 38 P-953 CD-R/RW/MP3 PLAYER Sub. W CLAS JAZZ... - Page 4 4 4 4 4 4 BASS CONTROL To adjust the bass level (Equalizer function inactive), first select the Bass mode by pressing the SEL button appears on the display panel. Within 5 seconds of choosing the Bass mode, press the AUDIO CONTROL the bass response, or the AUDIO CONTROL button to increase...
- Page 5 disc play, pressing this button will mute disc audio and disc play will be paused. During this time, the indication will remain on the display panel to show that a disc is still loaded in the unit. bl bl bl bl bl AM/FM BAND SELECTOR (BAND) Each time the BAND/LOUD button is pressed momentarily, the radio band is changed.
- Page 6 4. Repeat the above procedure for the remaining 5 pre-sets on that band and for the other 3 bands on the unit. br br br br br VACUUM FLUORESCENT DISPLAY (VFD) The Vacuum Fluorescent Display (VFD) panel displays the frequency, time, and activated functions using one of three illumination levels as selected by the PWR/ILL button bs bs bs bs bs...
- Page 7 cn cn cn cn cn PAUSE (PAU) BUTTON The Pause function is used to freeze disc play when the CD player or optional CD changer is in use. S--PAUSE will appear on the display. Press this button again to resume disc play from the point at which it was stopped and S--PAUSE will disappear.
- Page 8 dl dl dl dl dl PRE-SET SCAN (PS) /AUTO-STORE TUNING (AS) Press this button momentarily to scan the stations pre-set into the six memories of the current band in use. The unit will stop at each pre- set station for 5 seconds before continuing to the next pre-set station (the pre-set number on the display panel will flash during Pre-Set Scan operation).
-
Page 9: Setting The Clock
NOTES ON USE OF REMOTE INPUT JACK: The remote input jack provides the user option of applying an external audio source to the radio.The audio jack is compatible with most "Walkman" CD and cassette players, or an MP3 digital audio playback unit. When the external source is connected, only that media is played by the radio;... -
Page 10: Specifications
SPECIFICATIONS Size: 7" W x 2" H x 6-1/4"D 178 mm x 50 mm x 158 mm Operating Voltage: 12 volts DC, negative ground Fuse Ratings: Constant (Yellow wire): 15 AMP. Switched (Red wire): 0.5 AMP. Output Power: 160 watts maximum (40 watts x 4 channels) Output Wiring: Floating-ground type designed... -
Page 11: Cd Changer Controls
CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Prestige/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio play. -
Page 12: Cd Changer Error Codes
will be continually repeated until the Disc Repeat mode is canceled by pressing the RPT button again or by activating the Scan or Shuffle Play functions. em em em em em DISC/TRACK SHUFFLE PLAY (SHF) When the SHF button is pressed, the SHF indication will appear on the display panel and the tracks on the disc will be played in a random, shuffled order. -
Page 13: Wireless Remote Control Operation
WIRELESS REMOTE CONTROL OPERATION The wireless remote control supplied with this model is capable of operating most of the features of the unit from a remote location. Each button on the remote control functions in the same way as the referenced button on the main unit. For optimal operation of the remote control, always aim it toward the Remote Sensor on the front panel of the main unit. -
Page 14: Playing Mp3 Music Files
CD song that has 50 megabytes of data into an MP3 that has only 4 or 5 megabytes. The P-953 can play MP3s directly from files contained on a CD-R/RW, by using the MP3 buttons on the radio (or Remote Control). - Page 15 Directory/ Album and/or song title. 13. Time/Frequency (T/F): This button functions in the same man- ner as Preset 1, except it represents symbol/numeric characters _, -, +, 0. P-953 CD-R/RW/MP3 PLAYER Sub. W CLAS JAZZ...
- Page 16 ACCESSING THE ID TAG To access the ID tag, when supported, proceed as follows: 1. Press the MP3 (AS/PS) button until the ID Tag, if supported, is displayed. NOTE: The ID TAG can specify the Songname, Artist, Album, Year, and/or Comments. 2.
-
Page 17: Notes On Discs
NOTES ON DISCS: Attempting to use non-standard shape discs (e.g.; square, start, heart) may damage the unit. Be sure to use round-shape CDs only in this unit. NOTES ON CD-Rs (Recordable CDs)/CD-RWs (Rewriteable CDs): 1. Be sure to use discs with the following marks only for play in this unit: 2. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for reference on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine mainte- nance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities. -
Page 19: Warranty
12 / 24 MONTH LIMITED WARRANTY Applies to automotive radios, radio/tape players, radio/CD players, CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 20 © 2002 AUDIOVOX ELECTRONICS CORP., HAUPPAUGE, NY Printed in China 128-6356 -20-...
