Am/fm/mpx radio with detachable front panel, compact disc player and quartz clock
Hide thumbs Also See for Prestige P-942WESP:

Advertisement

P-942WESP
RELEASE
LOUD
SEL
BAND
1
AM/FM/MPX RADIO
WITH DETACHABLE FRONT PANEL,
COMPACT DISC PLAYER
AND QUARTZ CLOCK
Released 8-15-03
T/F
2
3
4
5
6
MODE
LOC
MUTE
AS/PS
EQ
POWER
O O O O O WNER'S
WNER'S
WNER'S
WNER'S
WNER'S
MA
MA
MA NUAL
MA
MA
NUAL
NUAL
NUAL
NUAL
128-6887
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige P-942WESP and is the answer not in the manual?

Questions and answers

Summary of Contents for Audiovox Prestige P-942WESP

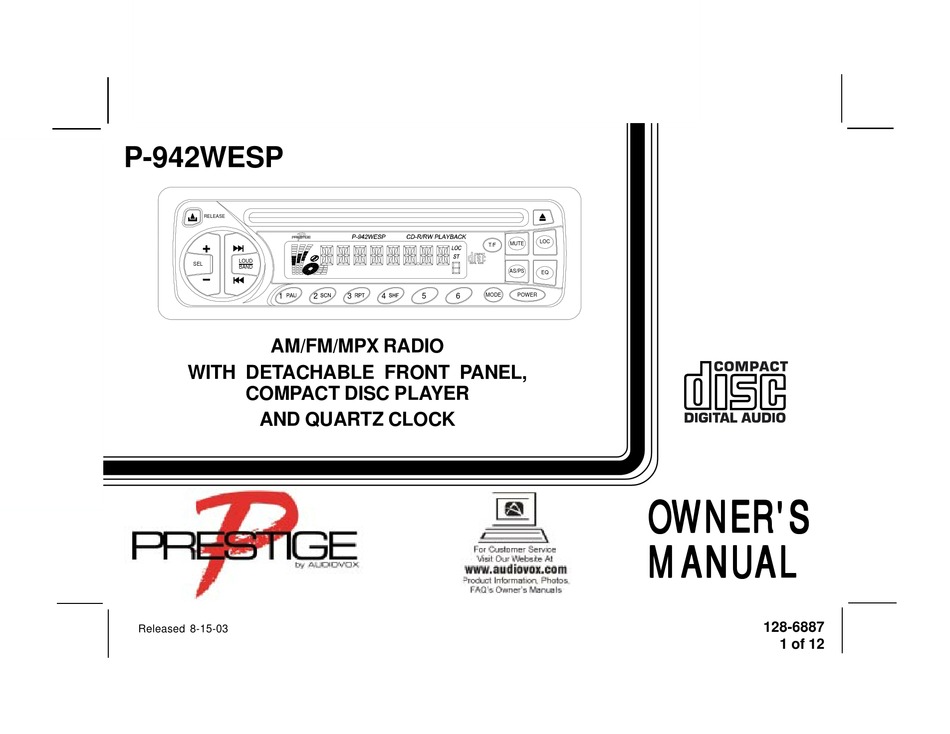

  • Page 1 P-942WESP RELEASE LOUD BAND AM/FM/MPX RADIO WITH DETACHABLE FRONT PANEL, COMPACT DISC PLAYER AND QUARTZ CLOCK Released 8-15-03 MUTE AS/PS MODE POWER O O O O O WNER'S WNER'S WNER'S WNER'S WNER'S NUAL NUAL MA NUAL NUAL NUAL 128-6887 1 of 12...
  • Page 2: Table Of Contents

    INDEX Page Operating Instructions ... 3 - 8 Setting the Clock ... 8 CD Player Error Codes... 8 Specifications ... 9 Care and Maintenance ...10 Notes on Discs ...11 Electronic Skip Protection ...11 Warranty ... Back Cover 128-6887 2 of 12...
  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS 11, 20, 21 RELEASE 8, 10 1 1 1 1 1 POWER OFF BUTTON Press this button to turn the unit on and off. When the ignition is on, the unit will also turn on automatically when a disc is loaded, or when any other button is pressed.
  • Page 4 level will be shown on the display panel from a minimum of BAS -10 to a maximum of B 10 (B 00 represents flat response). The display will automatically return to the normal indication 5 seconds after the last adjustment or when another function is activated. TREBLE CONTROL To adjust the treble level, first select the Treble mode by pressing the SEL button until the TRB indication appears on the display panel.
  • Page 5 AUTO-STORE (AS) / PRE-SET SCAN (PS) TUNING Press this button momentarily to scan the 6 stations in the pre-set memories of each FM band in sequence (or the AM band if in use). The unit will stop at each pre-set station for 5 seconds before continu- ing to the next pre-set station.
  • Page 6: Track Select

    Nonetheless, when the EQ function is active, the bass and treble levels can still be changed to accommodate the listener ear. When the EQ function is not active, the unit returns to the user-set bass and treble levels. The FLAT selection indicates no equalizer enhance- ment of the program, thereby removing the preset sound effects, un- less otherwise desired, while DSP OFF inhibits selection of equalizer mode enhancement.
  • Page 7: Reset Button

    SHUFFLE (SHF) PLAY SELECT During disc play, press this button to play the tracks on the disc in a random shuffled order (S---SHF will appear on the display panel). In Shuffle Play mode, the Forward Track Select ( tracks in the random order instead of the normal progression. Back- ward Track Select ( ) will go back to the beginning of the track in play.
  • Page 8: Detaching The Front Panel

    DETACHING THE FRONT PANEL Release button ATTACHING THE FRONT PANEL Engage right side first SETT T T T T ING THE CLOCK ING THE CLOCK ING THE CLOCK ING THE CLOCK ING THE CLOCK 1. Switch the vehicle ignition “on” and the radio “on” (radio fre- quency or disc track number will be shown on the display panel).
  • Page 9: Specifications

    SPECIFICATIONS Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Low-Level Output: Tuning Range: Sensitivity: FM Stereo Separation: CD Frequency Response: 20 – 20,000 Hz, +/- 3 dB CD Signal/Noise Ratio: CD Channel Separation: >55 dB CD Distortion: *Specifications are subject to change without notice. 7"...
  • Page 10: Care And Maintenance

    CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for refer- ence on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities.
  • Page 11: Notes On Discs

    NOTES ON DISCS Attempting to use non-standard shape discs (e.g.; square, star, heart) may damage the unit. Be sure to use round-shape CDs only in this unit. NOTES ON CD-Rs (Recordable CDs)/CD-RWs (Rewriteable CDs): 1. Be sure to use discs with the following marks only for play in this unit: 2.
  • Page 12: Warranty

    CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
