Summary of Contents for Audiovox Prestige P-955

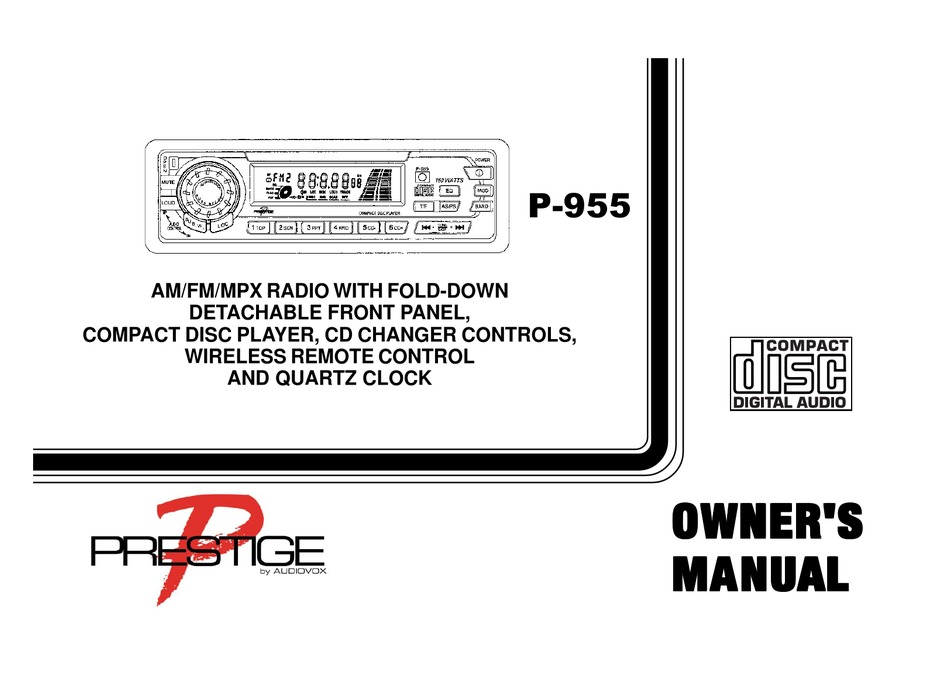

- Page 1 AM/FM/MPX RADIO WITH FOLD-DOWN DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS, WIRELESS REMOTE CONTROL AND QUARTZ CLOCK O O O O O WNER'S WNER'S WNER'S WNER'S WNER'S NUAL NUAL MA NUAL NUAL NUAL...
-
Page 2: Table Of Contents
INDEX Page Operating Instructions ... 3 - 9 Setting the Clock ... 10 CD Player Error Codes ... 10 CD Changer Controls ... 11 CD Changer Error Codes ... 12 Wireless Remote Control Operation ... 13 Specifications ... 15 Care and Maintenance ... 16 Warranty ... -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS ON-OFF POWER BUTTON ( Press this button to turn the unit on or off. If the ignition switch is “on”, the unit will also turn on automatically when a compact disc is inserted, or if the BAND switch or Mode switch (MOD) is pressed. - Page 4 Within 5 seconds of choosing the Bass mode, turn the AUDIO CONTROL counter-clockwise to decrease the bass response or clockwise to increase it as desired. The level will be shown on the display panel from a minimum BAS -12 to a maximum of BAS +12 (BAS 00 indicates flat response).
- Page 5 panel according to your selection. During disc play, pressing this button will stop play of the disc and switch to radio operation without ejecting the disc. During this time, the will remain on the display panel to show that a disc is still loaded in the unit.
-
Page 6: Function Display
3. Press the pre-set button to be set and continue to hold it in for approximately 2 seconds. The pre-set number will appear on the display panel and two beeps will sound, indicating that the station is now set into that pre-set memory position. The station can now be recalled at any time by pressing that button. - Page 7 CUE/REVIEW FUNCTIONS (+ During disc play, high-speed audible search to any section of the disc can be made by the Cue and Review functions. Press and hold the Cue (+ ) side of the button to advance rapidly in the forward direction (the advancing disc playing time will be shown on the display panel), or the Review ( button to advance rapidly in the backward direction (the decreasing disc playing time will be shown on the display panel).
- Page 8 DISC SELECT UP/DOWN (CD+/CD-) During CD changer operation, these buttons are used to select the desired disc for play. To advance to a higher number disc, press the CD+ button, and to return to a lower number disc, press the CD- button. The number of the disc in play will be shown on the display panel.
-
Page 9: Notes On Use Of Front Panel
NOTES ON USE OF FRONT PANEL 1. Make sure the front panel is oriented correctly when sliding it into the front mounting plate, as it cannot be attached when up- side down. Use moderate pressure to fully seat the panel into position. 2. -
Page 10: Setting The Clock
CD PLAYER ERROR CODES If a problem should develop while operating the CD player, an error code (ER-1, ER-2, ER-3, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. -
Page 11: Cd Changer Controls
CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Prestige/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio play. -
Page 12: Cd Changer Error Codes
RPT button again or by activating the Scan functions. When the Repeat button is pressed twice the DISC and RPT indications will appear on the display panel and play of the selected disc will be continually repeated until the Disc Repeat mode is canceled by pressing the RPT button again or by activating the Scan or Random Play... -
Page 13: Wireless Remote Control Operation
WIRELESS REMOTE CONTROL OPERATION The wireless remote control supplied with this model is capable of operating most of the features of the unit from a remote location. Each button on the remote control functions in the same way as the referenced button on the main unit. For optimal operation of the remote control, always aim it toward the Remote Sensor on the front panel of the main unit. - Page 14 -14-...
-
Page 15: Specifications
SPECIFICATIONS Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Tuning Range: Sensitivity: FM Stereo Separation: *Specifications are subject to change without notice. 7" W x 2" H x 6" D 178mm x 50mm x 150mm 12 Volts DC, Negative Ground 160 Watts Maximum (40 Watts x 4 Channels) Floating-Ground Type Designed for use with 4 Speakers (Front and Rear Channels Cannot be... -
Page 16: Care And Maintenance
CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for reference on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities. -
Page 17: Warranty
CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 18 © 2000 Audiovox Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 Printed in China 128-5799A...
