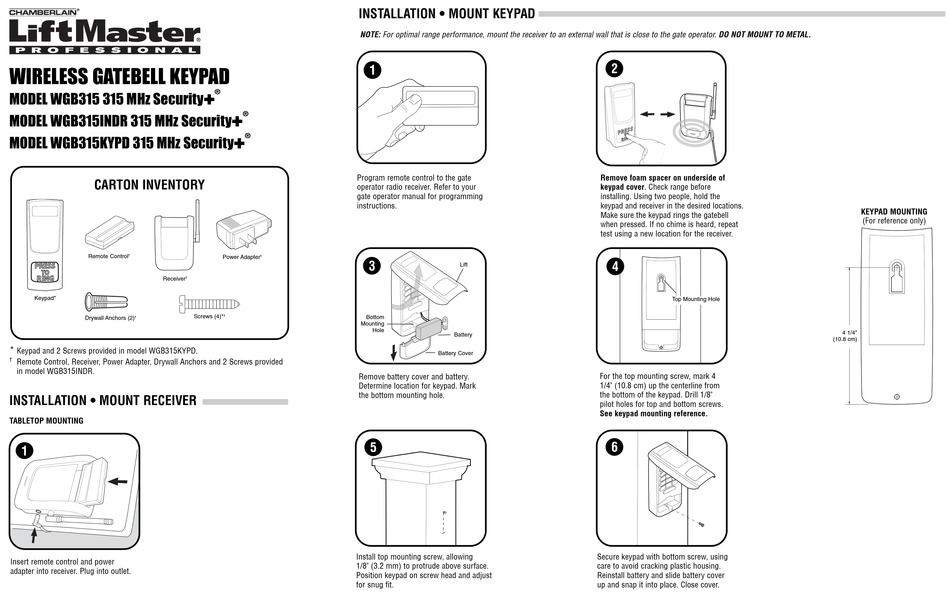

Chamberlain LiftMaster Professional WGB315 Security+ User Manual

WIRELESS GATEBELL KEYPAD
LEARN
MODEL WGB315 315 MHz Security✚
MODEL WGB315INDR 315 MHz Security✚
MODEL WGB315KYPD 315 MHz Security✚
CARTON INVENTORY
PRESS
TO
R ING
Remote Control †
PRESS
PRESS
TO TO
R ING RING
Receiver †
Keypad* PRESS
TO
RING
Drywall Anchors (2) †
*
Keypad and 2 Screws provided in model WGB315KYPD.
†
Remote Control, Receiver, Power Adapter, Drywall Anchors and 2 Screws provided
in model WGB315INDR.
INSTALLATION • MOUNT RECEIVER
TABLETOP MOUNTING
1
LEARN
Insert remote control and power
adapter into receiver. Plug into outlet.
INSTALLATION • MOUNT KEYPAD
NOTE: For optimal range performance, mount the receiver to an external wall that is close to the gate operator. DO NOT MOUNT TO METAL.
1
®
PRESS
TO
®
RING
®
PRESS
TO Program remote control to the gate
R ING
operator radio receiver. Refer to your
gate operator manual for programming
instructions.
PRESS
TO
RING
Power Adapter †
3
Screws (4)* †
Bottom
Mounting
Hole
Remove battery cover and battery.
Determine location for keypad. Mark
the bottom mounting hole.
5
Install top mounting screw, allowing
1/8" (3.2 mm) to protrude above surface.
Position keypad on screw head and adjust
for snug fit.
PRESS
TO
RING
Lift
Battery
Battery Cover
LEARN
LEARN
2
PRESS
TO
R ING
Remove foam spacer on underside of
keypad cover. Check range before
installing. Using two people, hold the
keypad and receiver in the desired locations.
Make sure the keypad rings the gatebell
when pressed. If no chime is heard, repeat
test using a new location for the receiver.
4
Top Mounting Hole
LEARN
For the top mounting screw, mark 4
1/4" (10.8 cm) up the centerline from
the bottom of the keypad. Drill 1/8"
pilot holes for top and bottom screws.
See keypad mounting reference.
6
LEARN
LEARN
LEARN
Secure keypad with bottom screw, using
care to avoid cracking plastic housing.
Reinstall battery and slide battery cover
LEARN
up and snap it into place. Close cover.
KEYPAD MOUNTING
(For reference only)
LEARN
4 1/4"
(10.8 cm)
