Chamberlain LiftMaster TAC2C Installation Manual

Installation Guide
IMPORTANT: The TAC2C has a Ringer Equivalence Number (REN) of 5 with or without a TELCO line.
Introduction
DO NOT run data wires and HIGH VOLTAGE wires in the same
conduit. The HIGH VOLTAGE wires may interfere with the data
wires and cause the unit to malfunction.
To AVOID damaging gas, power or other underground utility lines,
contact underground utility locating companies BEFORE digging.
To prevent damage to the unit:
• Use the new 16 Vdc transformer ONLY.
• Use dedicated 110 Vac outlet ONLY.
CARTON INVENTORY
Hardware Bag
Complete with: Hex Head Tamper Resistant Screws (4), Hex Tool (1),
and Ground Lug (1)

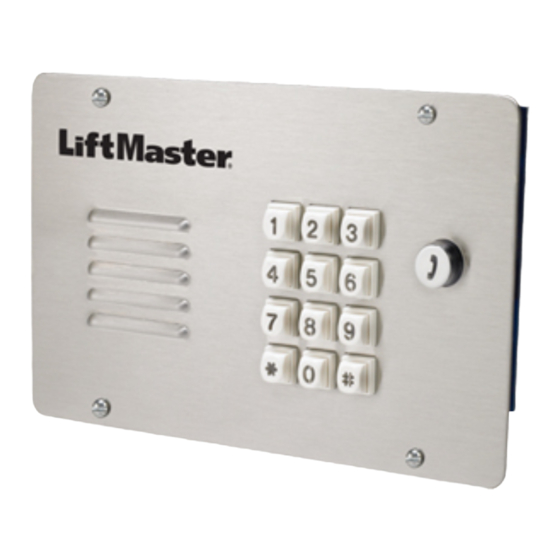

Faceplate with Processor Board (1)
16 Volt DC 2.5 Amp Transformer (UL Listed) (1)
Install and Programming Guide (1)
Labels (9)
SPECIFICATIONS
Power Supply: 16 Vdc 2.5 Amp
The 110 Vac outlet must be dedicated to the unit only. This outlet
should be wired back to its own 10 Amp minimum circuit breaker.
This will prevent two problems:
• Other equipment cannot introduce spikes, noise, surges, or dips
into the power circuit.
• The unit's operation will not be affected if any other equipment
develops a short circuit across the power line.
Dimensions: 9.72" x 6.22" (W x H)
9.72"
Microphone
1 2 3
4 5 6
6.22"
7 8 9
0 #
*
Speaker
Keypad

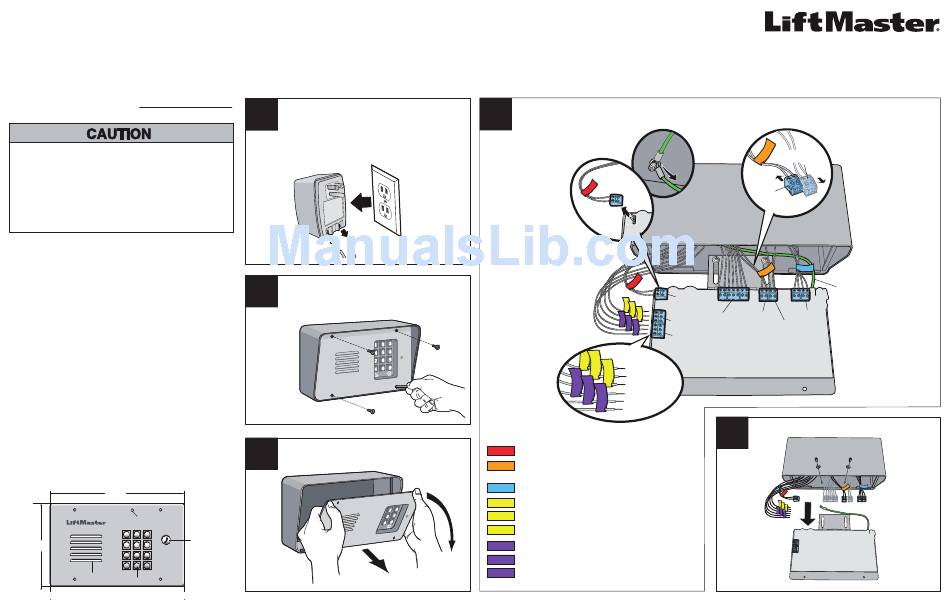

Unplug the transformer from the outlet. Disconnect the
1
wires from the existing transformer.
IMPORTANT NOTE: DO NOT use the existing transformer, the
provided transformer MUST be used instead.
Remove the screws from the Crown Jewel faceplate
2
using the provided hex tool.
Slide the faceplate forward and rotate downward.
3
Call Button
4
Identify the terminal blocks on the Crown Jewel board. Attach the provided labels to the
corresponding wires as shown. Once the wires are labeled, remove them from the board.
When the wires have
been labeled correctly,
remove the terminal
blocks from the board.
The relay wires will need to be
removed and re-wired to the terminal
block on the new board.
RELAY 2, NO
RELAY 2, NC
RELAY 2, COM
RELAY 1, NO
RELAY 1, NC
RELAY 1, COM
COLOR LABEL DESCRIPTION
POWER 16 Volt DC power input
AUTOCALL Input for accessory device to
trigger home dialing
PHONE/TELCO Input connection for TELCO
RELAY 2, NO NO input for Relay 2
RELAY 2, NC NC input for Relay 2
RELAY 2, COM COM input for Relay 2
RELAY 1, NO NO input for Relay 1
RELAY 1, NC NC input for Relay 1
RELAY 1, COM COM input for Relay 1
TAC2C
TAC1 RETROFIT KIT FOR CROWN JEWEL SYSTEMS
Remove the ground wire
that runs from the board
to the ground screw in
Separate the Exit terminal block
the existing housing.
Exit Terminal Block
from the Autocall terminal block by
(no longer available)
sliding them apart as shown.
Autocall
Terminal
Block
Ground Wire
POWER
PHONE/TELCO
AUTOCALL
EXTERNAL KEYPAD
RELAY 2
(no longer available)
EXIT
(no longer available)
RELAY 1
CROWN JEWEL BOARD
Remove the screws (2) securing the faceplate to the
5
housing.
