RocketFish DJ Hero RF-GSL010 Quick Setup Manual

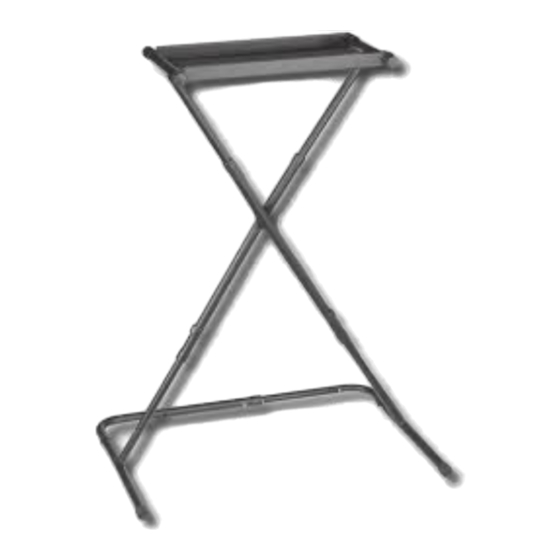

DJ Hero™ Stand

Package contents

Center crossbar Top supports (2)
Base bar Stand feet (2)

Product features

• Designed for use with DJ Hero™ turntables for PlayStation®2,
PlayStation®3, Xbox 360®, and Wii™
• Made of sturdy, durable material
• Adjustable stand provides two height levels
• Easy assembly

Setting up the stand

1 Hold the stand feet upright.
RF-GSL010
09-0854_RF-GSL010_DJ Hero Stand_1 1 09-0854_RF-GSL010_DJ Hero Stand_1 1
Top cradle bars (2)
Bolt clips (4) Quick Setup Guide
QUICK SETUP GUIDE
2 Insert one stand foot into the longer arm on the center crossbar.
3 Locate the two holes on the center crossbar. These holes determine the
height of the stand.
4 Align the two holes in the crossbar with the holes in the feet to set the
height, then insert a bolt clip through each of the holes.
Higher
5 Repeat Steps 1 through 4 to attach the second stand foot.
Higher level
Lower
Lower level
