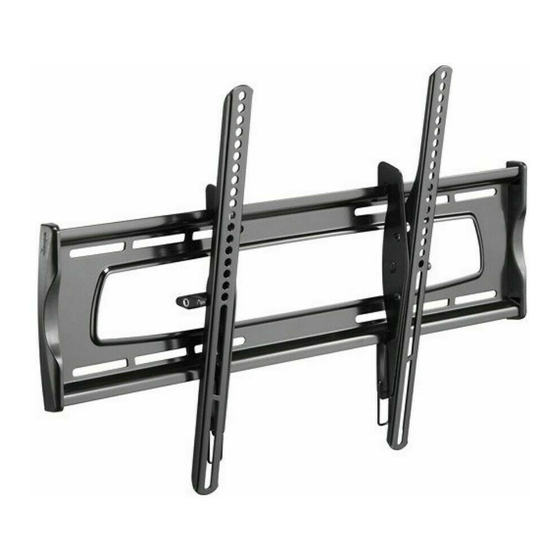

TV WALL MOUNT
RF-TVMLPT03V3
For wood-stud and concrete
wall installations
Before using your new product, please read these instructions to prevent any damage.
Safety information and specifications ......................2
Tools needed......................................................................3
Package contents .............................................................3
Installation instructions .................................................5
ASSEMBLY GUIDE
Advertisement
Table of Contents
Related Manuals for RocketFish RF-TVMLPT03V3
Summary of Contents for RocketFish RF-TVMLPT03V3
- Page 1 TV WALL MOUNT RF-TVMLPT03V3 Safety information and specifications ......2 Tools needed..............3 Package contents .............3 Installation instructions ..........5 For wood-stud and concrete wall installations ASSEMBLY GUIDE Before using your new product, please read these instructions to prevent any damage.
- Page 2 Customer Service or call a qualified contractor. Rocketfish is not responsible for damage or injury caused by incorrect installation or use. The weight of your TV must not exceed 130 lbs. (58.9 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.
-
Page 3: Tools Needed
TV WALL MOUNT RF-TVMLPT03V3 Tools needed You will need the following tools to assemble your new TV wall mount: Level Drill Pencil Edge-to-edge stud finder Phillips screwdriver Socket wrench with 7/32" (5.5 mm) wood drill bit Measuring tape 1/2" (13 mm) socket or... - Page 4 TV Hardware Bag Hardware Qty. Hardware Qty. M4 × 12 mm M8 × 20 mm screw screw M4 × 35 mm screw M4 washer M8 × 25 mm screw M6/M8 washer M8 × 35 mm screw 22 mm spacer M8 × 45 mm screw 2.5 mm spacer M6 ×...
-
Page 5: Installation Instructions
TV WALL MOUNT RF-TVMLPT03V3 Installation instructions STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 6 STEP 2 - Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
- Page 7 TV WALL MOUNT RF-TVMLPT03V3 STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back Align the holes you noted on the TV brackets (B and C) with the screw holes on the back of your TV. The brackets are marked “R” for the right bracket and “L” for the left bracket.
- Page 8 STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs Align the TV brackets (B and C) with the screw holes on the back of the TV. Place spacers (I or J) behind the TV brackets and the washers (G or H) over the holes in the TV bracket, then insert the screws (F, L, P, Q or R) through the washers, TV bracket, and spacers.
- Page 9 TV WALL MOUNT RF-TVMLPT03V3 STEP 4 - Determine wall-mount location Note: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen.
- Page 10 STEP 5 - Option 1: Installing on a wood stud wall Note: Drywall covering the wall must not exceed 5/8" (16 mm). Locate the stud. Verify the center of the stud with an edge-to-edge stud finder. Align the wall plate template (D) at the height you determined in the previous step and make sure that it is level.
- Page 11 TV WALL MOUNT RF-TVMLPT03V3 Note: Minimum wood stud size: Nominal 2 x 4 in. (51 x 102 mm). Center pencil mark Actual 1.5 x 3.5 in. (38 x 89 mm). made in Step 4. Des sus Par te sup erio...
- Page 12 STEP 5 - Option 2: Installing on a solid concrete or concrete block wall CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount wall plate directly onto the concrete surface. Align the wall plate template (D) at the height you determined in the previous step and make sure that it is level.
- Page 13 TV WALL MOUNT RF-TVMLPT03V3 Note: Minimum solid concrete thickness: 8 in (203 mm). Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm). 3 in. (75 mm) Des sus Par te sup erio Tool s...
- Page 14 STEP 6 - Attach your TV to the wall mount • Holding the TV with the top of the screen tilted toward the wall, slide the upper notches of the right and left TV brackets (B and C) over the upper lip of the wall plate (A).
- Page 15 TV WALL MOUNT RF-TVMLPT03V3 STEP 7 - Adjusting the tilt angle Adjust the swivel tension by hand or by using a 3/16" hex key (not included), then adjust the tilt angle by gripping the top and bottom of the TV and manually moving the TV to the angle you want.
- Page 16 Removing the TV from the wall mount • Pull the latches down to unlock the TV from the wall mount, then pull the bottom of the TV out from the wall and lift it up and off the wall plate. For customer service, call: 1-800-620-2790 (U.S.
-
Page 17: Lifetime Limited Warranty
Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. - Page 18 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Rocketfish to service the Product • Products sold “as is” or “with all faults”...
- Page 19 TV WALL MOUNT RF-TVMLPT03V3 REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
- Page 20 Part # 6907-302010 www.rocketfishproducts.com 1-800-620-2790 (U.S. and Canada) ROCKETFISH is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved.
