EAW SB184C Technical Specifications

APPLICATION
• For subwoofer channel of a cinema soundtrack
PRODUCT-INFORMATION

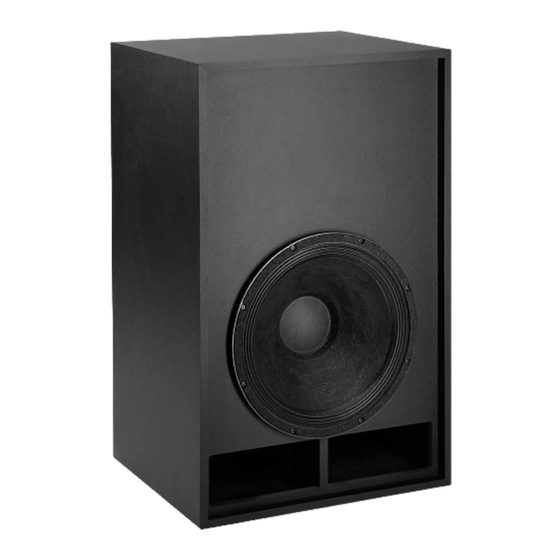

The SB184C cinema subwoofer loudspeaker system uses a high power
18-in cone transducer mounted in an optimally vented enclosure to
fill small to medium capacity theaters with high definition sub bass
information at earth-shaking output levels.
The SB184C's optimally vented enclosure uses enclosure resonance to
increase sub bass response while limiting driver excursion. This
method produces less distortion and minimizes driver strain while
extending sub bass response to the lower limits of human hearing.
Special effects will have greater clarity, greater power and greater
impact.
A two-terminal barrier-strip, which accommodates bare wire, tinned
leads or spade lugs, is located on the side of the enclosure for
convenient access in cramped installation areas.
The use of multiple SB184C's provides even greater output
capability and further extends low frequency response.
DESCRIPTIVE DATA
Part Number
Sub System & Loading
System Crossover
Recommended High-Pass
Frequency (24 dB/Octave)
Cabinet Type (shape)
Enclosure Materials
Finish
Connectors
Grille
Dimensions
Height
Width
Depth
Weights
Net Weight
Shipping Weight
TECHNICAL SPECIFICATIONS SB184C
999081
1x 18-in vented
300 Hz max
20 Hz
Rectangular
3/4-in Medium Density Fiberboard,
15 mm baltic birch baffle
Textured black
2-terminal barrier strip
Vinyl coated perforated steel
Inches Centimeters
39.5 100.3
24.5 62.2
21.00 53.3
Pounds Kilograms
95 43.2
105 47.8
CINEMA SYSTEMS
