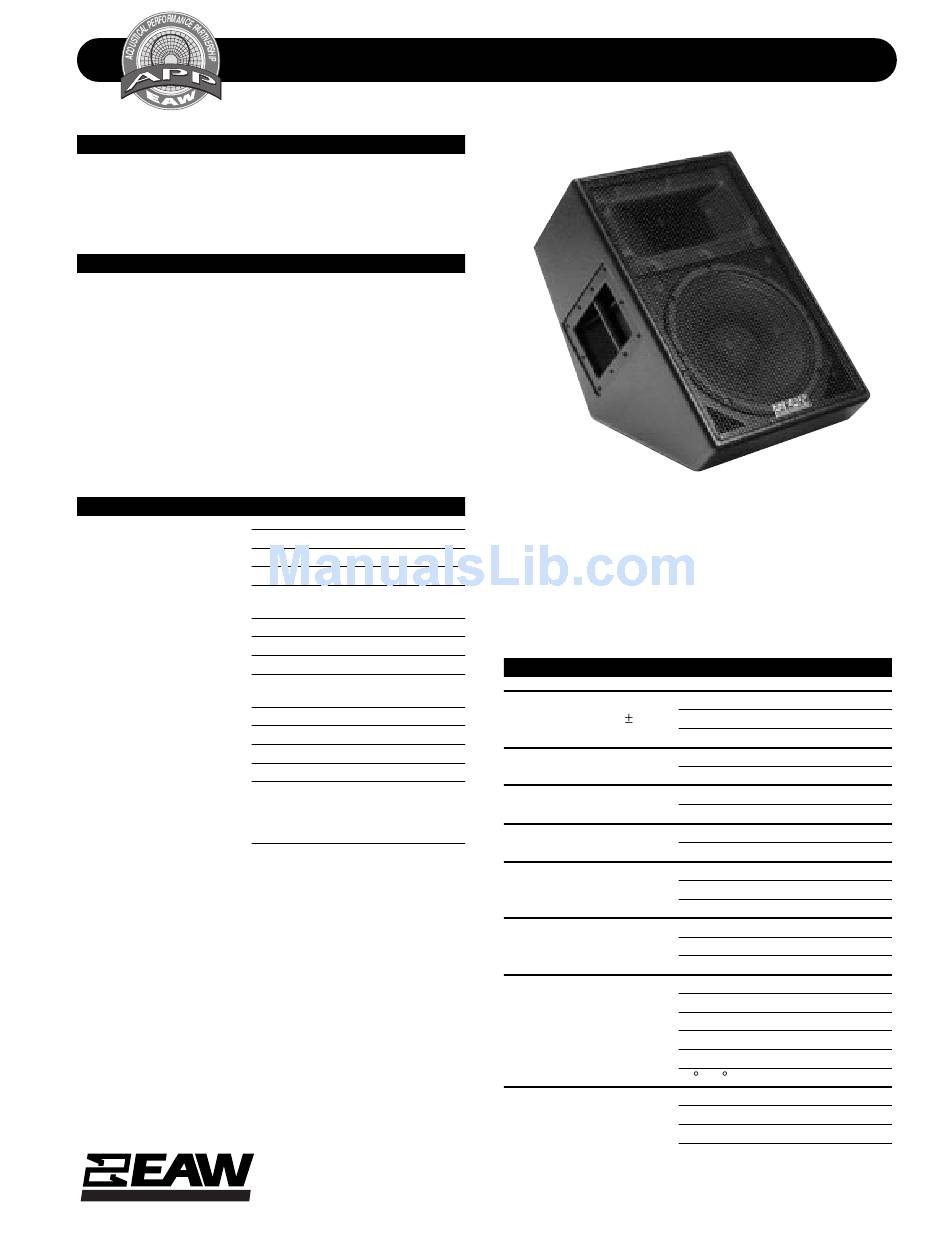

EAW SM122e Technical Specifications

DESCRIPTION

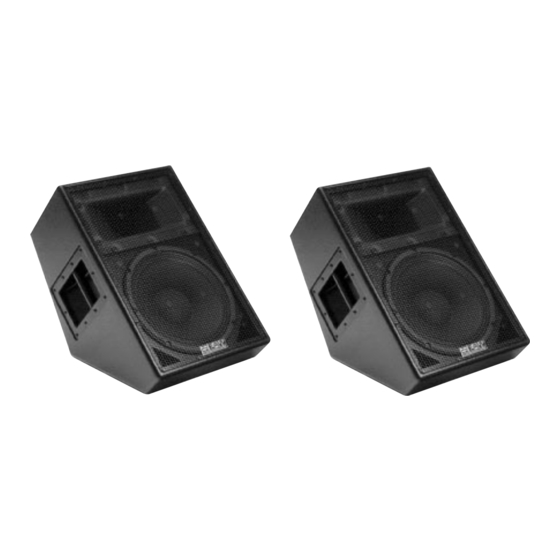

A 2-way passive full range system in a vented dual angle
stage monitor enclosure. Includes a 12-in woofer and a 1-in
exit compression driver on a 90 x 45 constant directivity
horn.
APPLICATIONS
The SM122e high output professional stage monitor offers
steep and shallow floor angles for placement options. Pres-
ence control helps eliminate feedback. Dual NL4 connectors
facilitate "daisy chaining" multiple monitors. Six Year War-
ranty.
Applications include:
Band PA
Corporate Events
Large Theaters
Large HOW's
Live Music Clubs
DESCRIPTIVE DATA
Part Number 999010
Product Group G
LF Subsystem & Loading 1x 12-in, Vented
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range Stage Monitor
Powering Mode Passive LF/HF Crossover
Controls (switches, knobs) Midrange Presence Control
Recommended High-Pass
Frequency (24 dB/Octave) 45Hz
Cabinet Type (shape) Irregular Pentagon, Stage Monitor
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (2) 5/16"-18 Threaded Mounting/
Suspension Points on top to accept
an external Ultimate Brand
standmount adapter
Grill Vinyl Coated Perforated Steel,
Foam Backed
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# SM122e-888101 (A)/2 pp/2/1/99 • Printed In USA
TECHNICAL SPECIFICATIONS SM122e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Minimum Stage Height
Weights
3 db 80Hz to 18kHz
-10 dB 65Hz
99
8
AES Standard 450
Peak 131.5
Long Term 125.5
Horizontal 90
Vertical 45
inches millimeters
Height 22.5 572
Width 14.75 375
Depth 12.5 318
14.5 368
Floor Angle(s) 45 /15
pounds kilograms
Net Weight 48 21.8
Shipping Weight 54 24.6
