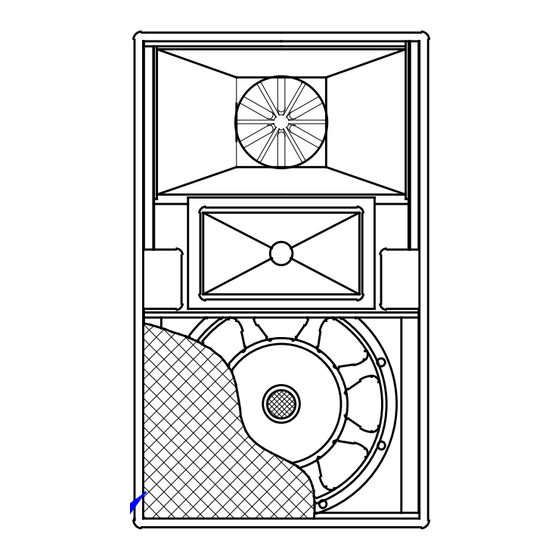

EAW KF650z 2D Dimensional Drawing

(12.81)
C L
12.25
5.94
14.25
20°
TOP

DIMENSIONS APPLY

TO TOP & BOTTOM
19.75
33.25
GRILLE PARTIALLY SHOWN
FRONT
KF650z
A
20.62

NOTES:

10.00
A
8.25
6.05
22.42
2X 8.75
14.58
VIEW A-A
DIMENSIONS APPLY
TO BOTH SIDES
1. SYMBOL INDICATES 3.00 X 1.35 FLYTRACK.
2. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (FLYTRACK).
3. SYMBOL INDICATES CENTER OF BALANCE.
4. WEIGHT APPROX. 130 LBS.
5. SHIPPING WEIGHT APPROX. 141 LBS.
2X 6.44
4X HANDLE
INPUT
28.98
28.98
2.13
2.13
PRODUCTION

ACCESS PANEL

C L
16.75

BACK

EASTERN ACOUSTIC WORKS
8.00
10.08
4.50
