EAW Dual 12-Inch Subwoofer AX122 Specification Sheet

A X 1 2 2 S p e c i f i c a t i o n s
DESCRIPTION

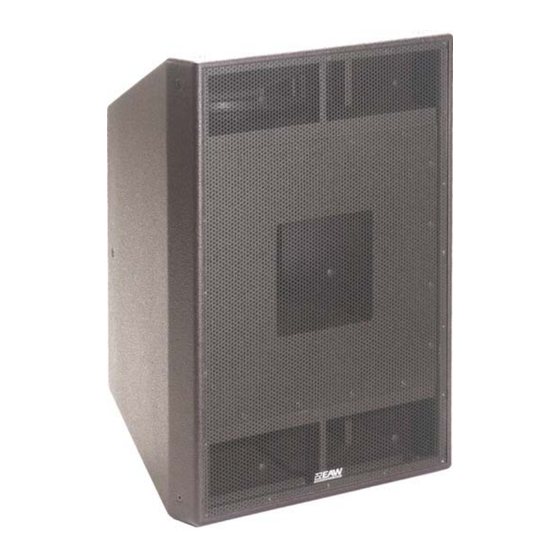

The AX122 is the companion subwoofer for the AX Series of full-
range loudspeakers. Designed to extend the low frequency
response of AX arrays to below 35 Hz, this compact subwoofer
features advanced, high power, 12 in drivers, producing an
exceptional amount of output for its size.
The AX122's drivers are mounted in a "clam shell" driver
arrangement. This provides tighter driver coupling to increase
output and improve impact. A massive port radiates the
considerable energy needed at the enclosure's tuning frequency
to complement the AX3 full-range loudspeakers.
The dual trapezoid enclosure is identical in size and shape to
that of other AX Series loudspeakers. In addition it has the same
3/8-16 threaded mounting points. This means the AX122 is
easily incorporated into AX arrays, both physically and
aesthetically.
The barrier strip input connector for the AX122 has a second set
of "loop thru" terminals for connecting an additional AX122.
Six year warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
DUAL 12-INCH SUBWOOFER
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer
Sub
2x 12 in cone
Operating Mode
Amplifier Channels
Single-amp Sub
1
PERFORMANCE
Operating Range 34 Hz to 128 Hz
Nominal Beamwidth
Horz 360°
Vert 360°
Axial Sensitivity (whole space SPL)
Sub 96 dB
Input Impedance (ohms)
Nominal
Sub 4
High Pass Filter
High Pass =>31.5 Hz, 24 dB/octave Butterworth
2
Accelerated Life Test
Sub 75 V
Calculated Axial Output Limit (whole space SPL)
Average
Sub 127 dB
ORDERING DATA
Description
AX122 Subwoofer Black
AX122 Subwoofer White
AX122 Subwoofer Black WP
Optional Accessories
Eyebolt/Forged Shoulder (3/8-16 x 1.25 in)
group · I
Loading
Vented
External Signal Processing
DSP w/1-way filter
34 Hz to 128 Hz
Minimum
4.8 @ 128 Hz
1400 W @ 4 ohm
Peak
133 dB
Part Number
0011342
0011583
0011581
104001
Part Number: RD0190 (B) AX122 April 2005
