EAW BH760 Specifications

FEATURES
• Horn-loaded for efficiency and high output
• Companion to KF760 Series Line Array
• Sized for efficient truck packing
• Response to 29 Hz to capture lowest
musical notes
• Enclosure pads nest together for stacking ability
DESCRIPTION

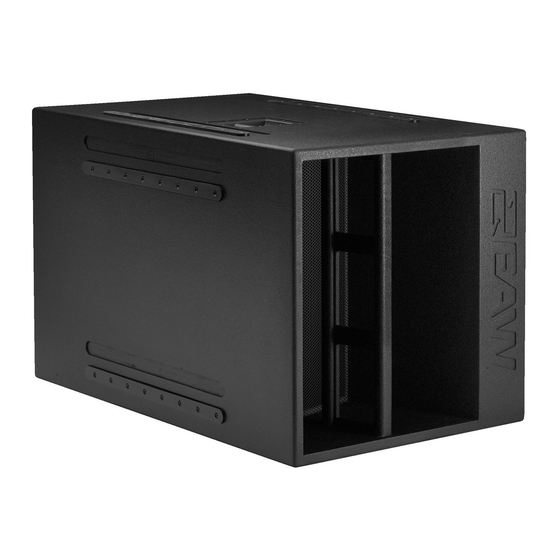

The BH760 bent horn subwoofer is engineered as both a com-
plement to the KF760 Series Line Array loudspeaker systems
and as a bass supplement to any audio system. BH760s pro-
vide extremely high levels of tight, punchy bass response to
the lowest octave. Its balanced horn design allows it to be
used singly or in multiples. The horns of multiple enclosures
couple acoustically to create a single, larger horn that
increases output and provides directivity to very low frequen-
cies. Optimum performance is achieved when used in arrays of
four or more enclosures.
The enclosure features a system of interlocking pads and
grooves to facilitate stable ground stacks. Compact dimen-
sions, well-placed handles and an optional caster pallet
enhance portability. At 45-in deep, the enclosures pack uni-
formly with the KF760 Series loudspeakers as well as standard
width road cases. Six year warranty.
APPLICATIONS
Applications include:
• Concert Touring • Club Systems
• Large Nightclubs • Arenas
PERFORMANCE
Frequency Response
+3 dB 29 Hz to 100 Hz
-10 dB 25 Hz
Axial Sensitivity (dB SPL, 1 watt @ 1m)
Nominal Impedance (ohms)
Power Handling (watts, continuous)
With 25 Hz, 12 dB/octave,
Butterworth high pass filter 1600
Without high pass filter 1000
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
107
4 (2x 8)
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS BH760
Recommended High-Pass Frequency
12 dB/octave Butterworth
Calculated Maximum Output (dB SPL)
Peak
Long Term
PHYSICAL
Subsystem 2x 12-in woofers, bent horn
System Configuration Sub bass
Finish Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Grille Powder coated perforated steel
Dimensions
Height 30
Width 30
Depth 45
Weights
Net Weight 253
Shipping Weight 273
FAX 508 234 8251
BH760/0002916/2 pp
25 Hz
145
139
inches millimeters
762
762
1143
pounds kilograms
115
125
info@eaw.com www.eaw.com
April 2002 Printed in USA
