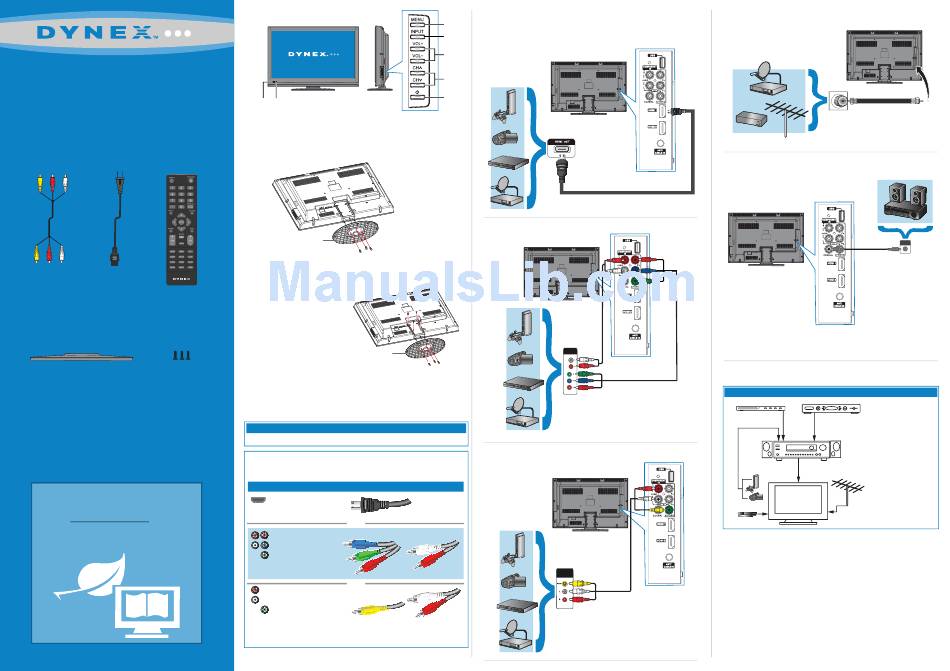

Dynex DX-32L200A12 Quick Setup Manual

32" LCD TV

QUICK SETUP GUIDE

DX-32L200A12
Composite AC power cord
cable
Remote control and
two AAA batteries
TV stand Three screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, then click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Front features
Remote Power
control sensor indicator
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Align the stand to the TV and secure it to the stand column with the three
screws provided.
Stand
M5 screws
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the screws that secure the
stand to the stand column, then
remove the stand.
3 Remove the screws that secure
the stand column to your TV, then
remove the column.
4 Attach the wall-mount bracket to
your TV using the mounting holes on
Stand
the back of your TV. See the instructions
that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
Menu
satellite receiver, or game station
Input
Using HDMI (best)
Volume
+/-
Channel
▼/▲
Power
button
Using component cables (better)
COMPONENT
OUT
M5 screws
Note: The COMPONENT IN jacks share
the audio jacks with the AV IN VIDEO
jack. Cables are often color-coded to
match color-coded jacks.
Using composite cables (good)
AUDIO/VIDEO
OUT
Note: The AV IN VIDEO jack shares the
audio jacks with the COMPONENT IN
jacks. Connect red to red, white to white,
and green to yellow.
Connecting an antenna/cable wall jack
Connecting a Home Theater System
Connecting a home theater system with multiple devices
Cable or satellite TV box
Blu-ray player/DVD player/VCR
AV receiver
We recommend that you connect
the AV receiver's HDMI OUT jack
to your TV's HDMI IN jack.
Game console
or camera
USB flash drive
Antenna or
cable TV
(no box)
COAXIAL IN
