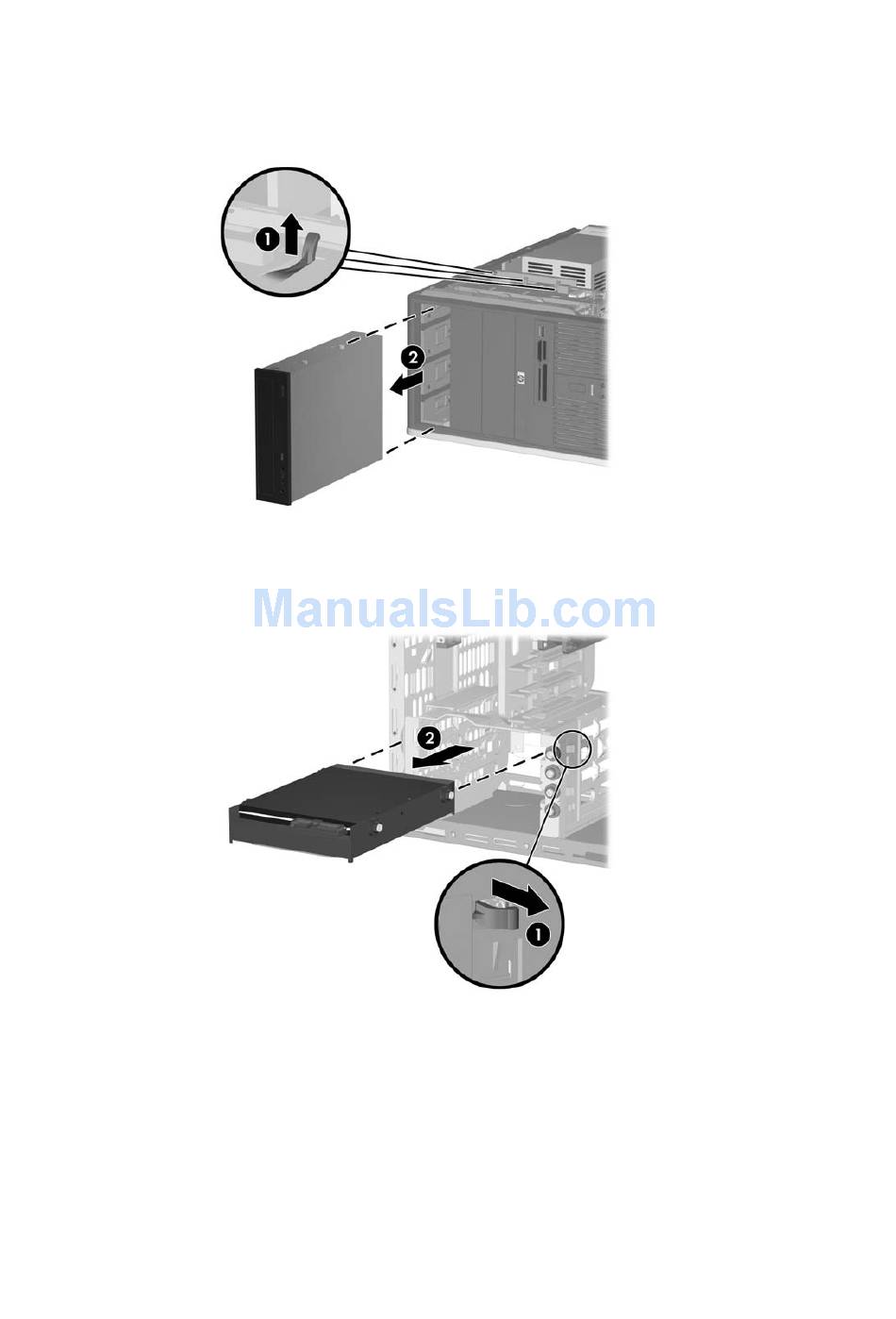

To remove a 3.5-inch drive or a 5.25-inch drive in the minitower configuration, pull up on the

green drivelock mechanism (1) for that specific drive and slide the drive from the drive bay

(2).

Figure 2-17

(Optical Drive shown)

●

To remove a hard drive from and internal 3.5-inch drive bay, pull up on the green hard drive

drivelock mechanism (1) for that drive and slide the drive from the drive bay (2).

Figure 2-18

Store the removed drive in anti-static packaging.

Chapter 2 Hardware Upgrades

Removing a 3.5-inch Drive or a 5.25-inch Drive in the Minitower Configuration

Removing a Hard Drive

ENWW
