DX-GB8PRT

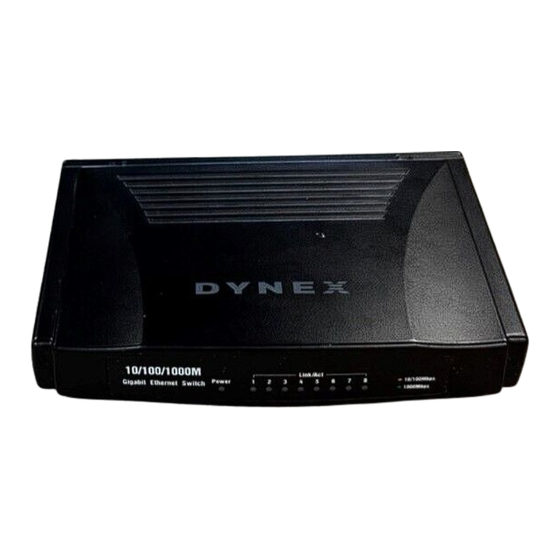

8-Port Gigabit Ethernet Switch
QUICK SETUP GUIDE
1:05:26 PM 1:05:26 PM
Congratulations on your purchase of the DX-GB8PRT Dynex 8-Port
Gigabit Ethernet Switch. The DX-GB8PRT provides increased speed and
backbone connections to make Gigabyte a reality.
Safety Notices
• Do not use this product near water, for example, in a wet basement
or near a swimming pool.
• Avoid using this product during an electrical storm. There may be a
remote risk of electric shock from lightning.
• Do not place heavy objects on the switch.
• Allow room for adequate ventilation.
Package contents
• DX-GB8PRT Dynex 8-Port Gigabit Ethernet Switch
• Quick Setup Guide
Features
• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p
standards
• Eight 10/100/1000M RJ45 ports
• Supports IEEE 802.1p QoS
• Support Green Ethernet technology to implement power saving
features. (In Low Power Idle mode, up to 66.22% of the power can be
saved.)
• Supports IEEE 802.3x flow control for full-duplex mode and
backpressure for half-duplex mode
• Non-blocking switching architecture that forwards and filters
packets at full wire-speed for maximum throughput
• 8K entry MAC address table of the DX-GB8PRT with auto-learning
and auto-aging
• Supports for Jumbo frames of up to 15 KB
• LED indicators for monitoring power, link, and activity
Components
Front panel
Power LED
Back panel
Power port
V1
FINAL
FOR PRINT
Installing the switch
1 Connect the power adapter to the switch and power outlet.
2 Connect the PC(s) and other device(s) to the switch.
3 Connect the switch to the Internet.
Internet
4 Install complete connection.
Internet
LED indicators
When the switch is plugged in and receiving power, the LED indicators
respond as follows:
LED
Power
Link/Act
Ports 1-8
LEDs 1-8
Ports 1-8
Power cord
Power
Switch
outlet
PC Switch
Internet
Modem Router
Switch
Router
Modem
Status Indication
On (green) Power on
Off No device is connected to the corresponding port.
On (orange) A 10/100 Mbps device is connected to the corresponding port.
Flashing (orange) A 10/100 Mbps device is transmitting or receiving data
through the corresponding port.
On (green) A 1000Mbps device is connected to the corresponding port.
Flashing (green) A 1000Mbps device is transmitting or receiving data through
the corresponding port.
Network
storage
Switch
Network
storage
PC
