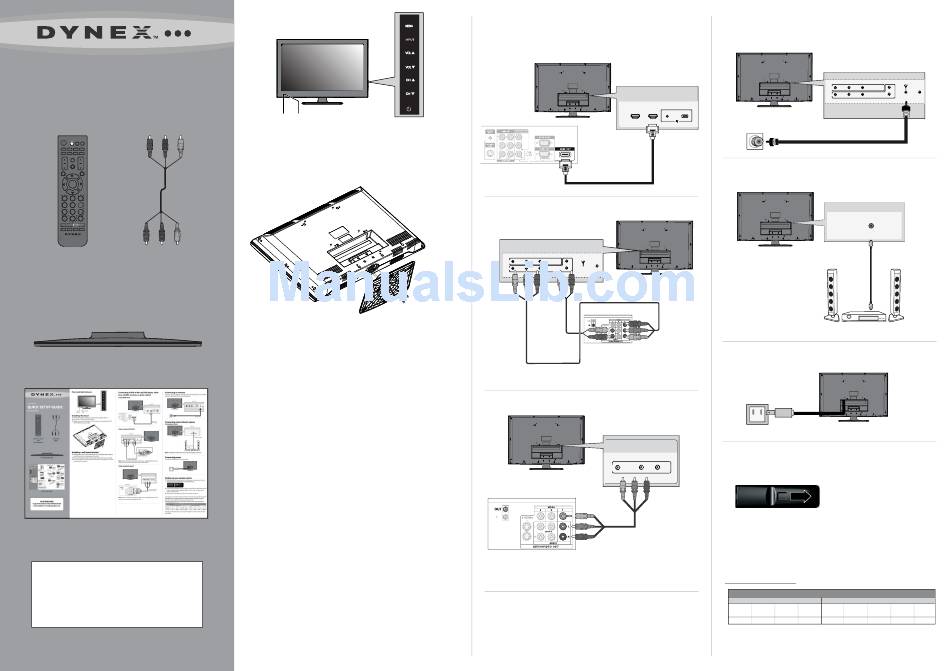

Dynex DX-32L152A11 Quick Setup Manual

32" LCD TV

QUICK SETUP GUIDE

DX-32L152A11
TV INPUT
VIDEO COMP HDMI VGA
ZOOM GUIDE PICTURE AUDIO
INFO
VOL CH
MUTE
MENU EXIT
ENTER
1 2 3
4 5 6
7 8 9
0
RECALL
CCD MTS/SAP SLEEP TIME
EN-31203B
Remote control Composite
and cable
2 AAA batteries
TV stand and screws
Quick Setup Guide
WE ARE GOING GREEN!
A copy of the manual is not provided in the box
but is avalaible at www.dynexproducts.com
Front and side features
Power Remote control
indicator sensor
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Lay the TV on a flat, cushioned surface.
3 Align the base with the bottom of the TV, then secure the base to the TV
with the three screws provided.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the pedestal stand. See "Removing the stand" in your User Guide.
3 Secure the wall-mount bracket to the back of your TV using the four screws
provided with the bracket.
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver, or game station
Using HDMI (best)
Back of TV
PC/DVI AUDIO IN VGA
HDMI2 HDMI 1
HDMI device
HDMI cable
(not included)
Using component (better)
Back of TV
AV VIDEO L R L
R
COMP Y P b Pr
ANT/CABLE IN DIGITAL
AUDIO OUT
Component video device
Component video cable
Note: Cable connectors and jacks are often color-coded. Match the colors
when you connect the component video and AV cables.
Using composite (good)
VIDEO L R
AV
Video device
N
Composite audio/video
cable (not included)
Note: Cable connectors and jacks are often color-coded. Match the colors
when you connect the composite AV cable.
Connecting an antenna
Connect a 75 ohm cable (not included) to the ANT/CABLE IN jack on the back
of your TV and the RF OUT jack on the antenna.
Back of TV
VIDEO L R
AV L
R
COMP Y P Pr
b ANT/CABLE IN
Antenna cable
Connecting a home theater system
Using digital audio:
Back of TV
DIGITAL AUDIO
OUT
Digital coaxial cable
Home theater
system
Note: The DIGITAL OUTPUT jack only works with digital TV channels.
Connecting power
Connect the power cable to a power outlet.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover off the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3 Replace the cover. Make sure that the lock snaps into place.
To program your existing remote control to work with your Dynex TV, see the
table below for common codes. If you have problems programming your
remote, or need a different remote control code, visit
www.dynexproducts.com for the latest remote control code information.
Universal remote control TV codes
(for all Dynex TVs manufactured after Jan. 1, 2007)
Universal remote control makers and models Set-top box makers and models
Philips
RCA One for All Sony Comcast Dish Network Motorola TIVO
PHDVD5, PH5DSS,
RCU807 URC-6690 RM-VL600 M1057 VIP508, VIP622 DRC800 Series 3, HD
PMDVR8, PDVR8
115 135 0464 8043 0463 720 0463 0091
For step-by-step instructions on programming the remote control, see your
User Guide.
DIGITAL
AUDIO OUT
DirectTV
RC23
10463
