HP 2230s - Compaq Business Notebook Software Installation Manual page 4

Installing uefi-based microsoft windows vista sp1 (x64) on hp elitebook and compaq notebook pcs

Hide thumbs Also See for 2230s - Compaq Business Notebook:

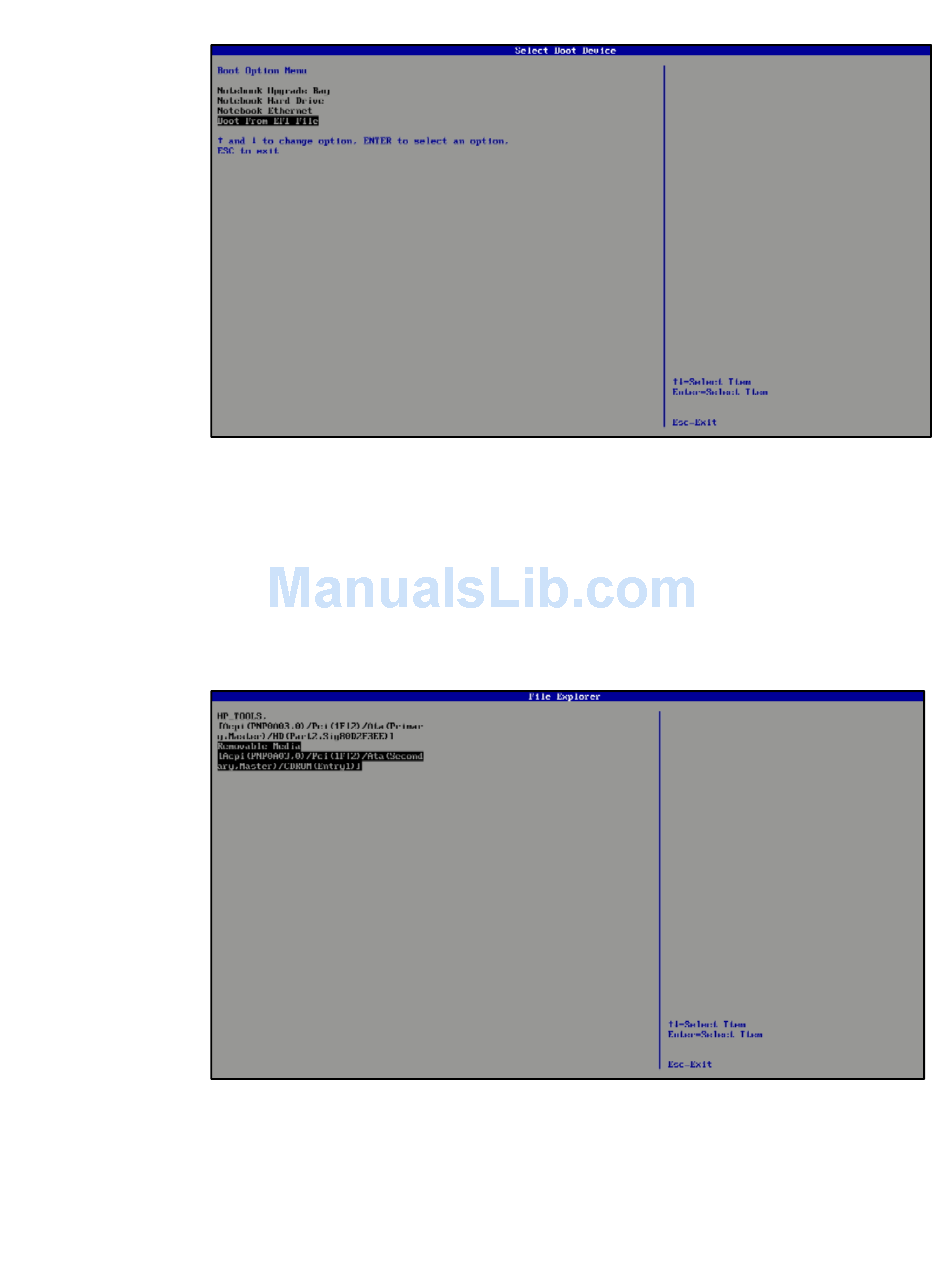

Figure 4: Screenshot of the F9 Menu. The "Windows Boot Manage" boot option will not

be listed if this is the first time installing UEFI-based Windows Vista SP1

The initial File Explorer menu lists available storage devices including a "Primary

Master" hard disk, if the hard disk is formatted, and an entry for Removable Media

for the "CDROM", if the installation media is inserted into the CD/DVD reader.

Select the CDROM entry (one that has the Removable Media type with the CDROM

(Entry1) as the last portion of the device path shown). See Figure 5. If the hard disk

has never been formatted, the CDROM entry should be the only one shown.

Figure 5: Screenshot after selecting "Boot from EFI File"
