Gecko Aeware Advanced in.k600 Quick Reference Card

Operation Mode Operation Mode Menu title
Information
Display
Time, temperature
& message digits
Progress bar icon
Status icons
Main Functions
• Start Pump 1 Start Start Pump 1
• Start Pump2
• Start Light
• Starting Blower
• Economy Mode
This menu allows control of all pumps, blower and spa light, as well as the
• Standby Mode
activation of the Economy and Standby modes. Every time a device is on,
• Display Time
its animated icon is displayed. All pump activity can be stopped at once by
• Progress Bars activating the Standby mode.
Starting Light
• Select Light key to turn light on.
• Select Light key again to turn
light off.
(120 minute built-in timer)
Starting Blower
• Select Blower to turn Blower on. Blower Blower to turn Blower on.
• Select Blower once more to turn
blower off. lower lower off.
(20 minute built-in timer)
Quick Reference Card
Please consult your spa user manual for complete info on Please consult your spa user manual for complete info on the features of your spa system.
AM/PM (˚F/ ˚C)
Light icons Light icons Light
Pump
icons
Lock Lock icon Lock icon Service icon
Standby mode. Standby
Starting Pump 1
• Select Pump 1 to turn Pump 1 on.
• Select Pump 1 repeatdely to control repeatdely repeatdely to control
pump 1 speeds.
(20 minute built-in timer)
Turning Economy on
Lowers the temperature set point of
the spa by 20˚F (11˚C).
• Select Economy to activate the
Economy mode.
• Select Economy again to override
economy programming (see spa
setup section)
in.k600

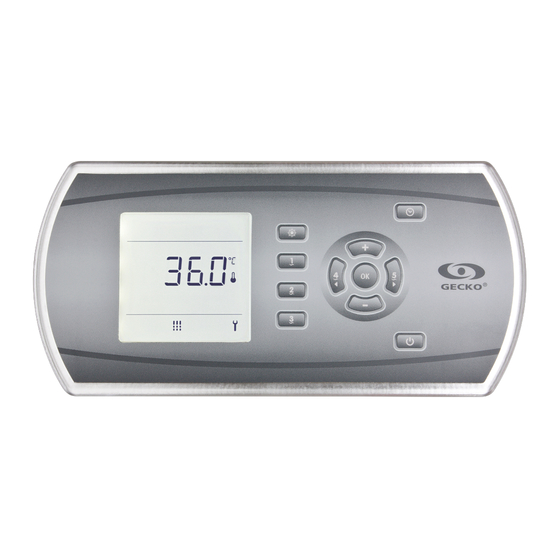

Advanced series of full-function keypads that give
complete control to wet fi ngers!
Aeware's new series of keypads ries of keypads ries of features a high profi le with a large LCD display,
menu-driven interface and raised keys that let users easily control all in.xm functions
and programming directly from spa side, creating a true and unique user experience.
"Soft" Key 1,
2, 3, 4
"Left" Multifunction Key
goes back to previous
parameter setting or
increases parameter value
• Press Mode key key to display the to display the • Select Spa to view Spa menu.
mode Selection window.
Starting Pump 2 Starting Pump 3
• Select Pump 2 to turn Pump 2 on. • Select Pump 3 to turn Pump 3 on.
• Select Pump 2 once more to turn • Select Pump 3 once more to turn
pump 2 off. pump 3 off.
(20 minute built-in timer) (20 minute built-in timer)
Displaying time
Standby Mode
Stops all pumps at the same time by a • Press Ok key to display the time.
simple click of a button! • Press Ok key a second time Ok Ok key a second time
back to water temperature display.
• Select Standby to activate
this mode.
• Select Standby to again to resume
normal operations.
System automatically returns to
Normal mode after a certain period
of time, unless the Standby mode has
been reactivated.
Spa light will fl ash for a few seconds
before the exit of Standby mode and
restart the pumps. The "Standby"
message is also displayed during
Standby mode.
* Pump will stay turned on if there is a
request for more heat.
"Plus" Key increases
"Ok" Key parameter setting
"Minus" Key "Next" Key goes to
decreases par- menu page
ameter setting
Spa to view Spa menu. Spa
Next menu page
• Press Next key to display the next
page in the spa menu.
Goes to blower option
Viewing active progress bars
A progress bar is a visual indicator of
to go the time remaining before a device
is turn off or before the end of the
Standby mode. Only one bar is
displayed at the time.
• Use Left or Left Left or Right Right keys to visualize Right keys to visualize
the progress bar of each activa-
ted device.
"Mode" Key
selects mode of
operation: Spa,
Audio, Options Audio, Options
"Right" "Right"
Multi- Multi-
function function
Key Key
