Hunter 21327 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 2
x 4
x 2
x 4
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 11
x 3
3" Wood Screw
1.5" Wood Screw
Hanger
Flat Washer
Bracket
Assembly
Locking Screw
Canopy Screw
Mounting Isolator
Blade
Assembly
Screw, Blade
Iron Armature
Blade Grommet
Screw, Blade
Assembly
Screw, Switch
Switch
Housing Assembly
Housing
Assembly
Thumbscrew
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)

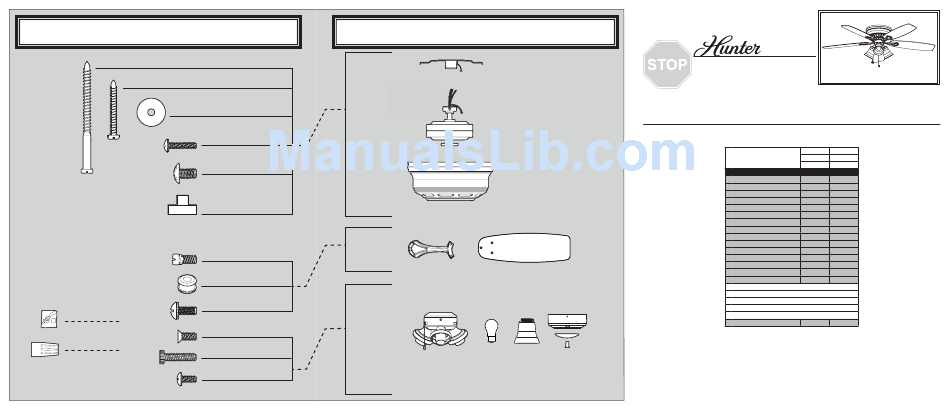

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. #
Finish
Item Name Qnty
Ceiling Plate 1
Canopy Screw 4
Locking Screw 2
Wood Screw 2
Wood Screw 2
Flat Washer 4
Mounting Isolator 4
Light Kit Assembly 1
Thumbscrew 11
Globe/Shade 3
Light bulb / Bulb 3
Blade Iron Set 1
Blade Set 1
Screw, Blade Iron Armature 11
Hardware Kit 1
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com •
21327
99115-01
White
Part #
73862-01
74508-37
74508-36
06512-01
03144-03
06301-01
63731-01
99120-03
03077-08
84884-09
75005-02
92805-05
76697-64
63755-05
99115-00-860
07570-01
98000-01-959 11-10-2008 • 2008
©
