PRODUCT MODEL NUMBERS

DWL2825

DWL3025

DWL3525

DWL4035

DWL7075

Electrical: A 115 Volt, 60 Hz., AC only

15 or 20 amp fused, grounded electrical

supply is required. It is recommended that a

separate circuit serving only your

dishwasher be provided. Use a circuit that

cannot be turned off by a switch. Do not use

an extension cord.

Water Supply: A hot water supply with

water pressure of between 30 and 120 psi

(207 - 827 kPa) is required to operate

dishwasher. Inlet water temperature of 120˚

(49˚C) at dishwasher is recommended. If you

have questions about your water pressure,

call a licensed, qualified plumber.

Drain: Drain connection must be within 12 ft

(370cm) of unit, with a minimum height of 20

(50cm) inches from floor.

Because Haier America policy includes a continuous commitment to improve, dimensions are for planning purposes only. For complete details, see Installation our products,

we reserve the right to change materials and specifications without notice. Instructions packed with product. Specifications subject to change without notice.

Dishwasher

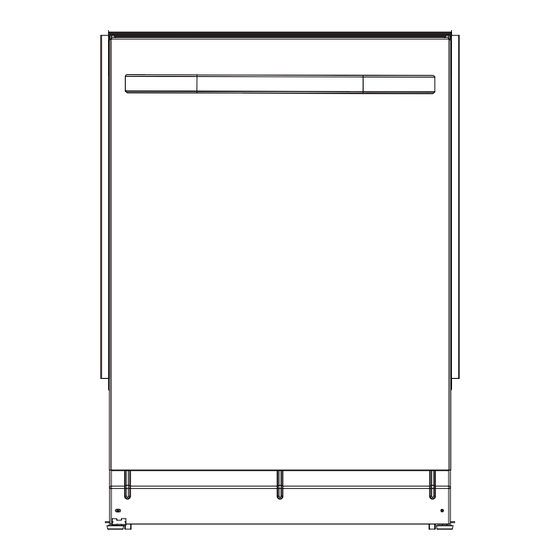

OVERALL DIMENSIONS

Note: Not all models have pull handle.

CABINET OPENING DIMENSIONS

23-13/16"

(60.5cm)

49-3/4"

(126.5cm)

27-3/16"

(69.0cm)

24-1/2"

(62.5cm)
