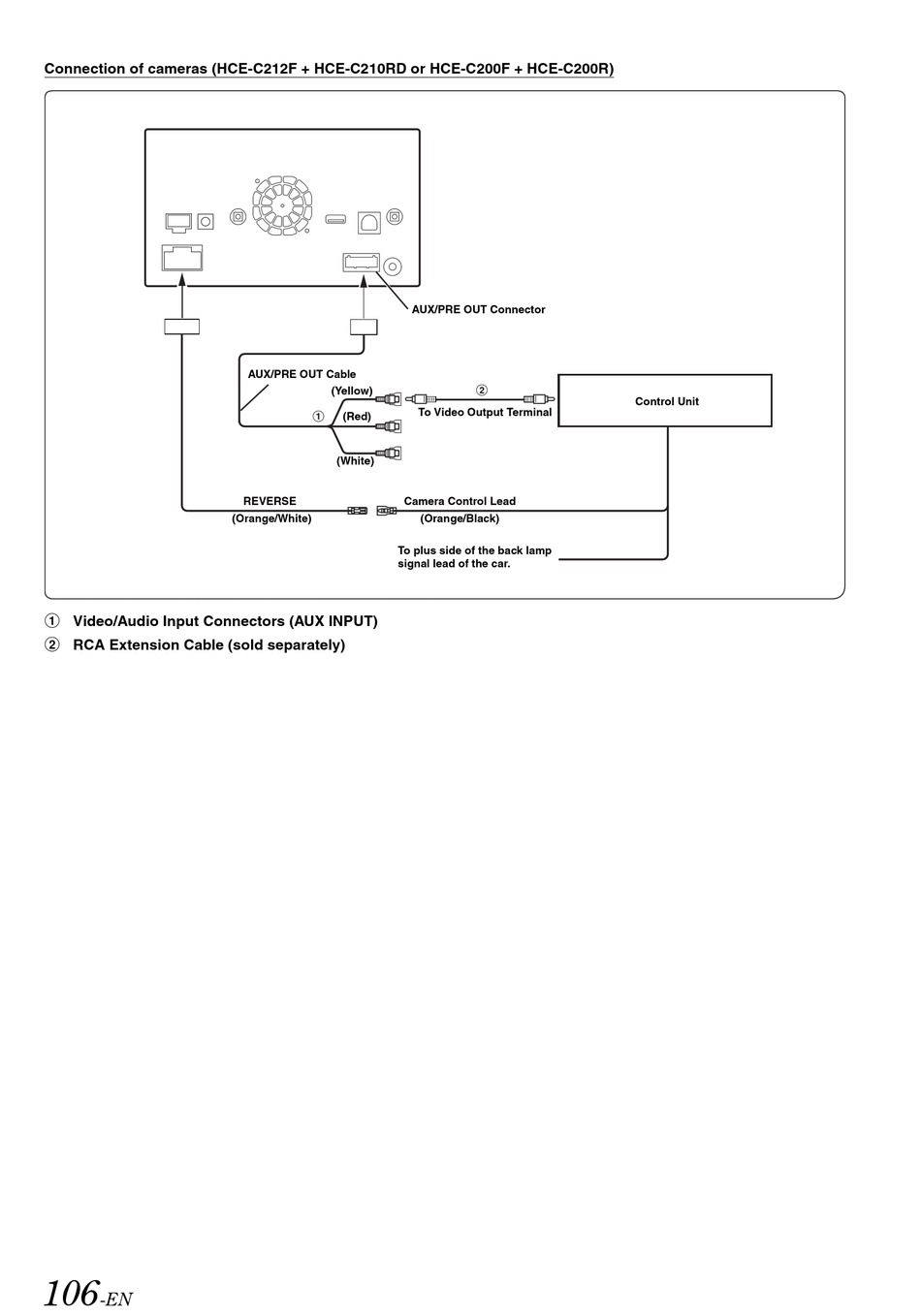

Connection of cameras (HCE-C212F + HCE-C210RD or HCE-C200F + HCE-C200R)
1 Video/Audio Input Connectors (AUX INPUT)
2 RCA Extension Cable (sold separately)
106
-EN
AUX/PRE OUT Cable
(Yellow)
(Red)
(White)
REVERSE
Camera Control Lead
(Orange/White)
To plus side of the back lamp
signal lead of the car.
AUX/PRE OUT Connector
To Video Output Terminal
(Orange/Black)
Control Unit
