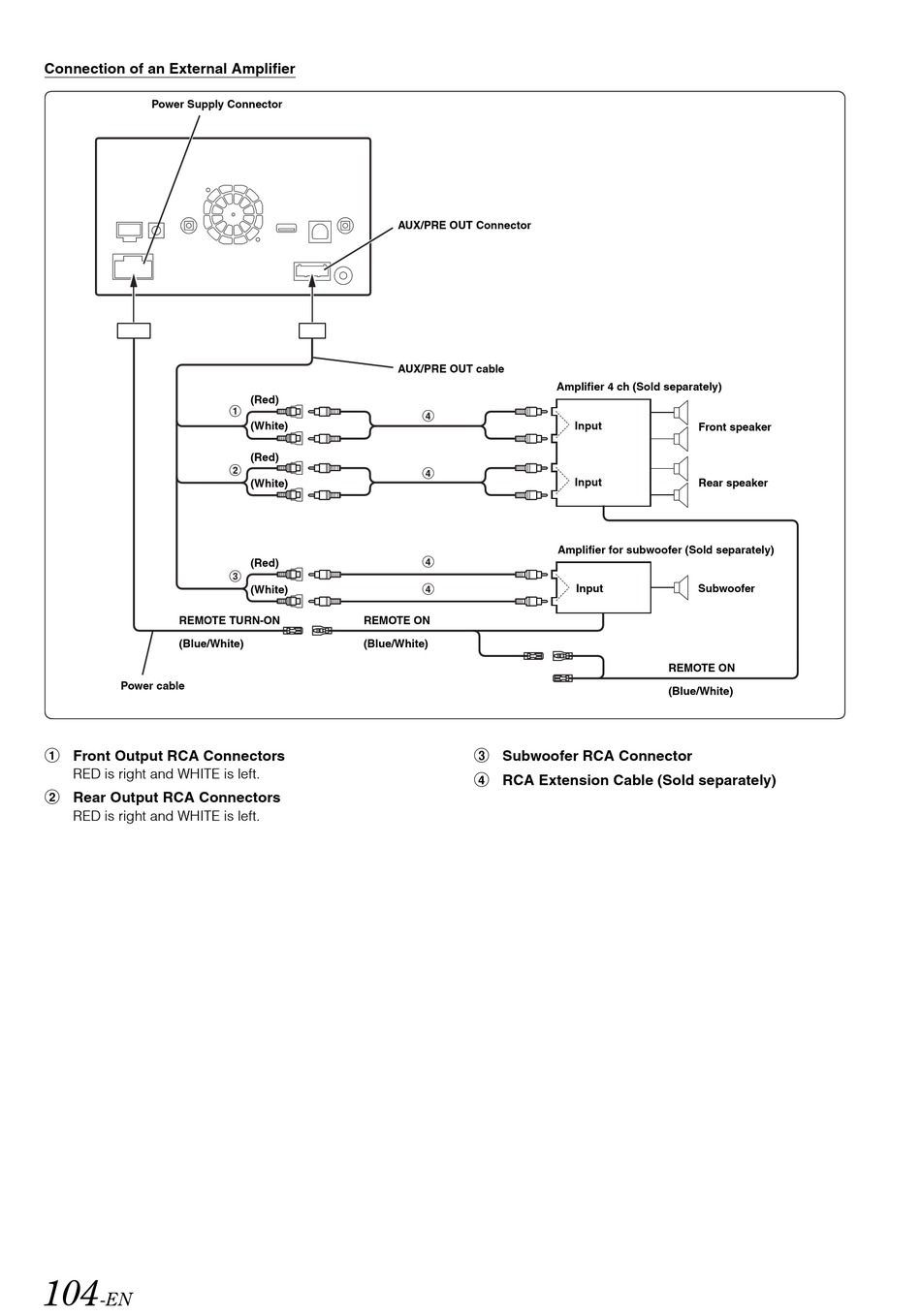

Connection of an External Amplifier
Power Supply Connector
REMOTE TURN-ON
(Blue/White)
Power cable
1 Front Output RCA Connectors
RED is right and WHITE is left.
2 Rear Output RCA Connectors
RED is right and WHITE is left.
104
-EN
AUX/PRE OUT Connector
AUX/PRE OUT cable
(Red)
(White)
(Red)
(White)
(Red)
(White)
REMOTE ON
(Blue/White)
Amplifier 4 ch (Sold separately)
Input
Input
Amplifier for subwoofer (Sold separately)
Input
3 Subwoofer RCA Connector
4 RCA Extension Cable (Sold separately)
Front speaker
Rear speaker
Subwoofer
REMOTE ON
(Blue/White)
